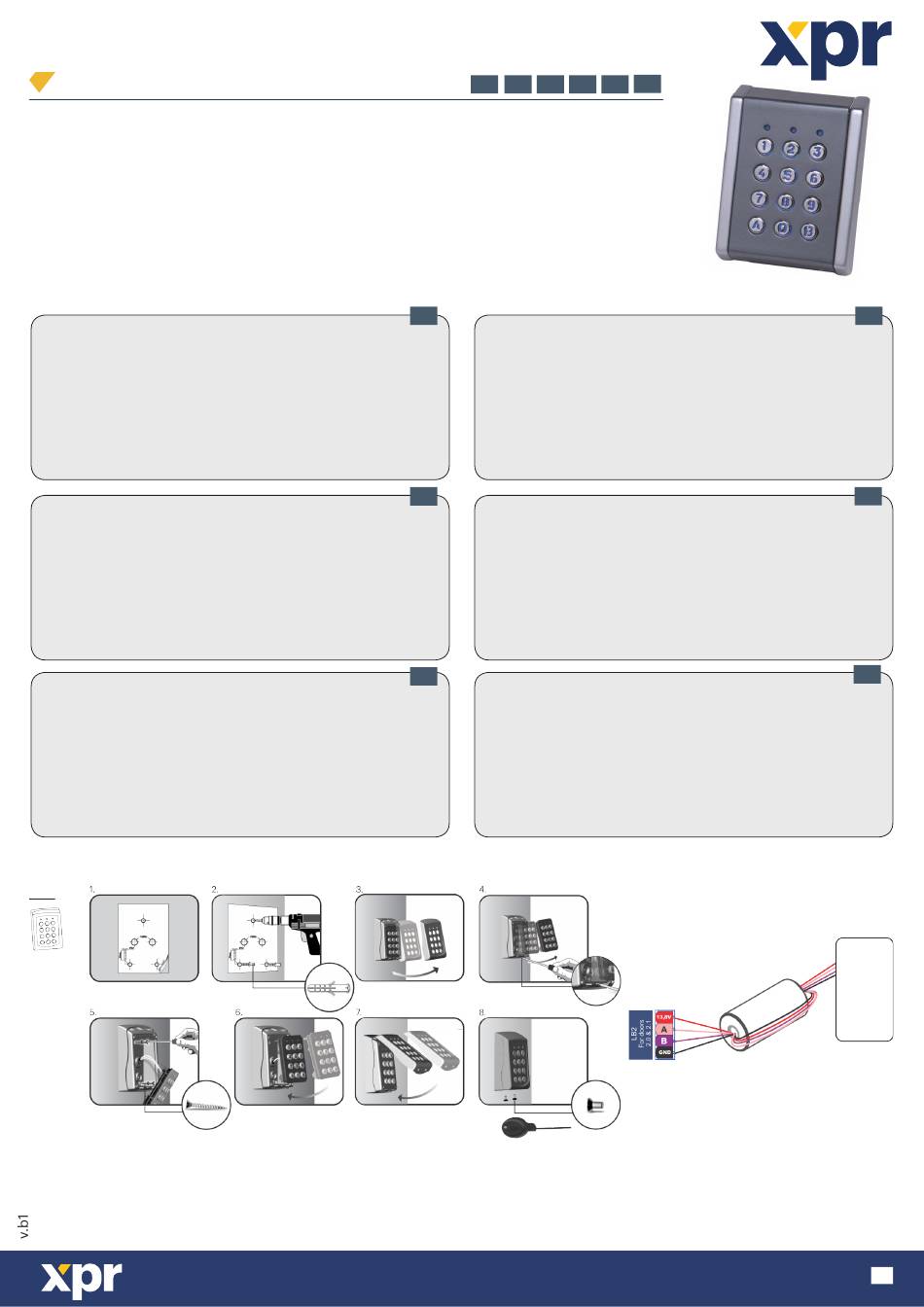

LCS-RS
SPECIFICATIONS/ SPECIFICATIONS/ SPECIFICATIONS/ SPECIFICATIONS/ SPECIFICATIONS/ SPECIFICATIONS
- Technology: Keypad
- PIN Code length: 4 to 8 digits (with or without fixed
length)
- Output: RS-485
- LED, TAMPER AND BUZZER managed by the host
- Operates on 9 - 14 VDC, 40mA
- IP65
- Compatibility: WS4 access controller
- Distance reader to controller: 80 meters
- Tecnologia: tastierino
- Lunghezza codice PIN: da 4 a 8 cifre (con/senza lung. fissa)
- Uscita: RS-485
- LED, funzioni manomissione e segnale acustico gestiti
dall'host
- Alimentazione 9 - 14 VCC, 40 mA
- IP65
- Compatibilità: controller accessi WS4
- Distanza tra lettore e controller: 80 metri
- Technologie: Tastatur
- PIN-Code-Länge: 4 bis 8 Ziffern (mit/ohne vorgegebener
Länge)
- Ausgang: RS-485
- LED-, Sabotageschutz- und Summerkonfiguration über Host
- Spannungsversorgung: 9 - 14 VDC, 40 mA
- IP 65
- Kompatibilität: WS4-Zutrittscontroller
- Abstand zwischen Leser und Controller: 80 m
MOUNTING/ MONTAGE/ INSTALLAZIONE/ MONTAJE/ MONTAGE/ MONTAGE
43B
3 (4 x 30 mm CSK)
USER'S MANUAL
EN
IT
DE
5 mm
www.xprgroup.com
IT ES DE NL
EN
FR
RS-485 Keypad
- Technologie : clavier
- Longueur de code PIN : 4 à 8 chiffres (avec/sans longueur
fixe)
- Sortie : RS-485
- LED, anti-sabotage et avertisseur sonore gérés par l'hôte
- Fonctionnement sur 9 - 14 VDC, 40 mA
- IP65
- Compatibilité : contrôleur d'accès WS4
- Distance entre lecteur et contrôleur : 80 mètres
- Tecnología: teclado
- Longitud del código PIN: de 4 a 8 dígitos (con/sin
longitud fija)
- Salida: RS-485
- LED, control manual y timbre gestionados por el host
- Funciona con 9 - 14 V CC, 40 mA
- IP65
- Compatibilidad: controlador de acceso WS4
- Distancia del lector al controlador: 80 metros
- Technologie: Toetsenbord
- Lengte pincode: 4 tot 8 tekens (met/zonder vaste lengte)
- Uitgang: RS-485
- LED, sabotageschakelaar (tamper) en zoemer aangestuurd
door de host
- Werkt op 9 - 14 VDC, 40 mA
- IP65
- Compatibiliteit: WS4 toegangscontroller
- Afstand tussen lezer en controller: 80 meter
Bus for
the readers
2 (M3 x 6mm)
security screw
Ferrite Core
Wrap the wires around the ferrite core (1 turn).
The ferrite core is provided with the kit and it is
used to reduce the EMI.
FR
ES
NL
Reader
1
Werbung
Inhaltszusammenfassung für xpr LCS-RS
- Seite 1 LCS-RS IT ES DE NL RS-485 Keypad USER’S MANUAL SPECIFICATIONS/ SPECIFICATIONS/ SPECIFICATIONS/ SPECIFICATIONS/ SPECIFICATIONS/ SPECIFICATIONS - Technology: Keypad - Technologie : clavier - PIN Code length: 4 to 8 digits (with or without fixed - Longueur de code PIN : 4 à 8 chiffres (avec/sans longueur...
- Seite 2 3 (4 x 30 mm CSK) 2 (M3 x 6mm) 103A 103B 103G 4 (M3 x 6mm) 3 (4 x 30 mm CSK) 3 (4 x 30 mm CSK) WIRING/ CÂBLAGE/ CABLAGGIO/ CABLEADO/IT VAERDRAHTUNG/ AAENSPSLUITING Jumper for reader’s address 9-14 VDC Cavalier pour adresse de lecteur A - RS-485 Ponticello per indirizzo lettore...
- Seite 3 The readers for Doors 1.0 and 2.0 must be at address 0 and those for Doors 1.1 and 2.1 at address 1. For doors equipped with 2 readers, one must be at address 0 and the other at address 1. Recommended cabling: Multiconductor cable 2 twisted pair with shielding.
- Seite 4 SOFTWARE SETTINGS/ PARAMÈTRES DU LOGICII/ IMPOSTAZIONI SOFTWARE/ AJUSTES DE SOFTWARE/ SOFTWAREEINSTELLUNGEN/ SOFTWARE-INSTELLINGEN Go to Doors, select the Reader(fig.2) and then select “No” for Card and mark the checkbox for Keypad. (fig.3) While off line, red LED blinks fast and buzzer beeps continuously. Once communication is established, the red LED and the buzzer stop.
