INFOSEC E3 Live RT Serie Bedienungsanleitung Seite 21

1. Input breaker
2. AC inlet
3. IEC output outlets
4. SNMP intelligent slot
5. RJ45/11 connectors
6. Emergency Power Off function connector (EPO)
7. USB communication port (HID)*
8. RS-232 communication port
9. "On / Off" pushbutton / Blue integrated indicator light
10. « Mute » button
11. LCD screen
* Human Interface Device – voir chapitre 9. Interface USB pour plus d'informations
Rackmount installation

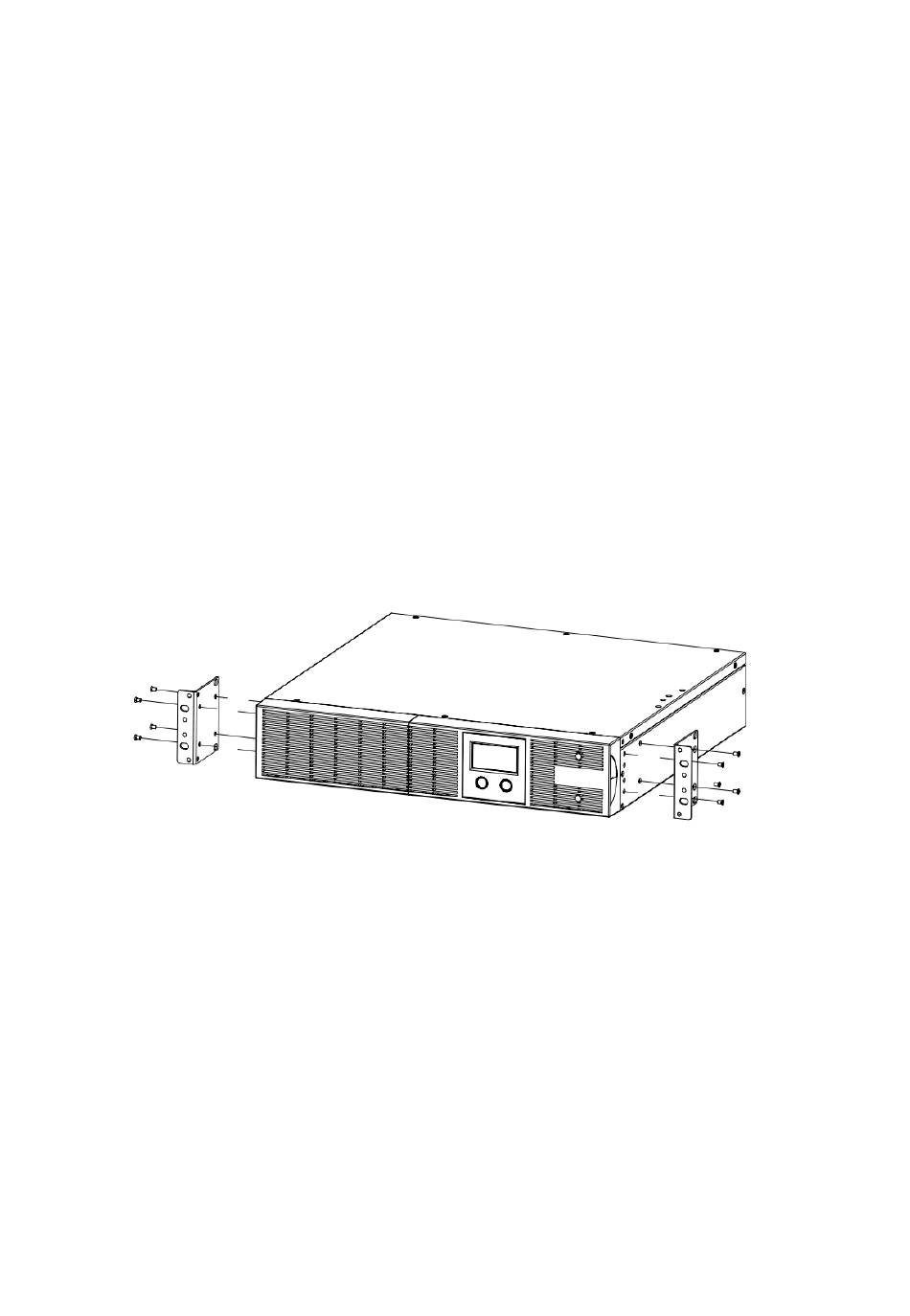

Step 1: Rackmount ears installation
Attach the two rackmount ears to the UPS using the provided screws M4X8L*8pcs.
