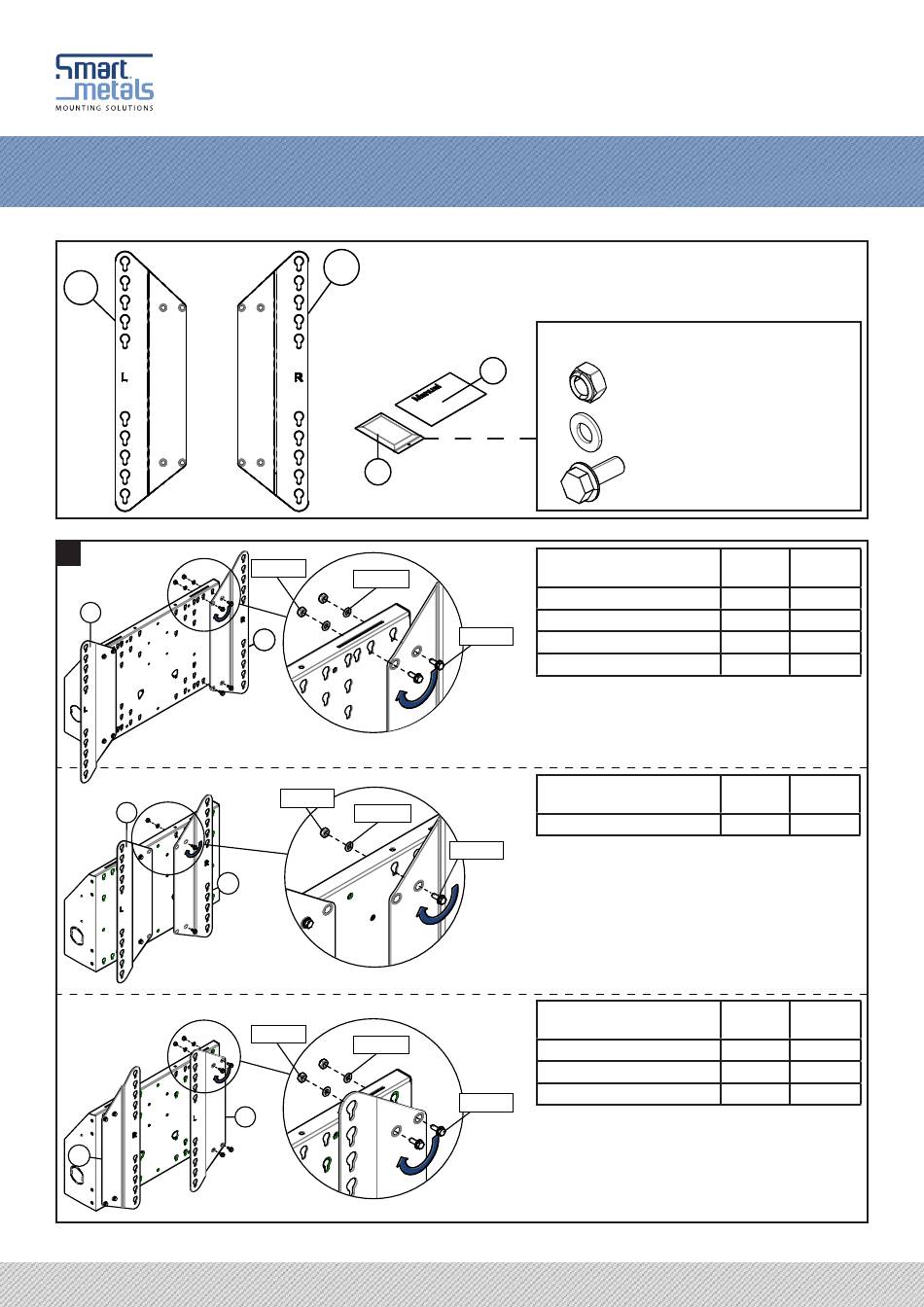

MOUNTING INSTRUCTIONS FOR VESA > 600x400
052.7150B/W Floor supp. wall lift XXL for touch screen 86 inch, 120 kg
A
1
A
A
B
B
SmartMetals Mounting Solutions B.V. • Vlietskade 8016 • 4241 WS ARKEL• The Netherlands
B
C
C1 | 8x
C2 | 8x
B
B
C1 | 4x
A
C2 | 4x
C1 | 8x
C2 | 8x
A
T +31 (0)88 70 60 100 • E info@smartmetals.nl • W www.smartmetals.nl
D
VESA
800 x 600/500/400/300/200 VESA 600 VESA 500
700 x 600/500/400/300/200 VESA 500 VESA 400
C3 | 8x
600 x 600/500/400/300/200 VESA 400 VESA 300
500 x 600/500/400/300/200 VESA 300 VESA 200
VESA
400 x 600/500/400/300/200 VESA 200
C3 | 4x
B
VESA
300 x 600/500/400/300/200 VESA 500 VESA 600
200 x 600/500/400/300/200 VESA 400 VESA 500
100 x 600/500/400/300/200 VESA 300 VESA 400
C3 | 8x
MON.0255
C1 | M8 | 8x
C2 | M8 | 8x20x1,5 | 8x
C3 | M8x16 | 8x
Fixate to
Fixate to
position
position
Fixate to
Fixate to
position
position
Fixate to
Fixate to
position
position
