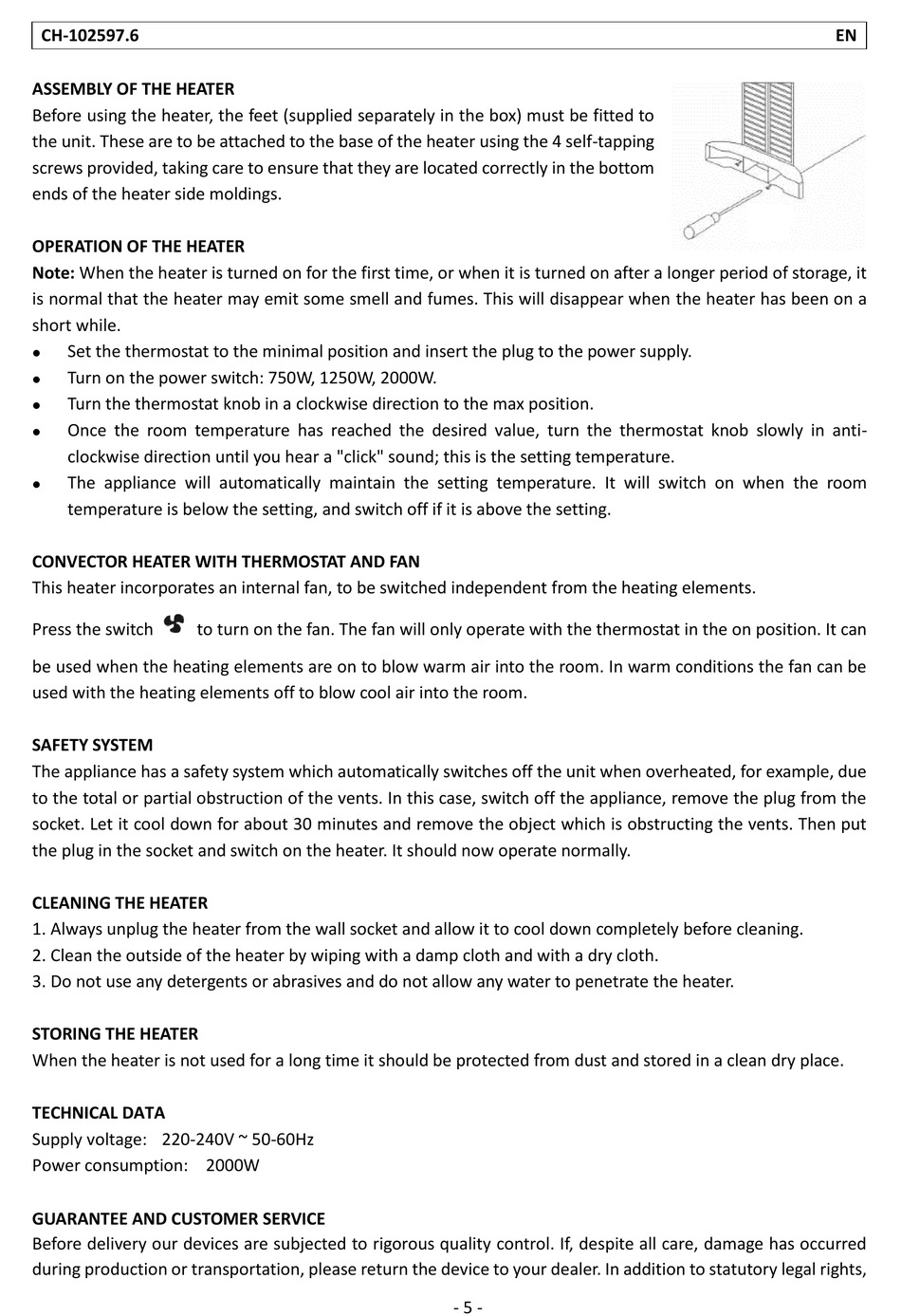

Emerio CH-102597.6 Bedienungsanleitung Seite 6

CH-102597.6
ASSEMBLY OF THE HEATER
Before using the heater, the feet (supplied separately in the box) must be fitted to
the unit. These are to be attached to the base of the heater using the 4 self-tapping
screws provided, taking care to ensure that they are located correctly in the bottom
ends of the heater side moldings.
OPERATION OF THE HEATER
Note: When the heater is turned on for the first time, or when it is turned on after a longer period of storage, it
is normal that the heater may emit some smell and fumes. This will disappear when the heater has been on a
short while.
Set the thermostat to the minimal position and insert the plug to the power supply.

Turn on the power switch: 750W, 1250W, 2000W.

Turn the thermostat knob in a clockwise direction to the max position.

Once the room temperature has reached the desired value, turn the thermostat knob slowly in anti-

clockwise direction until you hear a "click" sound; this is the setting temperature.
The appliance will automatically maintain the setting temperature. It will switch on when the room

temperature is below the setting, and switch off if it is above the setting.
CONVECTOR HEATER WITH THERMOSTAT AND FAN
This heater incorporates an internal fan, to be switched independent from the heating elements.
Press the switch to turn on the fan. The fan will only operate with the thermostat in the on position. It can
be used when the heating elements are on to blow warm air into the room. In warm conditions the fan can be
used with the heating elements off to blow cool air into the room.
SAFETY SYSTEM
The appliance has a safety system which automatically switches off the unit when overheated, for example, due
to the total or partial obstruction of the vents. In this case, switch off the appliance, remove the plug from the
socket. Let it cool down for about 30 minutes and remove the object which is obstructing the vents. Then put
the plug in the socket and switch on the heater. It should now operate normally.
CLEANING THE HEATER
1. Always unplug the heater from the wall socket and allow it to cool down completely before cleaning.
2. Clean the outside of the heater by wiping with a damp cloth and with a dry cloth.
3. Do not use any detergents or abrasives and do not allow any water to penetrate the heater.
STORING THE HEATER
When the heater is not used for a long time it should be protected from dust and stored in a clean dry place.
TECHNICAL DATA
Supply voltage: 220-240V ~ 50-60Hz
Power consumption: 2000W
GUARANTEE AND CUSTOMER SERVICE
Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred
during production or transportation, please return the device to your dealer. In addition to statutory legal rights,
- 5 -
