SWITCH 4: PROGRAMMING OF THE UPPER
POSITION OF END-OF-STROKE SENSOR
To set the upper position of the end-of-stroke sensor on a
roll-up shutter equipped with lock on the upper side it is
necessary to use a remote control previously stored and
proceed as follows:
1. Power only the control unit to be programmed
2. Multichannel transmiter only: press several times the key SELC
of the transmitter until displayed the channel stored
3. Take the roll-up shutter to half its way by the keys UP or
DOWN
4. Set to ON the switch 4 of the transmitter
5. Press and keep pressed - for about 5 seconds - the key PROG
of the transmitter until the motor, moving for 1/2 second in
both the ways, proves it is entering into programming phase.
6. Release the key PROG
7. Press the key UP: the roll-up shutter goes up at normal speed
8. Once in contact with the upper lock, it stops and memorizes
the position
9. Set to OFF the switch 4 of the transmitter
To set the upper position of the end-of-stroke sensor
on a roll-up shutter without lock on the upper side, it is
necessary to use a remote control previously stored and
proceed as follows:
1. Power only the control unit to be programmed
2. Multichannel transmiter only: press several times the key SELC
of the transmitter until displayed the channel stored
3. Position the roll-up shutter at the mid-height
4. Set to ON the switch 4 of the transmitter
5. Press and keep pressed - for about 5 seconds - the key PROG
of the transmitter until the motor, moving for 1/2 second in
both the ways, proves it is entering into programming phase
6. Release the key PROG
7. Position the roll-up shutter in the UPPER position desired using
the UP and DOWN buttons. To regulate it precisely, press the
PROG button when the motor is close to the limit switch. the
motor will start to move in jerks
8. Press the key STOP once reached the required position: the
motor stops and proves the correct storage of the
end-of-stroke with a 1/2 second movement first downwards
and then upwards.
9. Set to OFF the switch 4 of the transmitter

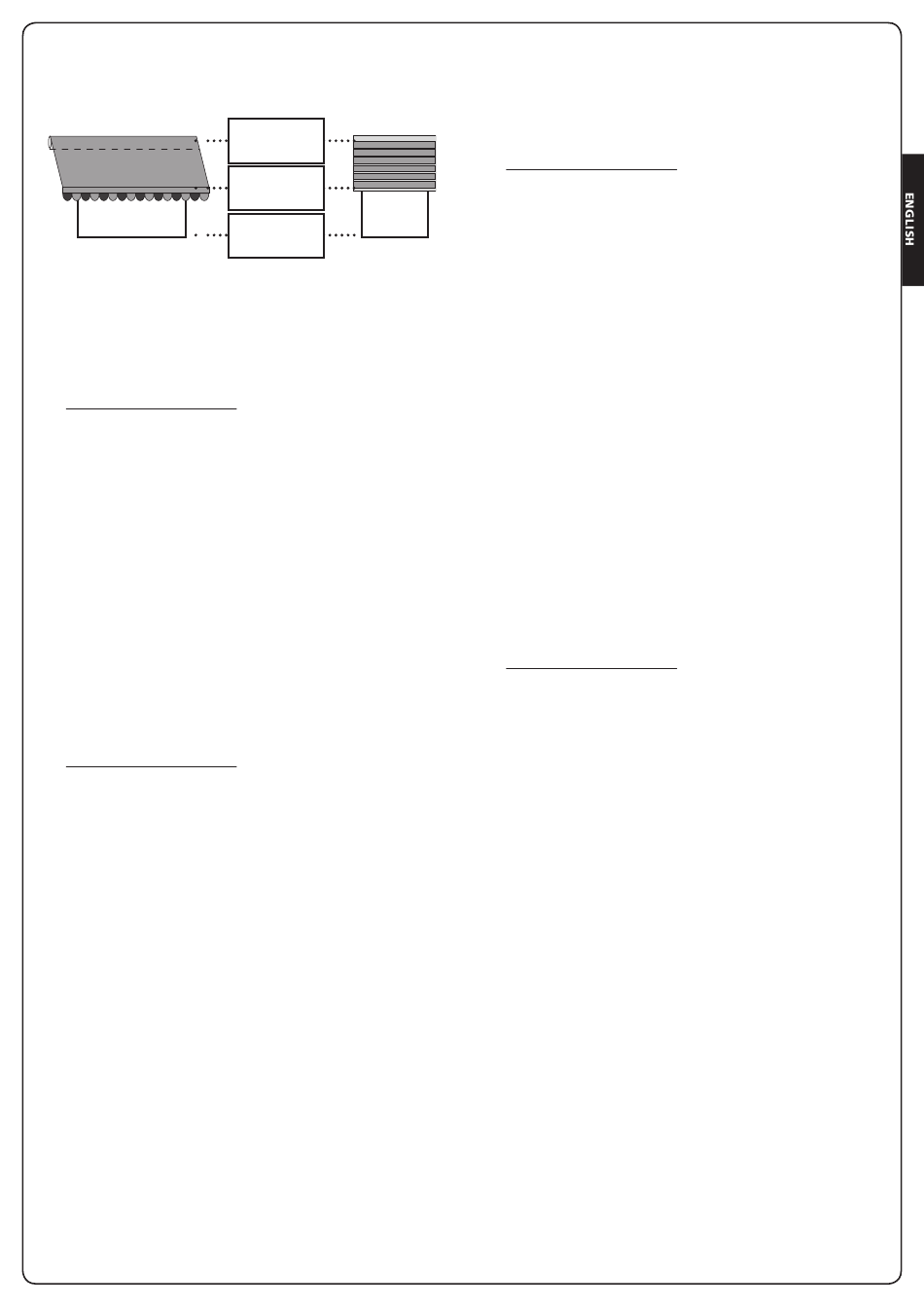

UPPER
POSITION
MIDDLE
POSITION
LOWER
POSITION
SWITCH 5: PROGRAMMING OF THE LOWER
POSITION OF THE END-OF-STROKE SENSOR
To set the lower position of the end-of-stroke sensor it is
necessary to use a remote control previously stored and
proceed as follows:
1. Multichannel transmiter only: press several times the key SELC
of the transmitter until displayed the channel stored
2. Position the roll-up shutter at the mid-height
3. Set to ON the switch 5 of the transmitter
4. Press and keep pressed - for about 5 seconds - the key PROG
of the transmitter until the motor proves it is entering into
programming phase by moving for 1/2 second in both the
ways
5. Release the key PROG
6. Position the roll-up shutter in the LOWER position desired
using the UP and DOWN buttons. To regulate it precisely, press
the PROG button when the motor is close to the limit switch:
the motor will start to move in jerks
7. Press the key STOP once reached the required position: the
motor stops and then proves the correct storage of the
end-of-stroke by moving for 1/2 second first upwards and
then downwards
8. Set to OFF the switch 5 of the transmitter
SWITCH 6: PROGRAMMING OF THE MIDDLE
POSITION OF THE END-OF-STROKE SENSOR
To set the middle position of the end-of-stroke sensor it is
necessary to use a remote control previously stored and
proceed as follows:
1. Multichannel transmiter only: press several times the key SELC
of the transmitter until displayed the channel stored
2. Take the roll-up shutter to the desired position with the keys
UP, DOWN and STOP
3. Set to ON the switch 6 of the transmitter
4. Press and keep pressed - for about 5 seconds - the key PROG
of the transmitter until the motor proves the correct storage of
the end-of-stroke by moving for 1/2 second in both the ways
5. Release the key PROG
6. Set to OFF the switch 6 of the transmitter
To take the roll-up shutter to a middle position press
the key STOP for at least 3 seconds (when the motor is
stopped): the roll-up shutter moves until reached the
position stored.
To delete the middle position previously stored it is
necessary to use a remote control previously stored and
proceed as follows:
1. Position the roll-up shutter at the mid-height
2. Set to ON the switch 6 of the transmitter
3. Press and keep pressed - for about 5 seconds - the key PROG
of the transmitter until the motor proves the deletion of the
middle position by moving for 1/2 second in both the ways
4. Release the key PROG
5. Set to OFF the switch 6 of the transmitter
