Ground Zero HYDROGEN Serie Anleitung Seite 11

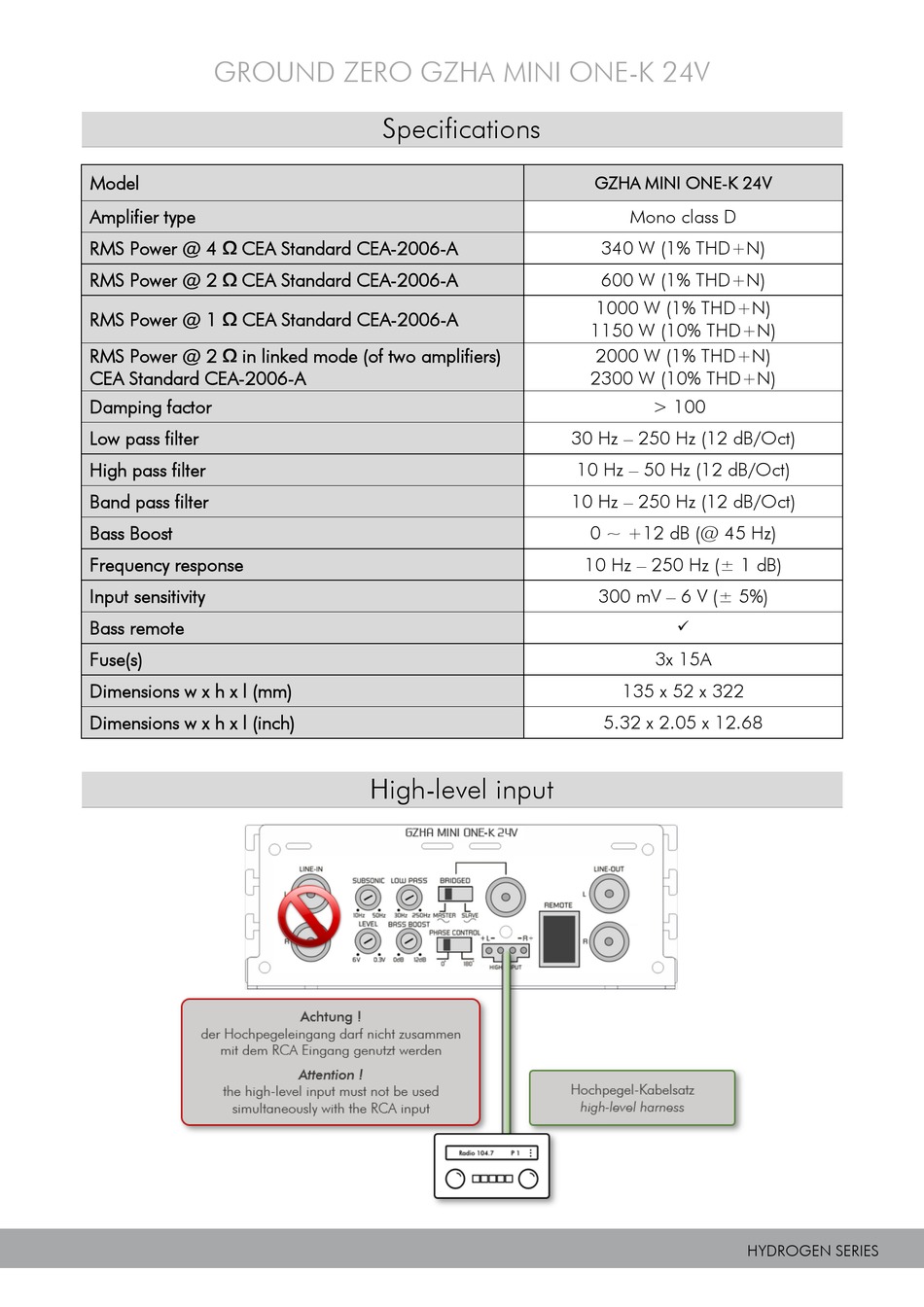

GROUND ZERO GZHA MINI ONE-K 24V
Model
Amplifier type
RMS Power @ 4 Ω CEA Standard CEA-2006-A
RMS Power @ 2 Ω CEA Standard CEA-2006-A
RMS Power @ 1 Ω CEA Standard CEA-2006-A
RMS Power @ 2 Ω in linked mode (of two amplifiers)
CEA Standard CEA-2006-A
Damping factor
Low pass filter
High pass filter
Band pass filter
Bass Boost
Frequency response
Input sensitivity
Bass remote
Fuse(s)
Dimensions w x h x l (mm)
Dimensions w x h x l (inch)
Specifications
High-level input
GZHA MINI ONE-K 24V
Mono class D
340 W (1% THD+N)
600 W (1% THD+N)
1000 W (1% THD+N)
1150 W (10% THD+N)
2000 W (1% THD+N)
2300 W (10% THD+N)
> 100
30 Hz – 250 Hz (12 dB/Oct)
10 Hz – 50 Hz (12 dB/Oct)
10 Hz – 250 Hz (12 dB/Oct)
0 ~ +12 dB (@ 45 Hz)
10 Hz – 250 Hz (± 1 dB)
300 mV – 6 V (± 5%)

3x 15A
135 x 52 x 322
5.32 x 2.05 x 12.68
HYDROGEN SERIES
