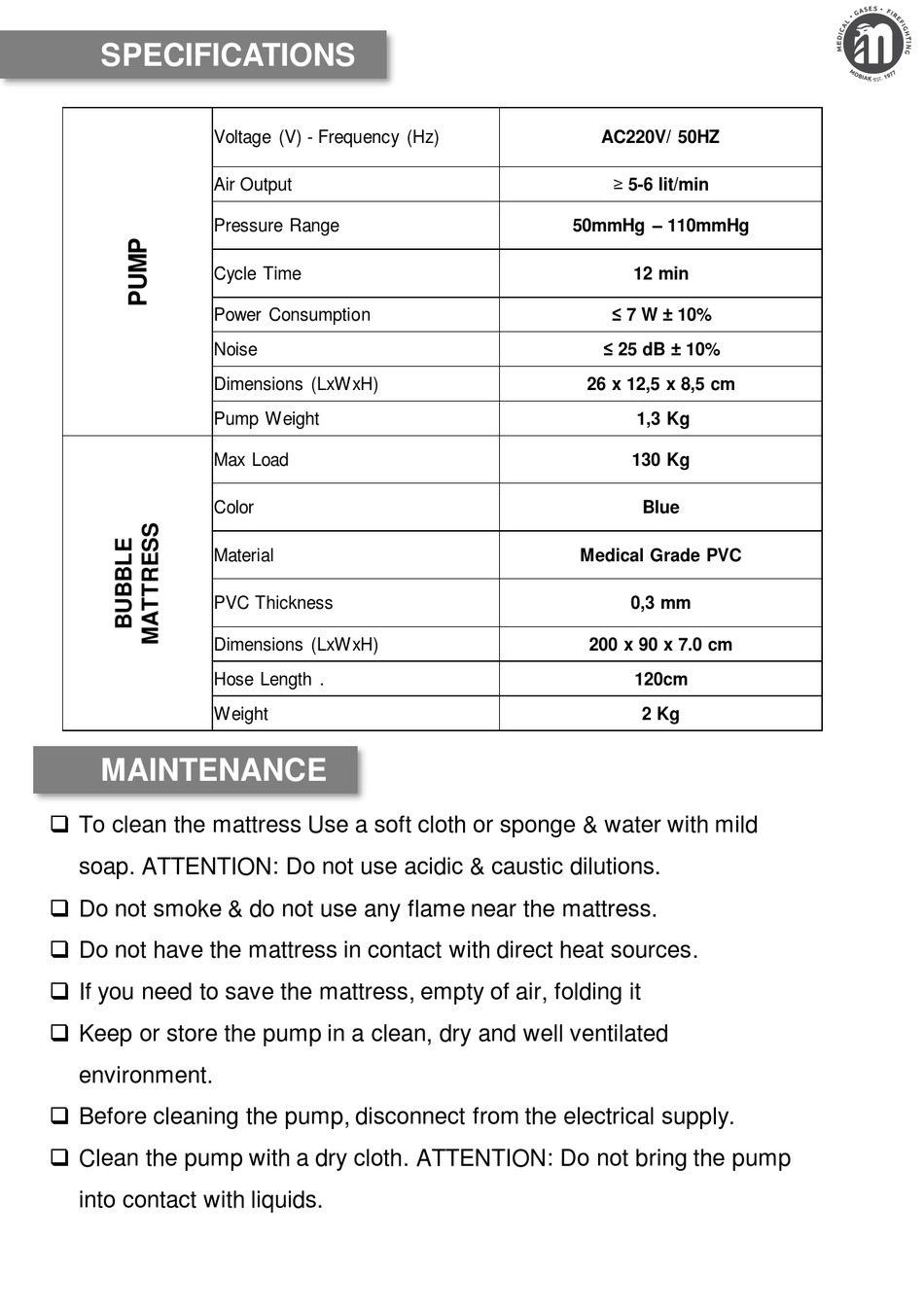

SPECIFICATIONS
Voltage (V) - Frequency (Hz)
Air Output
Pressure Range
Cycle Time
Power Consumption
Noise
Dimensions (LxWxH)
Pump Weight
Max Load
Color
Material
PVC Thickness
Dimensions (LxWxH)
Hose Length .
Weight
MAINTENANCE
 To clean the mattress Use a soft cloth or sponge & water with mild
soap. ATTENTION: Do not use acidic & caustic dilutions.
 Do not smoke & do not use any flame near the mattress.
 Do not have the mattress in contact with direct heat sources.
 If you need to save the mattress, empty of air, folding it
 Keep or store the pump in a clean, dry and well ventilated
environment.
 Before cleaning the pump, disconnect from the electrical supply.
 Clean the pump with a dry cloth. ATTENTION: Do not bring the pump
into contact with liquids.
AC220V/ 50HZ
≥ 5-6 lit/min
50mmHg – 110mmHg
12 min
≤ 7 W ± 10%
≤ 25 dB ± 10%
26 x 12,5 x 8,5 cm
1,3 Kg
130 Kg
Blue
Medical Grade PVC
0,3 mm
200 x 90 x 7.0 cm
120cm
2 Kg
