Conceptronic CKVM2U Schnellinstallationsanleitung Seite 9

ENGLISH
2. The Conceptronic 2-port USB-KVM Switch explained

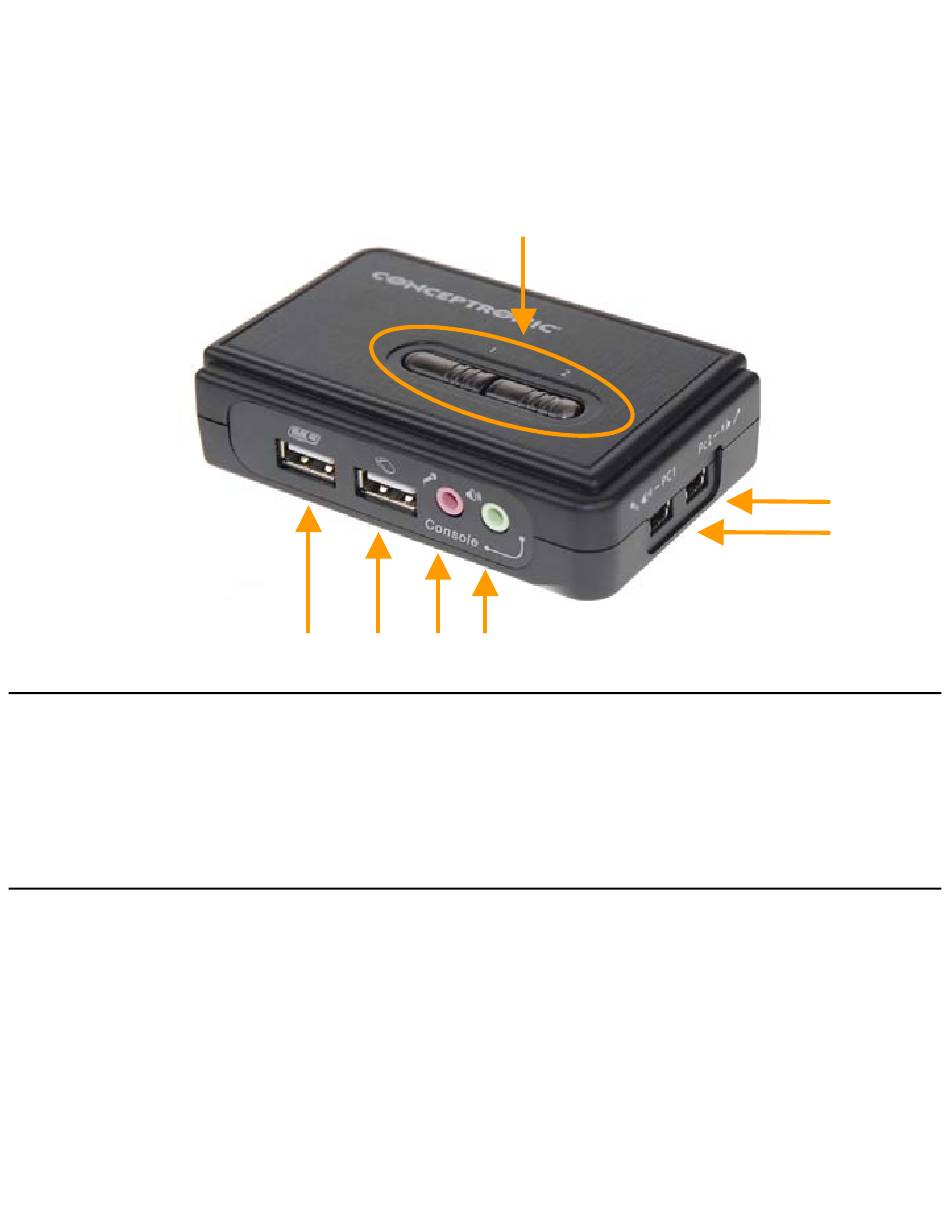

2.1 Device Explanation Front Side
Nr Description
1. USB keyboard connection
2. USB mouse connection
3. Microphone (MIC) input connection
4. Speaker (SPK) output connection
5. USB mini B output to PC-1 Microphone (MIC)/ Speaker (SPK) connection
6. USB mini B output to PC-2 Microphone (MIC)/ Speaker (SPK) connection
7. PC selection switches (PC 1 ~ 2)
1 2 3 4
9
7
6
5
