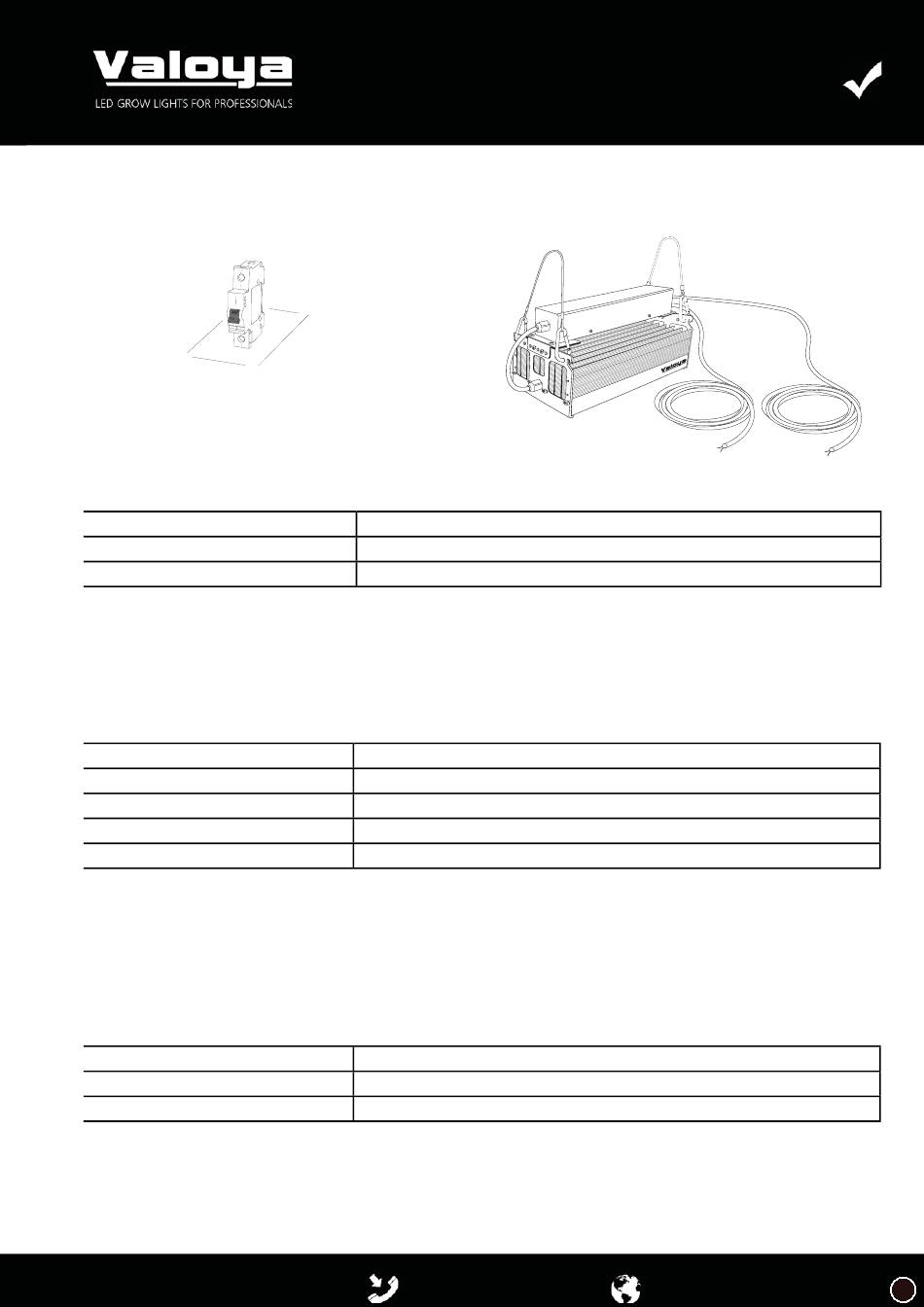

Circuit Breaker - Valoya R-Serie Installationsanleitung

R150
R150dim (dimmable)
For a 16A Type-C Miniature Circuit Breaker (MCB) we recommend using a maximum 6 power supply units
(PSUs).
1 MCB (for example MCB S200 series
manufactured by ABB)
Dimming
2 x PSU (Dimmable or Non-Dimmable)
AC plug
R300
R300dim (dimmable)
For a 16A Type-C Miniature Circuit Breaker (MCB) we recommend using a maximum of 3 power supply units.
Dimming (R300dim)
Dimming cable length (R300dim):
PSU AC cable length:
2 x PSU (Dimmable or Non-Dimmable)
AC plug
R300M (non-dimmable)
For a 16A Type-C Miniature Circuit Breaker (MCB) we recommend using a maximum of 3 power supply units.
PSU AC cable length:
PSU
AC plug
Version 2017.1
1-10V or PWM, or 0-10V
Line input 100-240VAC, 277VAC, 50/60Hz, input current 0,8A@230VAC
No, open end
1-10VDC or PWM, or 0-10VDC
2,0 m
2,0 m
Line input 100-240VAC, 277VAC, 50/60Hz, Input current 2 x 0,8A@230VAC
No, open end
1,4 m
Line input 100-250 VAC, 50/60Hz, 2A @240VAC
No, open end
+358 10 2350 300

Circuit Breaker

AC cable - 2,0 m
www.valoya.com
Dimming cable - 2,0 m
(optional)
