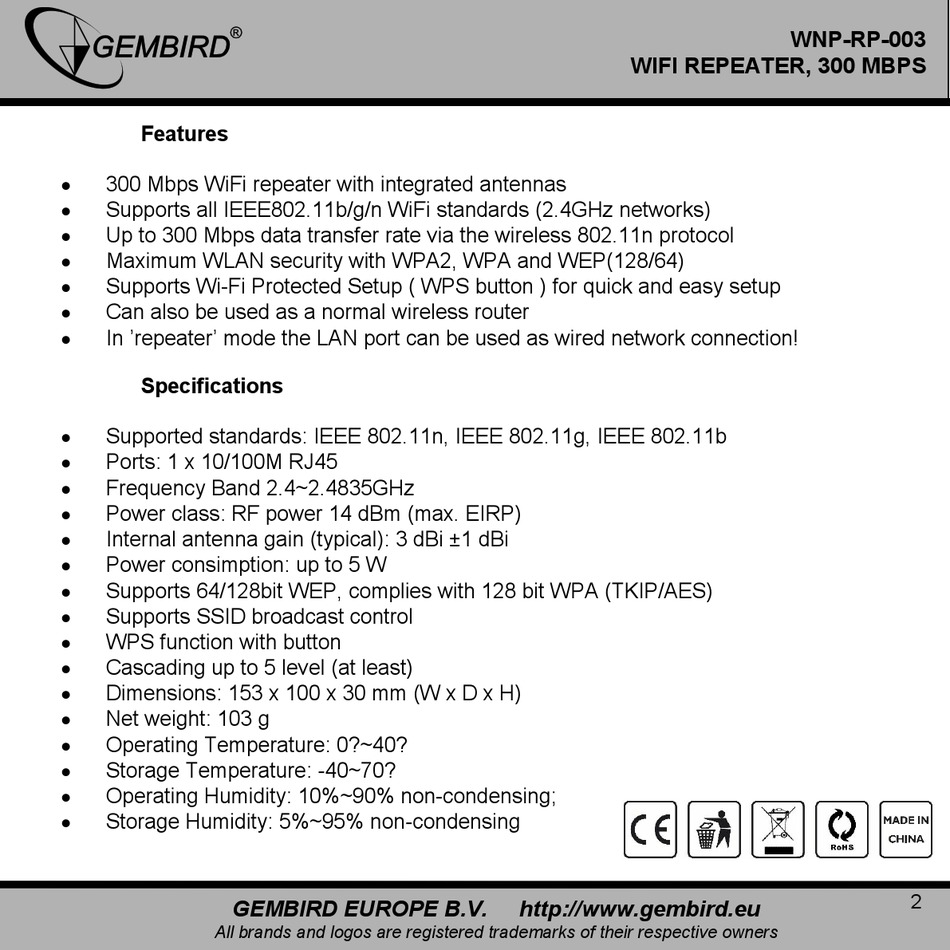

Specifications - Gembird WNP-RP-003 Handbuch

Features
 300 Mbps WiFi repeater with integrated antennas
 Supports all IEEE802.11b/g/n WiFi standards (2.4GHz networks)
 Up to 300 Mbps data transfer rate via the wireless 802.11n protocol
 Maximum WLAN security with WPA2, WPA and WEP(128/64)
 Supports Wi-Fi Protected Setup ( WPS button ) for quick and easy setup
 Can also be used as a normal wireless router
 In 'repeater' mode the LAN port can be used as wired network connection!

Specifications

 Supported standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
 Ports: 1 x 10/100M RJ45
 Frequency Band 2.4~2.4835GHz
 Power class: RF power 14 dBm (max. EIRP)
 Internal antenna gain (typical): 3 dBi ±1 dBi
 Power consimption: up to 5 W
 Supports 64/128bit WEP, complies with 128 bit WPA (TKIP/AES)
 Supports SSID broadcast control
 WPS function with button
 Cascading up to 5 level (at least)
 Dimensions: 153 x 100 x 30 mm (W x D x H)
 Net weight: 103 g
 Operating Temperature: 0?~40?
 Storage Temperature: -40~70?
 Operating Humidity: 10%~90% non-condensing;
 Storage Humidity: 5%~95% non-condensing
GEMBIRD EUROPE B.V.
All brands and logos are registered trademarks of their respective owners
WIFI REPEATER, 300 MBPS
http://www.gembird.eu
WNP-RP-003
2
