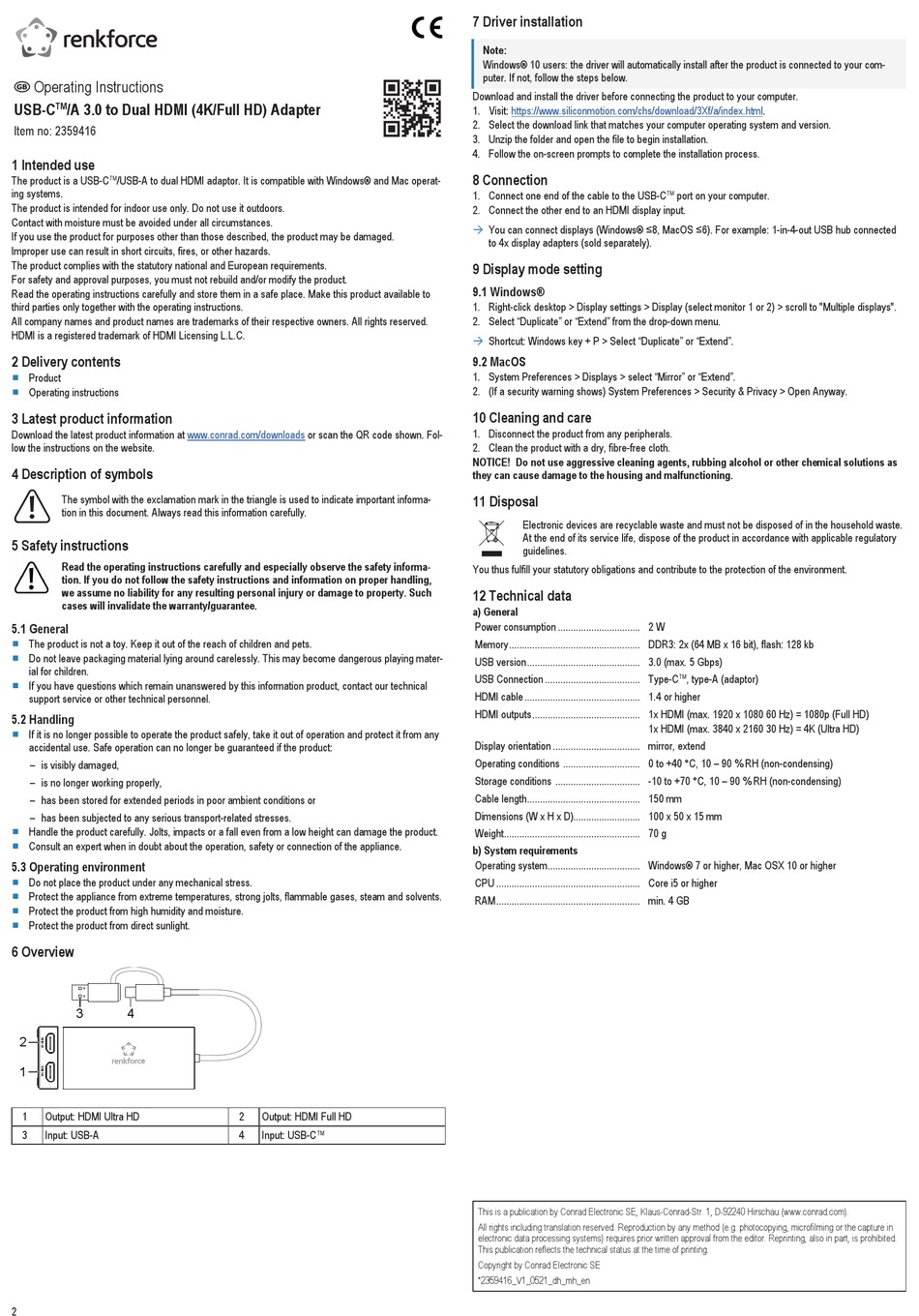

Operating Instructions
TM
USB-C
/A 3.0 to Dual HDMI (4K/Full HD) Adapter
Item no: 2359416
1 Intended use
TM
The product is a USB-C
/USB-A to dual HDMI adaptor. It is compatible with Windows® and Mac operat-
ing systems.
The product is intended for indoor use only. Do not use it outdoors.
Contact with moisture must be avoided under all circumstances.
If you use the product for purposes other than those described, the product may be damaged.
Improper use can result in short circuits, fires, or other hazards.
The product complies with the statutory national and European requirements.
For safety and approval purposes, you must not rebuild and/or modify the product.
Read the operating instructions carefully and store them in a safe place. Make this product available to
third parties only together with the operating instructions.
All company names and product names are trademarks of their respective owners. All rights reserved.
HDMI is a registered trademark of HDMI Licensing L.L.C.
2 Delivery contents
■
Product
■
Operating instructions
3 Latest product information
Download the latest product information at
low the instructions on the website.
4 Description of symbols
The symbol with the exclamation mark in the triangle is used to indicate important informa-
tion in this document. Always read this information carefully.
5 Safety instructions
Read the operating instructions carefully and especially observe the safety informa-
tion. If you do not follow the safety instructions and information on proper handling,
we assume no liability for any resulting personal injury or damage to property. Such
cases will invalidate the warranty/guarantee.
5.1 General
■
The product is not a toy. Keep it out of the reach of children and pets.
■
Do not leave packaging material lying around carelessly. This may become dangerous playing mater-
ial for children.
■
If you have questions which remain unanswered by this information product, contact our technical
support service or other technical personnel.
5.2 Handling
■
If it is no longer possible to operate the product safely, take it out of operation and protect it from any
accidental use. Safe operation can no longer be guaranteed if the product:
– is visibly damaged,
– is no longer working properly,
– has been stored for extended periods in poor ambient conditions or
– has been subjected to any serious transport-related stresses.
■
Handle the product carefully. Jolts, impacts or a fall even from a low height can damage the product.
■
Consult an expert when in doubt about the operation, safety or connection of the appliance.
5.3 Operating environment
■
Do not place the product under any mechanical stress.
■
Protect the appliance from extreme temperatures, strong jolts, flammable gases, steam and solvents.
■
Protect the product from high humidity and moisture.
■
Protect the product from direct sunlight.
6 Overview
3
4
2
1
1
Output: HDMI Ultra HD
3
Input: USB-A
2
www.conrad.com/downloads
or scan the QR code shown. Fol-
2
Output: HDMI Full HD
4
Input: USB-C™
7 Driver installation
Note:
Windows® 10 users: the driver will automatically install after the product is connected to your com-
puter. If not, follow the steps below.
Download and install the driver before connecting the product to your computer.
1. Visit: https://www.siliconmotion.com/chs/download/3Xf/a/index.html.
2. Select the download link that matches your computer operating system and version.
3. Unzip the folder and open the file to begin installation.
4. Follow the on-screen prompts to complete the installation process.
8 Connection
1. Connect one end of the cable to the USB-C
2. Connect the other end to an HDMI display input.
à
You can connect displays (Windows® ≤8, MacOS ≤6). For example: 1-in-4-out USB hub connected
to 4x display adapters (sold separately).
9 Display mode setting
9.1 Windows®
1. Right-click desktop > Display settings > Display (select monitor 1 or 2) > scroll to "Multiple displays".
2. Select "Duplicate" or "Extend" from the drop-down menu.
à
Shortcut: Windows key + P > Select "Duplicate" or "Extend".
9.2 MacOS
1. System Preferences > Displays > select "Mirror" or "Extend".
2. (If a security warning shows) System Preferences > Security & Privacy > Open Anyway.
10 Cleaning and care
1. Disconnect the product from any peripherals.
2. Clean the product with a dry, fibre-free cloth.
NOTICE! Do not use aggressive cleaning agents, rubbing alcohol or other chemical solutions as
they can cause damage to the housing and malfunctioning.
11 Disposal
Electronic devices are recyclable waste and must not be disposed of in the household waste.
At the end of its service life, dispose of the product in accordance with applicable regulatory
guidelines.
You thus fulfill your statutory obligations and contribute to the protection of the environment.
12 Technical data
a) General
Power consumption ................................ 2 W
Memory................................................... DDR3: 2x (64 MB x 16 bit), flash: 128 kb
USB version............................................ 3.0 (max. 5 Gbps)
USB Connection ..................................... Type-C
HDMI cable ............................................. 1.4 or higher
HDMI outputs.......................................... 1x HDMI (max. 1920 x 1080 60 Hz) = 1080p (Full HD)
Display orientation .................................. mirror, extend
Operating conditions .............................. 0 to +40 °C, 10 – 90 % RH (non-condensing)
Storage conditions ................................. -10 to +70 °C, 10 – 90 % RH (non-condensing)
Cable length............................................ 150 mm
Dimensions (W x H x D).......................... 100 x 50 x 15 mm
Weight..................................................... 70 g
b) System requirements
Operating system.................................... Windows® 7 or higher, Mac OSX 10 or higher
CPU ........................................................ Core i5 or higher
RAM........................................................ min. 4 GB
This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com).
All rights including translation reserved. Reproduction by any method (e.g. photocopying, microfilming or the capture in
electronic data processing systems) requires prior written approval from the editor. Reprinting, also in part, is prohibited.
This publication reflects the technical status at the time of printing.
Copyright by Conrad Electronic SE
*2359416_V1_0521_dh_mh_en
TM
port on your computer.
TM
, type-A (adaptor)
1x HDMI (max. 3840 x 2160 30 Hz) = 4K (Ultra HD)
