Field of application:
The devices are suited only for distributing radio and television signals in the
house! If the device is used for other purposes, no warranty is given!
The BVS 10-xx only may be used indoor.
RF Installation:

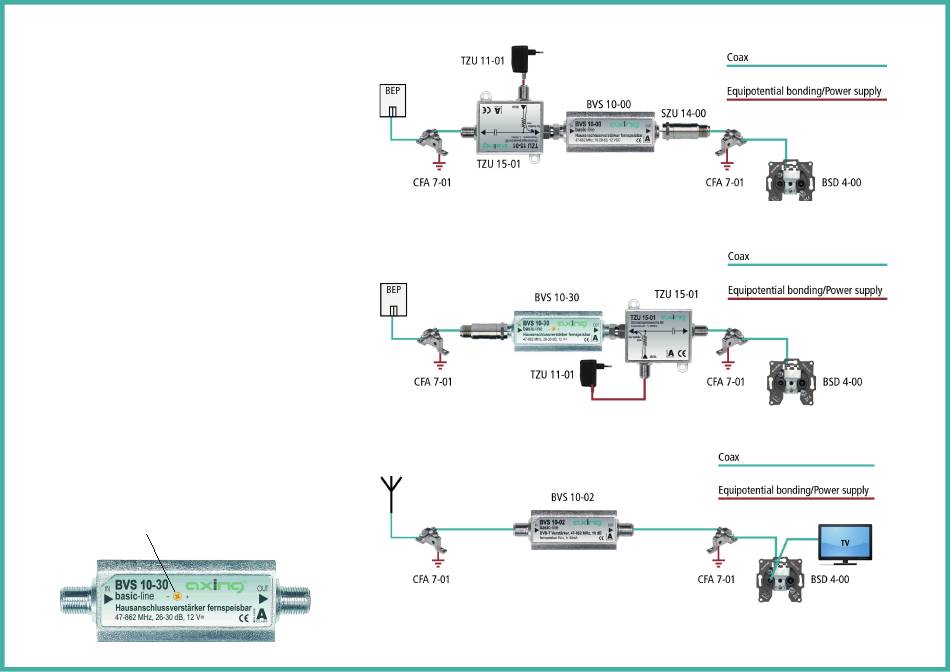

 Connect the inline amplifier between the video interconnection point, the
DVB-T antenna and the antenna wall outlet.
 Use a highly shielded coaxial cable with F connectors (for TVS 10-00 also
IEC connectors possible). Suited cables and plugs can be found in the
current AXING catalogue or at www.axing.com.
Power supply:
The inline amplifiers have to be remote feed over the coaxil cable. They are
remote feedable at input (1) or output (2).
Suited power supplys and DC-power couplers can be found in the current
AXING catalogue or at www.axing.com(both are included with the amplifier
set BVS 10-01).
BVS 10-02: This DVB-T amplifier is remote feedable directly by the DVB-T
receiver or TV set (3).
 Check wether the DVB-T receiver has an integrated power supply, which
can be used, to supply the amplifier. If not, use an external power supply
with DC-power coupler.
 Active components, such as antennas or amplifiers, which are installed
after the inline amplfier can be remote power fed with the indicated
voltage of the relevant inline amplifier.
 Check wether the power supply can supply all active components. Check
the maximum nominal current of the power supply.
Note: Use a power inserter with integrated DC blocker for remote feeding the
amplifiers. If the amplifier is remote fed at its input, install a aditional DC-Blo-
cker at its output. If it is remote fed at its output, install a aditional DC-Blocker
at its input.
The gain of BVS 10-30 can be
adjusted with the attenuator.
