PEGASUS SOLAR LANTERN
MODEL: 651069 / CS - 19006

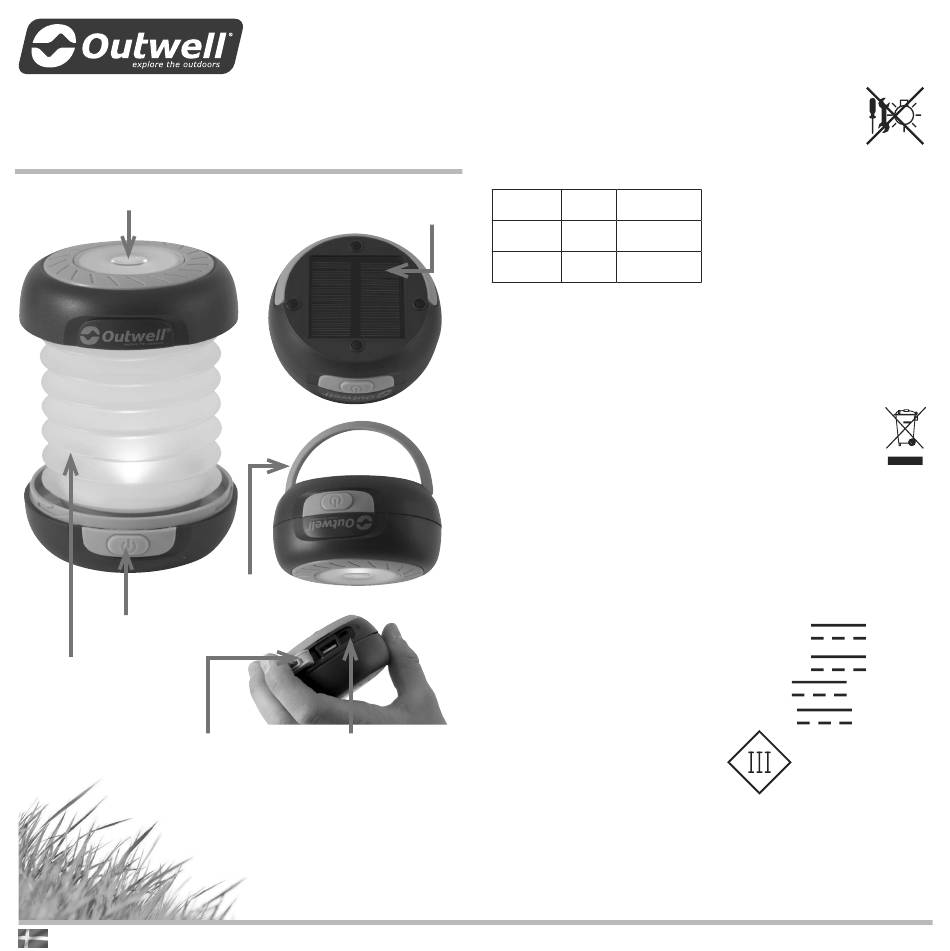

5. TORCH LENS
7. POWER BUTTON
6. PE LAMPSHADE
3. PROTECTIVE
COVER
1. SOLAR PANEL
2. HANGER
4. CHARGE INDICATOR
UK: INSTRUCTION MANUAL
Light modes:
• Press the button (7.) to switch on the light.
• Press and hold the button to dim the
light. The light can be dimmed step-
less to any setting between maximum
and minimum light output. When
lowest or highest setting is reached,
the lamp will stay at that setting.
• Press and hold once more to dim again
• Press the button to switch off the light.
Lm Lighting time
(full charge)
Maximum 65 5 hours
mode
Minimum 3.9 45 hours
mode
Use of the lamp:
• Lamp is charged using 5V DC USB
power outlet. Micro USB input is locat-
ed under protective lid (3.)
• Charging cable is included with the
lamp. Charge time from empty to full
app. 2 hrs. Lamp can also be charged
from the built-in solar panel. Charge
time from empty to full app. 16 hrs
• Lamp have built-in overcharge
protection circuit.
• When charging the charging indicator
(4.) lights red. When fully charged the
indicator lights green.
• Please fully charge the lamp before use
• Lamp can be used as a torch when
fully collapsed, or as a lantern when
extended
• To extend lantern lampshade, grab
the upper and lower parts of the
lamp -> twist them counter clockwise
from each other until casing opens ->
gently pull apart until lampshade is
fully extended
• To collapse the lampshade, reverse
the above.
• Lamp can also be used as power bank
to charge phones etc. USB output is
located under protective lid (3.)
• Lamp can be used standing, hanging
from the hanger (2.)
• Lamp is water resistant to IP44
• Lamp can be cleaned with water or a
damp rag. Do not use corrosive liquids
to clean the lamp
• Do not stare into the light source
Light source: 1W LED
Light source and control gear is not
replaceable. This would introduce weak
points in the construction,
that could reduce the
lifetime of the product.
Instruction for removal
of light source and control gear by
market surveillance authorities:
1) Remove lamp shade by hand.
2) Remove 4 pcs plugs covering the
screw holes using a pick.
3) Unscrew 3 pcs screws (the fourth
hole have no screw).
4) Unscrew 2 pcs screws under the
hanger and take apart the lamp.
5) Unscrew 3 pcs screws holding lamp
shade backplate in place.
6) Unscrew screws holding light source
in place.
7) Cut needed wires to remove the
required components for testing.
Instruction for disassembly of lamp
for disposal of components
when lamp has reached the
end of its usable life:
- See steps 1-6 above
7) Cut wires to allow removal
of battery. Dispose of battery
according to local regulations.
8) Cut wires and remove screws to
allow removal of electronics on
circuit board. Dispose of electronics
according to local regulations.
9) Dispose of remaining components
according to local regulations.
Technical data:
Input USB: 3.7V , 400mA
Input Solar: 5V , 50mA
Output: 5V , 400mA
Battery: 3.7V , 800mAh Li-Po
Class 3 appliance
