3
1.

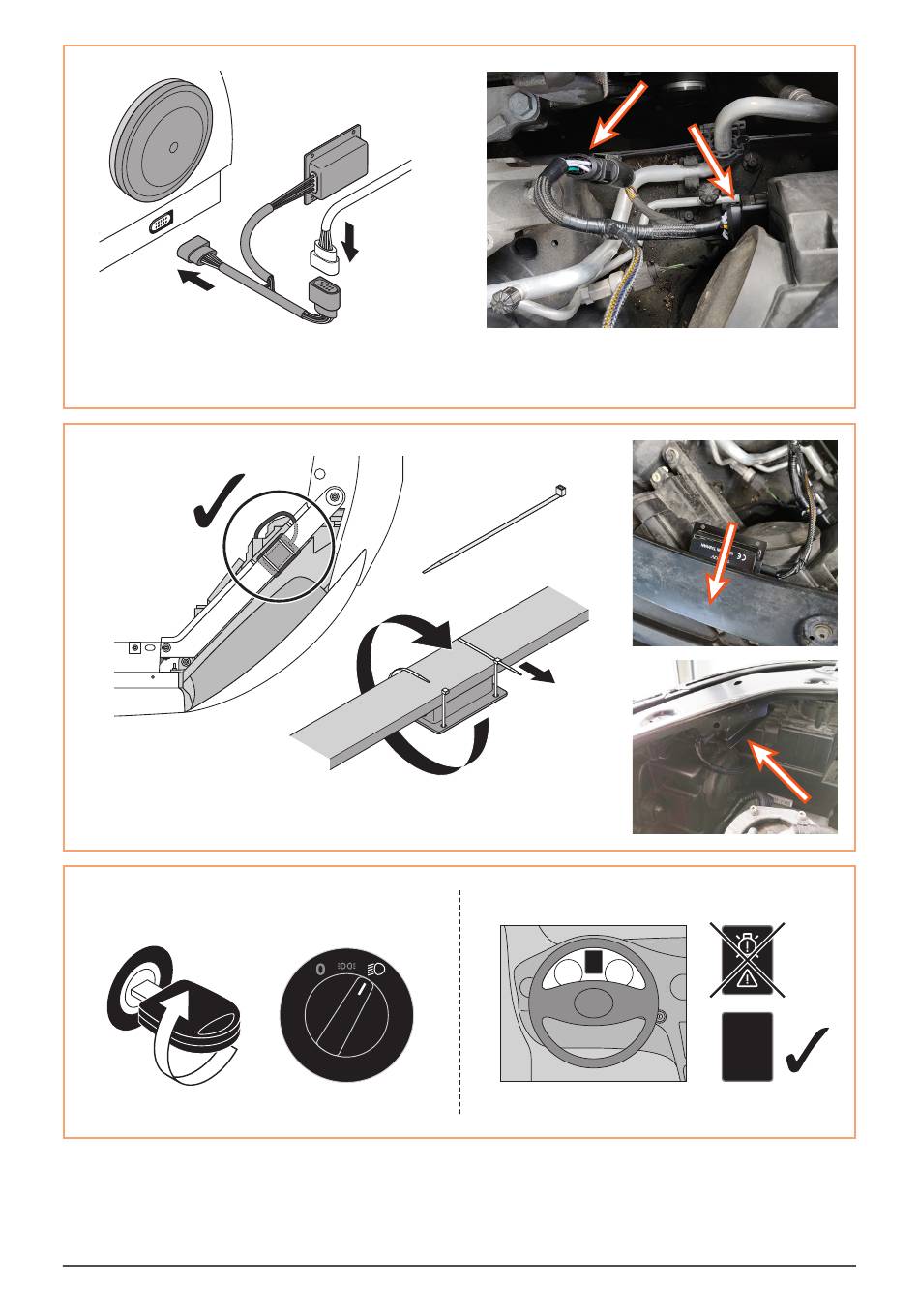

Connect the SMART CANBUS (load resistor) plug to the vehicle connector.
2.
Connect the SMART CANBUS (load resistor) socket with the headlight.
4
Mount the SMART CANBUS (load resistor) to the vehicle's body (metal).
Please note:
Pull the cable ties until they are taut.
5
ON
For questions regarding maintenance or technical problems, please contact OSRAM customer service via
automotive-service@osram.com .
Installation instructions for electronic load resistor
2x
3)
ON
4)
1)
LEDSC02-1
2)
2
