PAnel & reMote Control deSCriPtion
1. PAnel & reMote Control deSCriPtion

1.1. front PAnel deSCriPtion

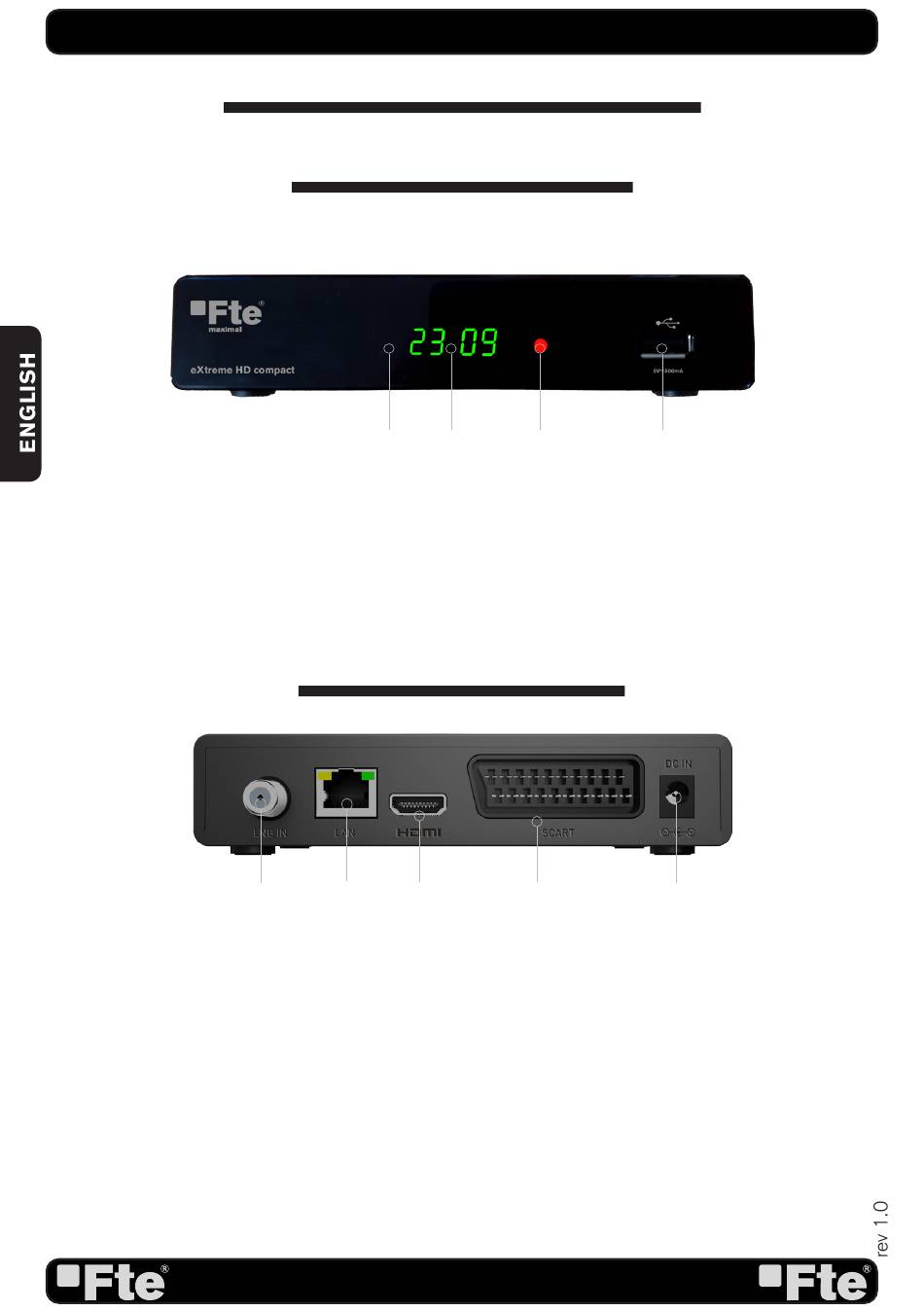

1 2 3 4
1. IR-SENSOR: Reception sensor for the IR remote control signals.
2. DISPLAY: 4 Digits to display the program numbers.
3. STANDBY LED: When the led is red the receiver is in Standby mode. When the led is green the
receiver is on.
4. USB: Connector for external USB 2.0 HighSpeed devices.

1.2. reAr PAnel deSCriPtion

1 2 3 4 5
1. LNB IN: Satellite input. Max. 300mA
2. LAN: Network connection to access to Internet.
3. HDMI: HDMI output for connecting to a TV.
4. TV SCART: Output SCART for the connection to a TV set.
5. DC IN: 12 VDC connection (power supply).
