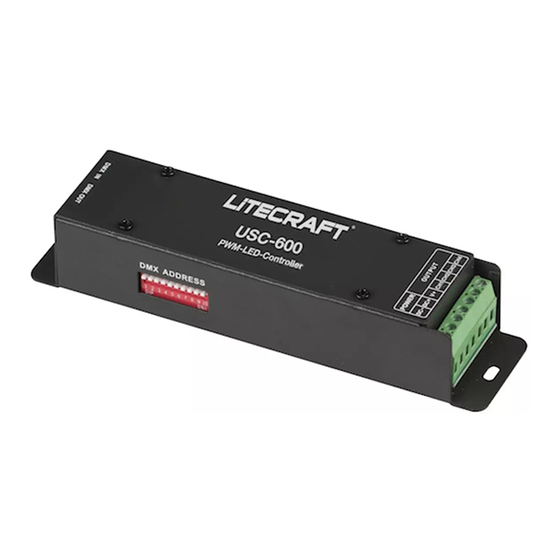

REINIGUNG UND WARTUNG BEDIENUNG DIP-SCHALTER BEDIENUNG DMX-MODUS TECHNISCHE SPEZIFIKATIONEN Thank you for purchasing this LITECRAFT product. For your own safety, please read the instruction manual carefully before turn on the product for the first time. CONTENT SAFETY NOTES DESIGNATED USE...
All manuals and user guides at all-guides.com SICHERHEITSHINWEISE Jede Person, die mit der Installation, dem Einsatz oder dem Service des Gerätes betraut ist, muss: • qualifiziert sein • den Anweisungen dieser Bedienungsanleitung folgen. • ACHTUNG! Seien Sie vorsichtig beim Einsatz des Gerätes. Sie riskieren einen elektrischen Schlag durch Hochspannung wenn Sie die Kabeladern berühren! Das Gerät hat unser Haus in herstellergeprüftem Zustand verlassen.
All manuals and user guides at all-guides.com MONTAGE Bei der Montage des Controllers sind spezifische Bestimmungen wie die DGUV (vormals BGV) oder auch • länderspezifische Baurichtlinien zu beachten. Die Montage darf nur durch qualifizierte Personen erfolgen! • Während der Installation ist der unnötige Aufenthalt im Gefahrenbereich unterhalb der Installation verboten. •...
All manuals and user guides at all-guides.com REINIGUNG UND WARTUNG Der Installateur hat dafür Sorge zu tragen, dass sicherheitstechnische und maschinentechnische Einrichtungen • mindestens einmal jährlich durch einen Sachkundigen geprüft werden. Der Installateur hat dafür Sorge zu tragen, dass sicherheitstechnische und maschinentechnische Einrichtungen •...
All manuals and user guides at all-guides.com BEDIENUNG Dieses Gerät besitzt DMX- und Stand-Alone-Modi. Im DMX-Modus können mehrere Geräte miteinander • verbunden und von einem Controller gesteuert werden. Das Gerät übernimmt die Einstellungen des DMX- Kontrollers, sobald die entsprechende DMX-Startadresse eingestellt wurde. Dip-Schalter Beschreibung: •...
All manuals and user guides at all-guides.com TECHNISCHE SPEZIFIKATIONEN Spannung: 12-24 V DC • Stromaufnahme: 20 A @ 24 V • Abmessungen: 17,5 x 4,2 x 3,3 cm • Gewicht: 0,31 kg • DMX-Kanäle: 4 • Gehäuse-Schutzklasse: IP 20 • DMX Pin-Belegung: 1 = DMX +, 2 = DMX -, 7/8 = Ground •...
All manuals and user guides at all-guides.com SAFETY NOTES Each person which is responsible for the installation, the use or service of this unit must be: • qualified • has to follow the instructions in this manual. • WARNING! Be careful when using the device. You risk an electrical shock from high voltage, if you touch the wires! The device has left our company in manufacturer proofed state.
All manuals and user guides at all-guides.com INSTALLATION There are specific regulations like DGUV (old BGV) or country related regulations which need to attend during • the installation. The installation has to be handled by skilled persons only! • Trepassing the danger zone below the installation during the assembling is prohibited. •...
All manuals and user guides at all-guides.com CLEANING AND MAINTENANCE Installer has to take care of all safety and machinery installations are approved by skilled persons at least once • a year. Installer has to take care of all safety and machinery installations are approved by authorized persons at least •...
All manuals and user guides at all-guides.com OPERATION This device has DMX- and Stand-Alone-Modes. In DMX-mode, multiple devices can be connected and • controlled by a controller. The device accepts the settings of the DMX-controller, as soon as the corresponding start address is set.
All manuals and user guides at all-guides.com TECHNICAL SPECIFICATION voltage: 12-24 V DC • power consumption: 20 A @ 24 V • measurements: 17,5 x 4,2 x 3,3 cm • weight: 0,31 kg • DMX-channels: 4 • ip rating: IP 20 •...
