ASSIGNMENT
Description
1 Camshaft Locking Tool
2 Crankshaft Locking Tool
3 Camshaft Locking Tool
APPLICATION engine code: AWY - BMD - BBM

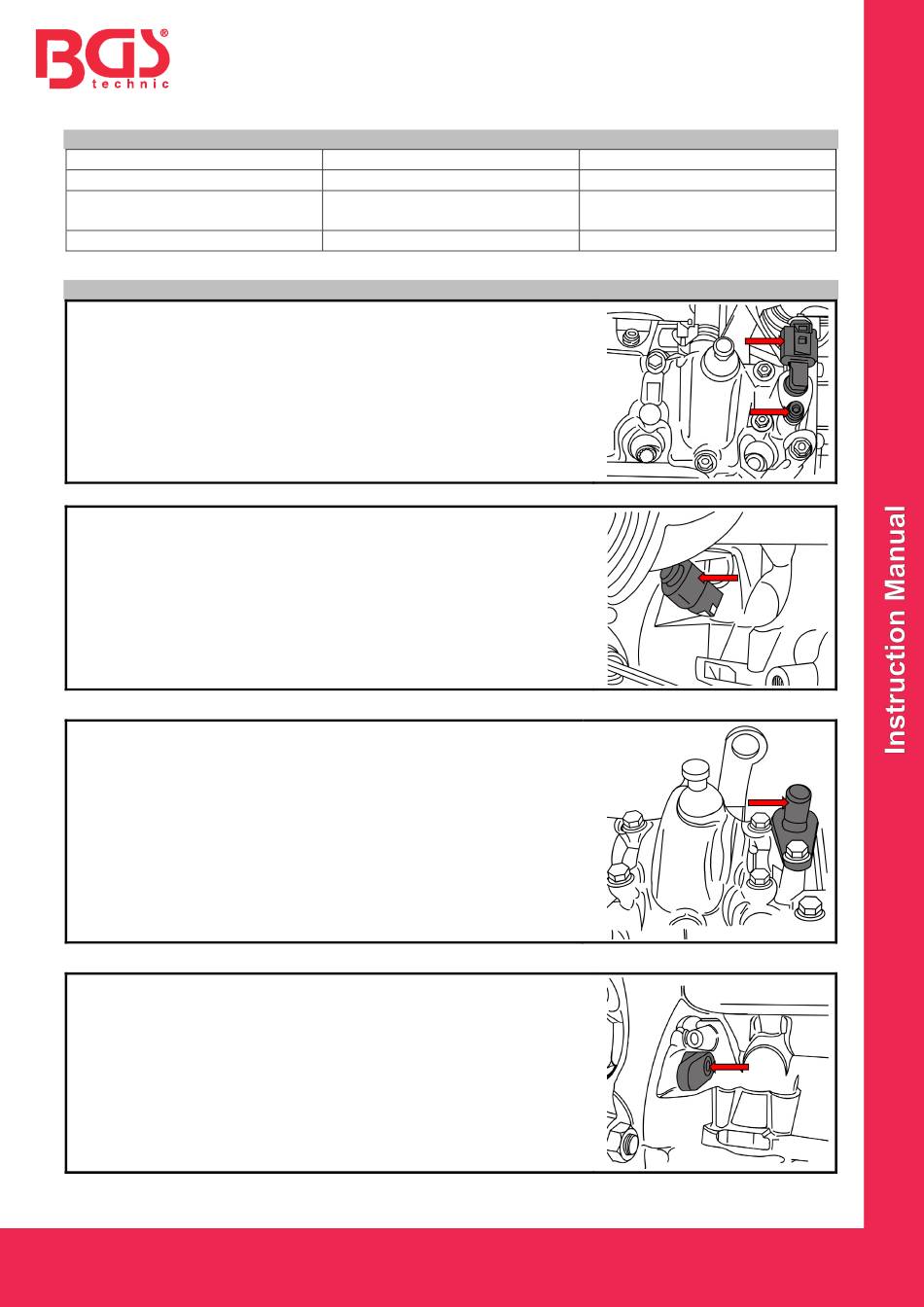

1. Remove the camshaft hall sensor.
2. Remove the engine speed sensor.
3. Rotate the Crankshaft in engine direction, with the pulley
holding screw, until you can see the groove from camshaft
and the tool (3) fits in the hole.
4. Camshaft locking tool (3) must be easy fits in the hole. It is
quite sufficient to secure the screw by hand.
5. Insert the crankshaft locking tool (2) in the bore of the engine
speed sensor.
6. If you cannot insert the locking pin, remove tool 3 & 2, turn
crankshaft in the engine rotation direction (360 °) and repeat
works at point 3. If you can't insert both locking pins slightly in
the bore, the valve timing must according to manufacturer's
instructions to be examined.
