ISE Smart connect KNX Hue Installationsanleitung Seite 2

Installation Guide
D GB
ise smart connect KNX Hue
Order no.: 1-0002-003
ise Individuelle Software-
Entwicklung GmbH
Kaiserstraße 14
26122 Oldenburg
Germany
T +49 441 680 06 12
F +49 441 680 06 15
www.ise.de
support@ise.de
KNX
2
1
KNX 24VDC
APP
COM
ise smart connect KNX
Hue
Phy.Addr.
8
00:00:00:00:00:00
1-0002-003

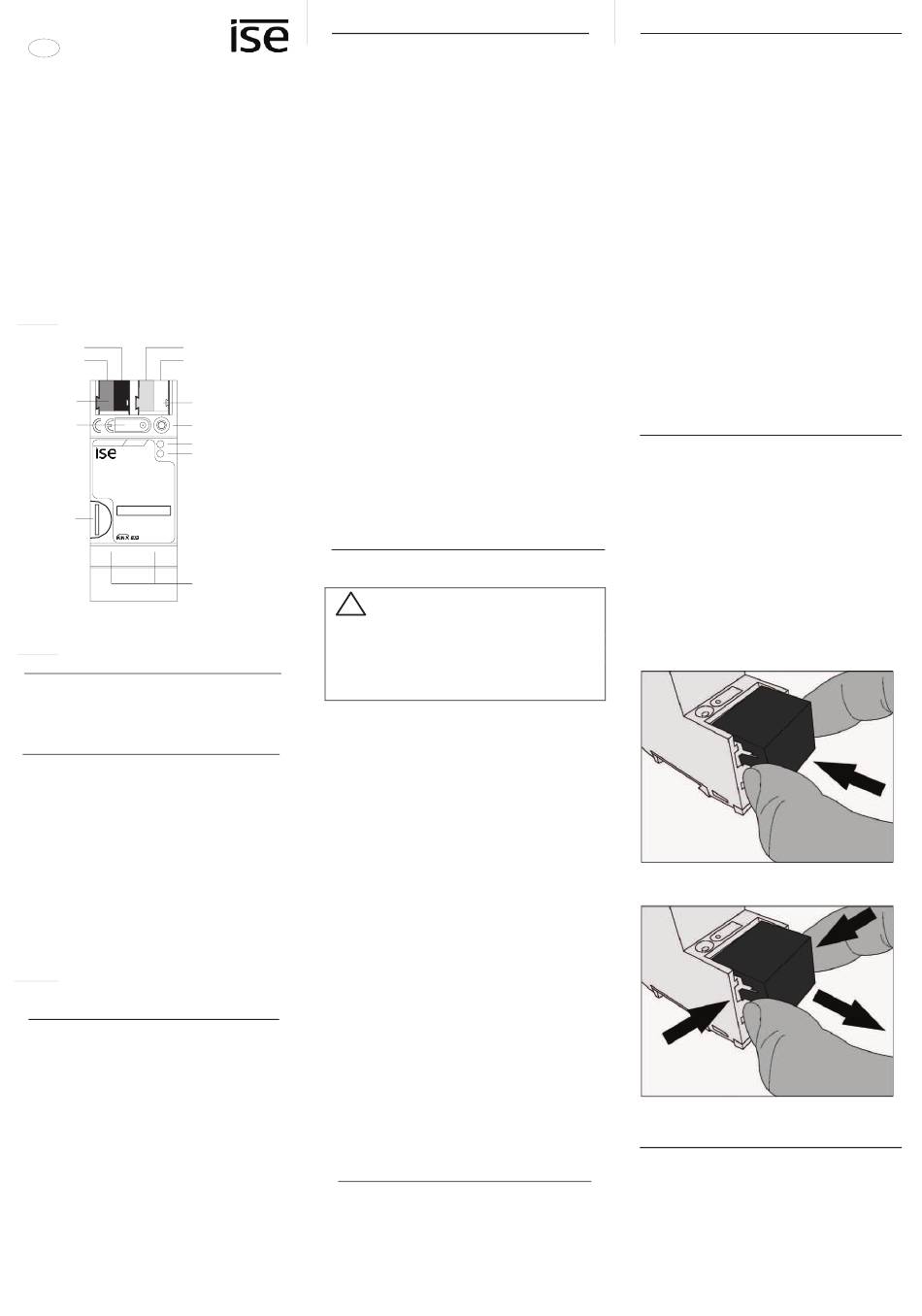

Figure 1
ise smart connect KNX Hue
Safety instructions
Installation and mounting of electrical devices may only
be carried out by qualified electricians.
Failure to observe the instructions can result in damage
to the device, fire or other dangers.
These instructions are part of the product
and must stay with the customer.
Device design
ise smart connect KNX Hue
1. Programming button
2. KNX connection
3. External power supply connection
4. Programming-LED: red
5. APP = Indicator used for the state of the application
6. COM = Traffic (KNX and IP) communication indicator
7. Network connections
)
8. microSD-card (no function
All manuals and user guides at all-guides.com Function
System Information
This device is a product of the KNX system and complies
with the KNX guidelines. Detailed specialist knowledge
gained in KNX training courses is assumed for
understanding.
Functionality of the device is dependent upon software.
Detailed information about software versions, specific ranges
of functions and the software itself can be found in the
manufacturer's product database. Planning, installation and
start-up of the device is with the aid of KNX-certified
software. The up-to-date product database and technical
descriptions are available on our internet page.
Proper use
With the KNX system, the innovative KNX adapter lets you
control up to 25 Hue lights via dimmer or switch. From warm
to lively, the lamps' LED technology opens up the wide
spectrum of light hues. Individual RGB values can be set for
each individual lamp. The KNX control element lets you
choose comfortably between complete light scenarios and
separate control.
Product features:
24 V DC
3
4
5
6
Information for electricians
Installation and electrical connection
7
!
!
Electric shock if live parts are touched in the
installation surroundings.
Electric shock may lead to death.
Isolate before working on the device.
Cover up live parts in the vicinity!
Mounting the device
Observe the temperature range. Ensure sufficient
cooling.
Attach the cover cap, figure 2
A cover cap must be attached to protect the
bus connection from dangerous voltages in
the connection area.
Remove the cover cap, figure 3
Start-up
control up to 25 Hue lights via ise smart
x
connect KNX and the Philips Hue-bridge
separately control up to 25 Hue lights via
x
dimmer or switch
individual control of RGB colour hues
x
possible
choose comfortably between complete light
x
scenarios and separate control
simple connection of visualisation systems
x
and facility management systems
For the latest version of the ETS 4 or ETS 5
x
DANGER!
Snap the device onto a top-hat rail according
x
to DIN EN 60715. See the illustration for
installation position.
Connect the external power supply to the
x
connection terminal (3). We recommend:
use the white-yellow connection terminal.
Connect the KNX line with the red-black
x
bus terminal (2).
Attach the cover cap over the KNX/external
x
power supply connection.
Connect the network connection to the
x
RJ pin jack with the RJ45 plug (7).
Guide the bus line to the rear.
x
Attach the cover cap over the bus terminal
x
until it engages.
Press the cover cap on the sides and remove.
x
Briefly press the programming button (1).
x
Programming LED (4) lights up red.
Assign the physical address.
x
Programming LED (4) goes out.
Label the device with the physical address.
x
Load the application software, parameters etc.
x
Appendix
Technical data
KNX medium TP1
Start-up mode S-Mode (ETS)
KNX supply
DC 21...30 V SELV
KNX current typ. 2,5mA
consumption
KNX connection Bus connection terminal
External supply DC 24...30 V
Voltage
Power consumption 2 W (with DC 24 V)
Connection Connection terminal
IP communication Ethernet 10/100 BaseT
(10/100 Mbit/s)
IP connection RJ45 pin jack
Ambient temperature 0 °C up to +45 °C
Storage temperature -25 °C up to +70 °C
Installation width 36 mm (2 HP)
microSD-card no function
Figure 2
Figure 3
Warranty
We provide a warranty in accordance with the statutory
requirements.
Please send the device postage paid with error description
back to us.
