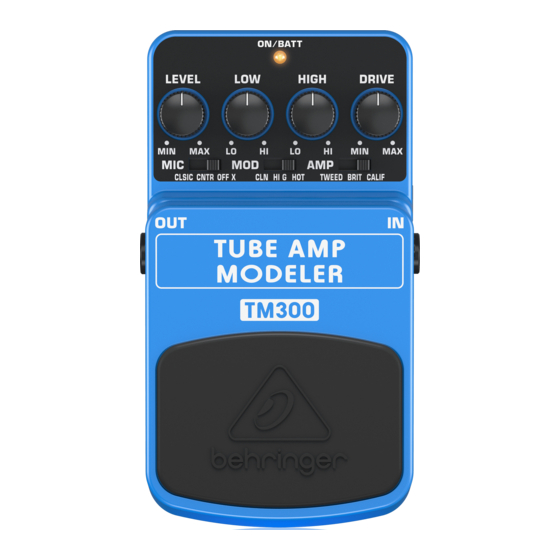

TUBE AMP MODELER TM300
Ultimate Tube Amp Modeling Effects Pedal
Thank you for showing your confidence in us by purchasing the Behringer
TUBE AMP MODELER TM300. This high-quality effects pedal provides
3 classic guitar amps, 3 gain modes and 3 mic placements for a total
of 27 configurations that let you easily achieve the most sought-after
tube amp sounds from clean, crunch to super-fat distortion. Thanks
to its high-performance features you can achieve the typical hard rock
or heavy metal distortion sounds.
1. Controls
The LEVEL control adjusts the output level.
(1)
The LOW control allows you to boost/cut the low-frequency range.
(2)
The HIGH control allows you to boost/cut the high-frequency range.
(3)
The DRIVE control adjusts the amount of overdrive effect.
(4)
The MIC switch simulates the microphone placement (orientation
(5)
and distance) in relation to the cabinet. Select CLSIC (Classic:
distant mic placement without ambience) to achieve high mid-
range content and a greater definition of notes like with classic
early tube amps. In CNTR (Center: close miking at the center of
a cone) you get greater high mid-range content and increased
low-end for mega crunchy results. OFF X (Off Axis: close miking
at the edge of a cone) is very similar to CNTR, but produces a
smoother, softer sound with less upper mid-range content;
perfect in combination with MODE position HOT.
Use the MODE switch to dial up one of 3 gain settings
(6)
(HOT, HI G, CLN) that you want to combine with the amp setting.
V 1.0
(2)
(1)
(5)
(6)
(11)
(8)
(3)
(4)
(7)
(10)
(9)
