DistanceMaster Compact Pro

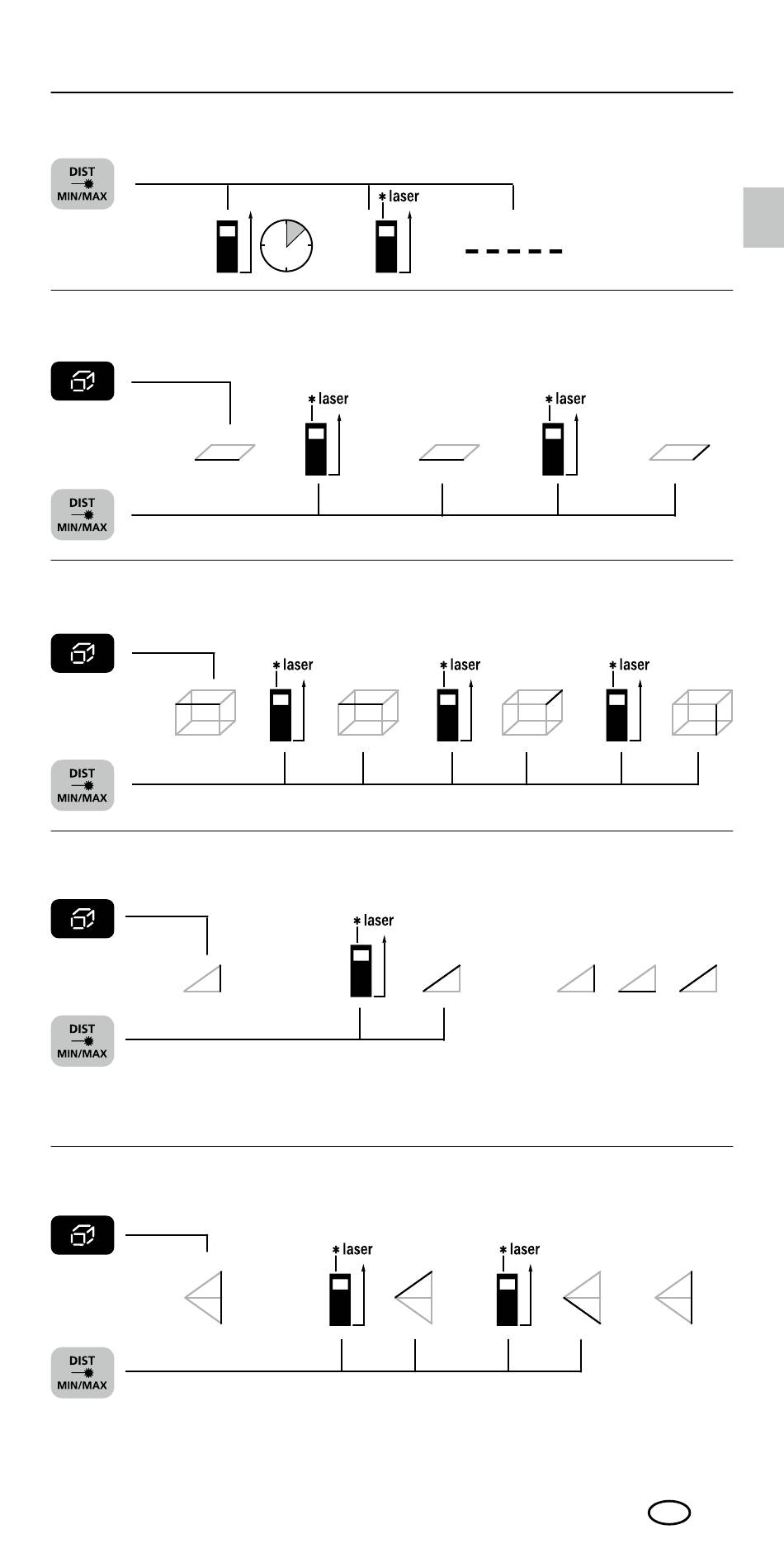

Length measurement:

device on laser on measure
1x 2x 3x
1 sec

Area measurement:

area laser on 1. measure- laser on 2. measure-
ment ment
1x 2x 3x 4x

Volume measurement:

volume 1. measurement 2. measurement 3. measurement
1x 2x 3x 4x 5x 6x
Angle function 1:
Angle function 1 measurement
1x 2x
results
The measurement results are determined automatically by the 360°
inclination sensor.
Angle function 2:
Angle function 2 1. measurement 2. measurement
1x 2x 3x 4x
result
height
The measurement result is determined by the 360° inclination sensor.
15
EN
