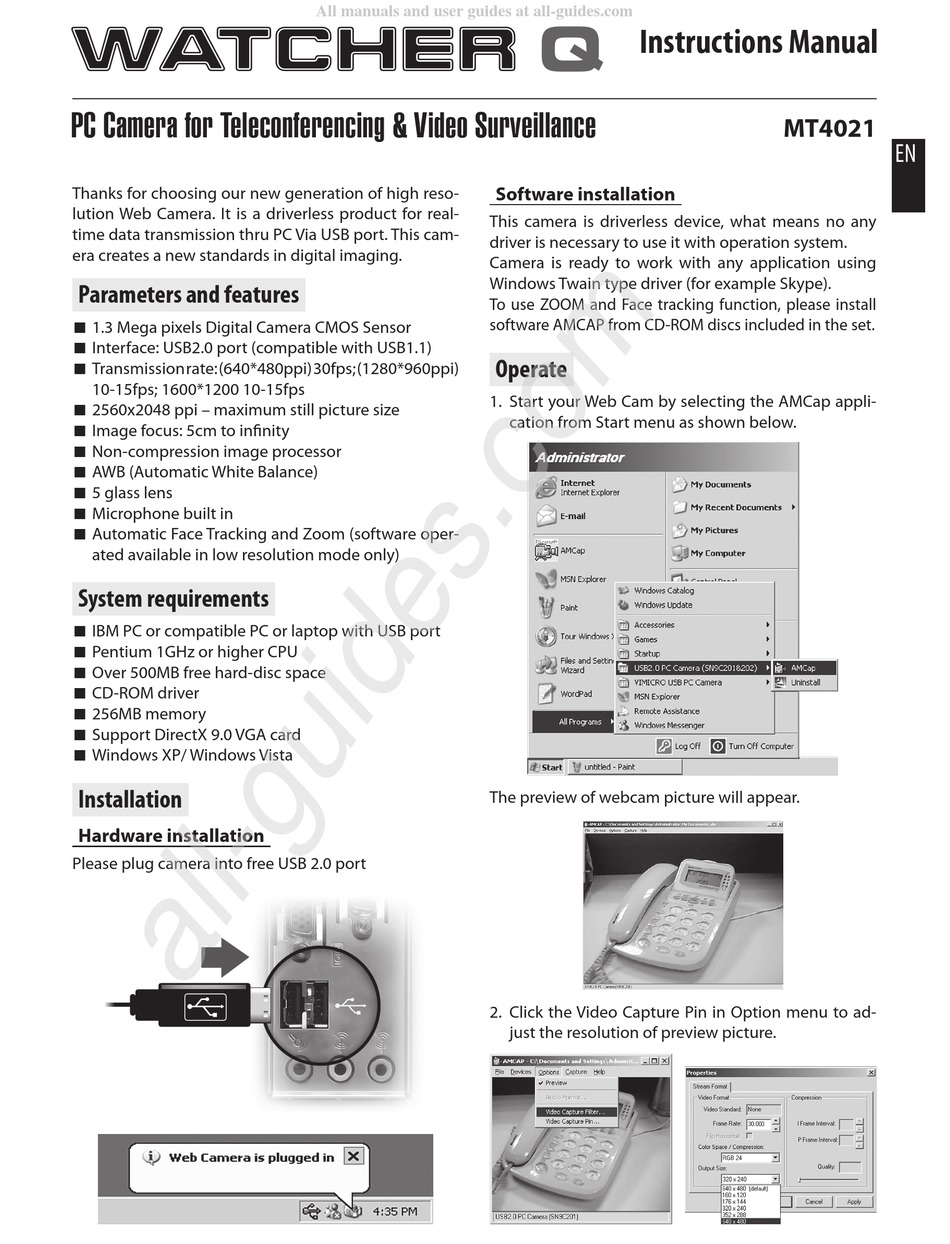

Media-Tech WATCHER Q Gebrauchsanleitung

WATCHER
PC Camera for Teleconferencing & Video Surveillance
Thanks for choosing our new generation of high reso-
lution Web Camera. It is a driverless product for real-
time data transmission thru PC Via USB port. This cam-
era creates a new standards in digital imaging.
Parameters and features
■ 1.3 Mega pixels Digital Camera CMOS Sensor
■ Interface: USB2.0 port (compatible with USB1.1)
■ Transmission rate: (640*480ppi) 30fps; (1280*960ppi)
10-15fps; 1600*1200 10-15fps
■ 2560x2048 ppi – maximum still picture size
■ Image focus: 5cm to infi nity
■ Non-compression image processor
■ AWB (Automatic White Balance)
■ 5 glass lens
■ Microphone built in
■ Automatic Face Tracking and Zoom (software oper-
ated available in low resolution mode only)
System requirements
■ IBM PC or compatible PC or laptop with USB port
■ Pentium 1GHz or higher CPU
■ Over 500MB free hard-disc space
■ CD-ROM driver
■ 256MB memory
■ Support DirectX 9.0 VGA card
■ Windows XP/ Windows Vista
Installation
Hardware installation
Please plug camera into free USB 2.0 port
All manuals and user guides at all-guides.com
Software installation
This camera is driverless device, what means no any
driver is necessary to use it with operation system.
Camera is ready to work with any application using
Windows Twain type driver (for example Skype).
To use ZOOM and Face tracking function, please install
software AMCAP from CD-ROM discs included in the set.
Operate
1. Start your Web Cam by selecting the AMCap appli-
The preview of webcam picture will appear.
2. Click the Video Capture Pin in Option menu to ad-
Q
Instructions Manual
cation from Start menu as shown below.
just the resolution of preview picture.
MT4021
EN
