4.1
Setup on a pole

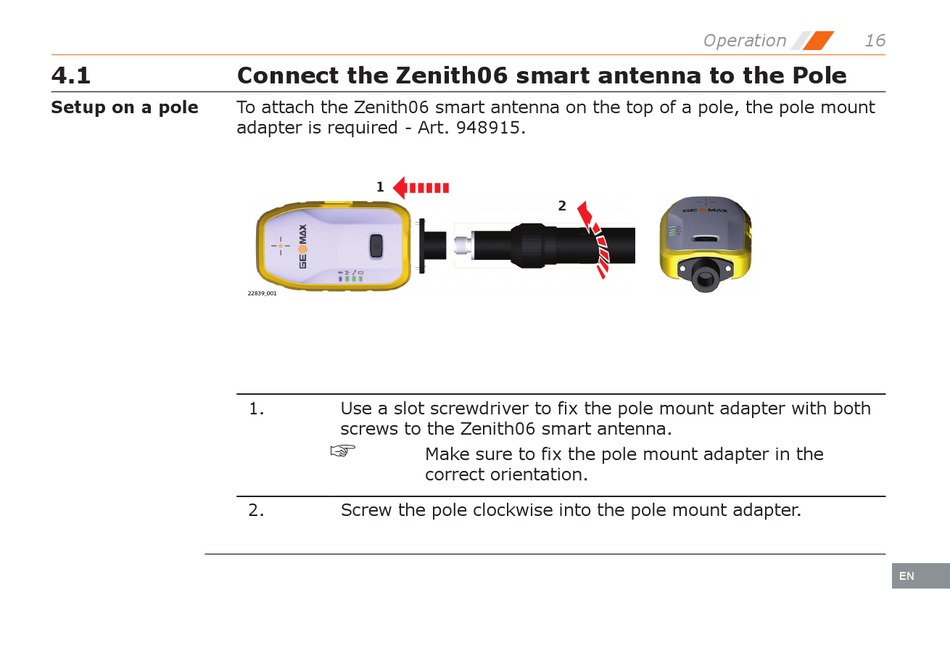

Connect the Zenith06 smart antenna to the Pole
To attach the Zenith06 smart antenna on the top of a pole, the pole mount
adapter is required - Art. 948915.
1
22839_001
1. Use a slot screwdriver to fix the pole mount adapter with both
screws to the Zenith06 smart antenna.
☞
2. Screw the pole clockwise into the pole mount adapter.
2
Make sure to fix the pole mount adapter in the
correct orientation.
Operation 16
en
