Mounting Dream MD2431-MX-03 Installationsanweisungen Seite 7

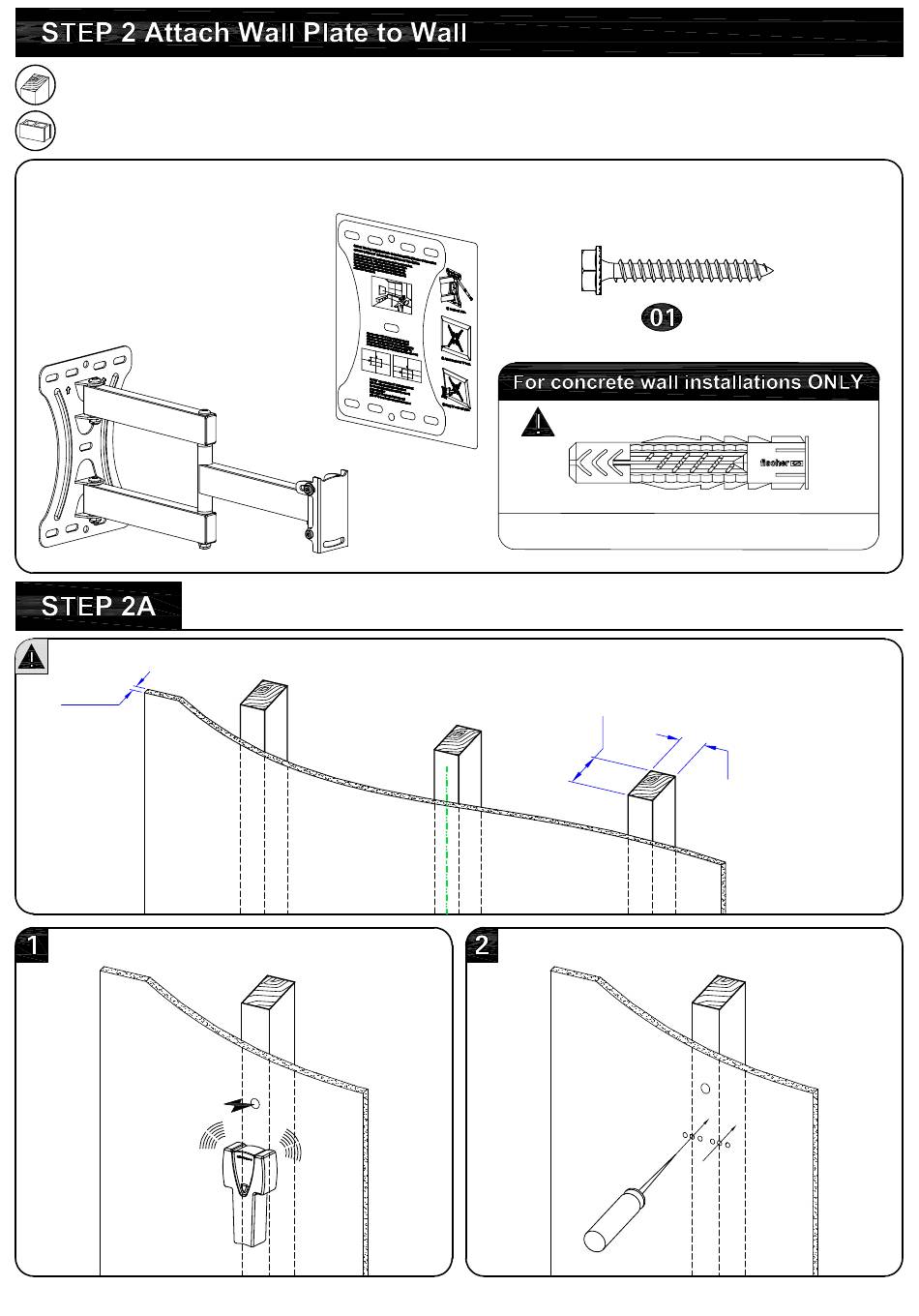

For wood stud installations, follow STEP 2A
For concrete installations, follow STEP 2B on PAGE 8
Wall Plate
Wood Stud Installations
<16mm
(5/8")
Parts and Hardware
Mounting
Template
Lag Bolt M7x70mm
CAUTION:
Fischer UX10x60 R
Concrete Wall Anchor 4pcs
Min. Wood Stud Size:
nominal 4"(102mm)
actual 3 1/2"(89mm)
x4
Do not use in drywall or wood
Min. Wood Stud Size:
nominal 2"(51mm)
actual 1 1/2"(38mm)
6
