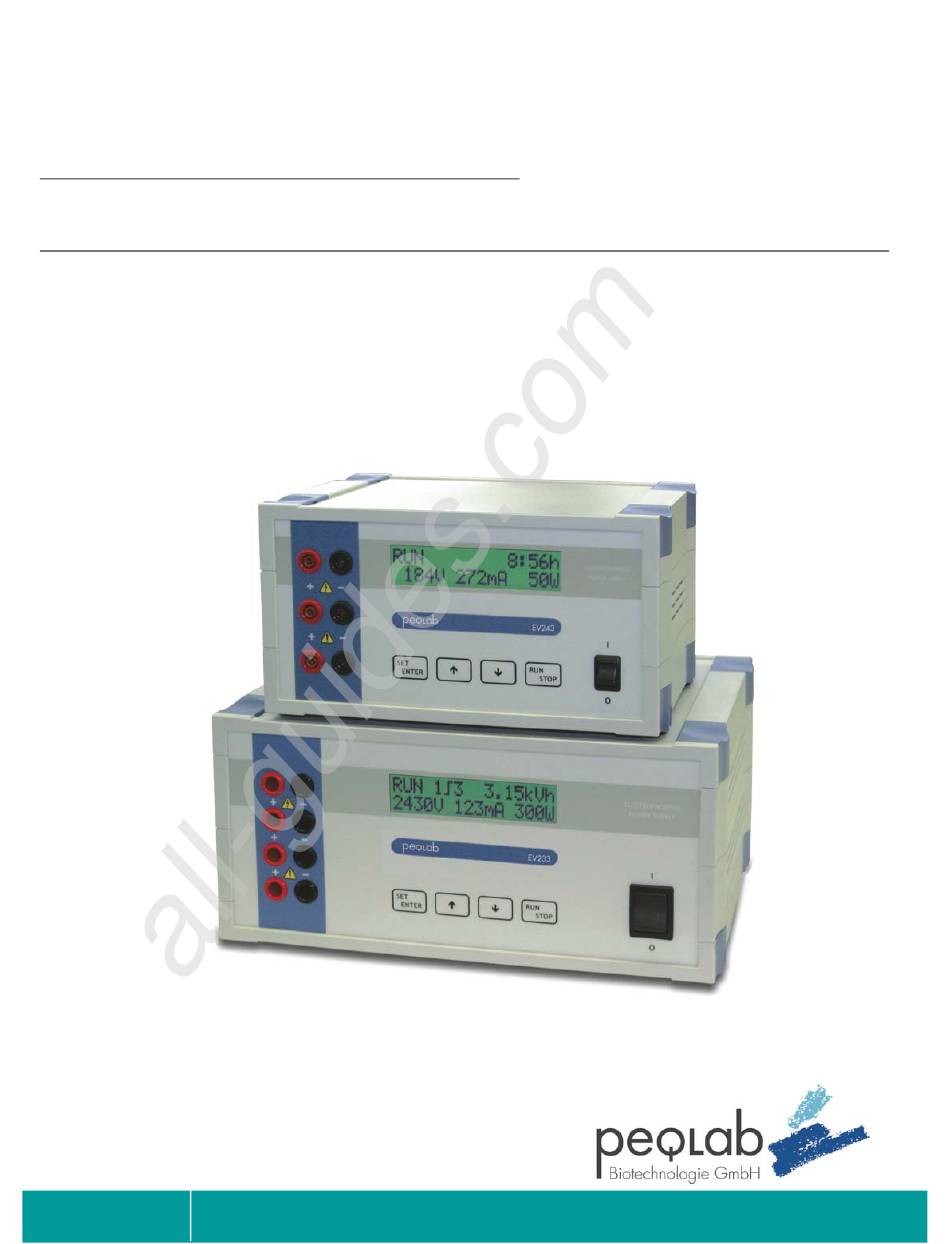

All manuals and user guides at all-guides.com Bedienungsanleitung/Instruction Manual PEQLAB Power Supplies EV200 Serie/EV200 Series Creating the future together. 1107 PEQLAB Biotechnologie GmbH_v0207E...
All manuals and user guides at all-guides.com Bedienungsanleitung PEQLAB Power Supplies EV200 Serie INHALT/CONTENTS EINFÜHRUNG DISTRIBUTOR HERSTELLER GARANTIE SERVICE BEDIENUNGSFELD SEHR WICHTIG SYSTEMEINSTELLUNGEN METHODEN-PROGRAMMIERUNG MANUELLE PROGRAMMIERUNG ÄNDERN DER ELEKTROPHORESEPARAMETER WÄHREND EINES LAUFES DATEN SPEICHERN ALARME INTRODUCTION DISTRIBUTOR MANUFACTURER WARRANTY SERVICING...
Unfall, unsachgemäßer Behandlung oder Modifikation des Gerätes durch den Anwender. Be- vor ein Gerät während der Garantiezeit zur Reparatur an PEQLAB zurückgeschickt wird, setzen Sie sich bitte mit unserem technischen Service in Verbindung. PEQLAB haftet nicht für Schäden, die aus dem...
All manuals and user guides at all-guides.com Beim Auftreten ernsthafter Fehlfunktionen schalten Sie bitte das Gerät sofort ab und kontaktieren den technischen Service von PEQLAB. BEDIENUNGSFELD ↑↓ = Taste, um einen bestimmten Wert einzustellen/Funktionswahltaste SET/ENTER = Taste zur Programmierung der gewünschten Parameter.
Wählen Sie INFO und drücken Sie SET, um algemeine information über das ---- EINSTELLEN ---- Elektrophoresenetzgerät anzuzeigen. ALARM STROM < 1 mA ALARM: ---- EINSTELLEN ---- STROMVERLUST STROMVERLUST DETEKTION: ---- EINSTELLEN ---- STAND-BY ---- EINSTELLEN ---- INFO PEQLAB Biotechnologie GmbH_V1107...
13. An dieser Stelle können Sie die Programmierung abschlie- ZEIT: 99:59h ßen oder durch Wiederholen der Schritte 6-13 im Falle eines mehrstufigen Programms die nächste Stufe definieren. 14. Wählen Sie den gewünschten Verlauf und drücken Sie SET. Drücken Sie RUN, um das Experiment zu beginnen. PEQLAB Biotechnologie GmbH_V1107...
(’stand-by Modu . Drücken S e nach Ändern de Parameter RUN, um das ’- Experiment for zusetzen oder 2 Sekunden lang SET, um in den ’stand-by’- Modus zurückzukeh en. 4. Wählen Sie MANUELL und drücken Sie SET. 5. Wählen Sie den gewünschten Spannungsgrenzwert und drücken Sie SET. PEQLAB Biotechnologie GmbH_V1107...
6. Das Experiment wird fortgesetzt. 400V 300mA • Spannungsgradienten können nicht während eines Laufes geändert werden. • Während eines Laufes geänderte Parameter werden nicht gespeichert. • Die Elektrophorese wird automatisch fo tgesetzt, wenn 10 Sekunden lang keine Taste betätigt wurde. PEQLAB Biotechnologie GmbH_V1107...
Dazu i t beim Hersteller eine Software erhältlich (www.consort.be). ----- DATEN ----- • Man kann jederzeit in den 'stand-by -Modus zurückkehren, indem man 2 ’ SPEICHERN Sekunden lang die Taste SET gedrückt hält. DATEN SPEICHERN: ----- DATEN ----- EINSTELLEN PEQLAB Biotechnologie GmbH_V1107...
SERVICE ANRUFEN (s. Frequently Asked Questions am Ende dieser Anleitung). SERVICE ANRUFEN Elektronikfehler im Gerät. Kontaktieren Sie den PEQLAB Support (service@peqlab.de) In manchen Fällen ist es hilfreich, das Sys em auf Werk einstellungen zurückzusetzen: Dazu halten Sie die SET-Taste gedrückt. Achtung: Alle gespeicherte Einstellungen und Daten we den gelöscht!
This instrument (excluding all accessories) is warranted against defective material and workmanship for a period of three years from the date of shipment. PEQLAB will repair all defective equipment returned during warranty without charge, provided the equipment has been used under normal laboratory condi- tions and in accordance with the operating limitations and maintenance procedures in this instruction manual and when not having been subject to accident, alteration, misuse or abuse.
Never block the ventilation holes or place the unit in any enclosure unless proper ventilation is pro- vided. • Never place the unit near or over a radiator, heat register or stove. • Avoid locations where the instrument is exposed directly to the sunlight. PEQLAB Biotechnologie GmbH_V1107...
Select INFO and press SET to see general information about the electrophoresis power supply. ---- SET-UP ---- ALARM CURRENT < 1 mA ALARM: ---- SET-UP ---- POWER FAIL POWER FAIL DETECTION: ---- SET-UP ---- STAND-BY ---- SET-UP ---- INFO PEQLAB Biotechnologie GmbH_V1107...
At any time, you can return in the stand-by mode by holding the SET button for 2 seconds. • At any time, you can avoid programming unnecessary parameters To do so, s mply press RUN ins ead of SET after entering the la t relevant PEQLAB Biotechnologie GmbH_V1107...
5. Select the desired voltage limit and press SET. CURRENT: 300mA 6. Select the desired current limit and press SET. 7. Select the desired power limit and press SET. 8. Enter the desired time-units (hours or kilovolt hours) and ENTER press SET POWER: PEQLAB Biotechnologie GmbH_V1107...
Temporarily changed parameters are not kept in memory.other pro- grammed parameters in memory. • 1∫1 99:59h The instrument will automatically return to the run mode when no but- ton has been pressed during 10 seconds. 400V 300mA PEQLAB Biotechnologie GmbH_V1107...
Stored data can be transferred to a computer via the RS232 output using a software (www.consort.be). LOG DATA • At any time, you can return in the stand-by mode by holding the SET but- ton for 2 seconds. FOR: ----- DATA ----- DATA: ----- DATA ----- SET-UP PEQLAB Biotechnologie GmbH_V1107...
Frequently Asked Questions at the end of this manual. CALL SERVICE CALL SERVICE Failure in the electronics. Contact the PEQLAB technical service (service@peqlab.de) You may also t y a general RESET: switch the instrument on while keeping the SET button pressed. Attention! All stored program and data will be erased.
However, current and power may differ due to differences between them even when exactly the same model, gel, buffers, etc... are used. Therefore, it is recommended to run several electrophoresis units only in the constant voltage mode on the same power supply. PEQLAB Biotechnologie GmbH_V1107...
0...95%, non condensing POWER REQUIREMENTS 210...250 VAC, 50/60 Hz, 210...250 VAC, 50/60 Hz, 210...250 VAC, 50/60 Hz, 200 W 360 W 360 W 31x26x15 cm 31x26x15 cm 31x26x15 cm DIMENSIONS (WxDxH) WEIGHT 6 kg 10 kg 10 kg PEQLAB Biotechnologie GmbH_V1107...
Seite 21
GROUND LEAKAGE DETECTION OVERLOAD DETECTION COMPUTER CONTROL 3600 values DATA-LOGGING RS2_2 9600 b/s AMBIENT TEMPERATURE 0...40°C RELATIVE HUMIDITY 0...95%, non condensing POWER REQUIREMENTS 210...250 VAC, 50/60 Hz, 360 W DIMENSIONS (WxDxH) 31x26x15 cm WEIGHT 10 kg PEQLAB Biotechnologie GmbH_V1107...
This instrument (excluding all accessories) is warranted against defective material and workman-ship for a period of three years from the date of shipment. PEQLAB will repair all defective equipment returned during warranty without charge, provided the equipment has been used under normal labo- ratory conditions and in accordance with the operating limitations and maintenance procedures in this instruction manual and when not having been subject to accident, alteration, misuse or abuse.
Seite 23
All manuals and user guides at all-guides.com PEQLAB Biotechnologie GmbH_V1107...
Seite 24
All manuals and user guides at all-guides.com Bedienungsanleitung PEQLAB Power Supplies EV200 Serie Deutschland Österreich United Kingdom PEQLAB Biotechnologie GmbH PEQLAB Biotechnologie GmbH PEQLAB Ltd. Carl-Thiesch-Str. 2b Zweigniederlassung Linz 25 Barnes Wallis Road 91052 Erlangen Hafenstr. 47-51 Fareham PO15 5TT...
