[EN] Included in delivery
1 × Allen key
„
Hexagon screws ( number of screws in accordance with
„
height of SCALA and with number of installation parts)
2 fixing brackets for each shelf/box, lacquered in the
„
colour of shelf/box

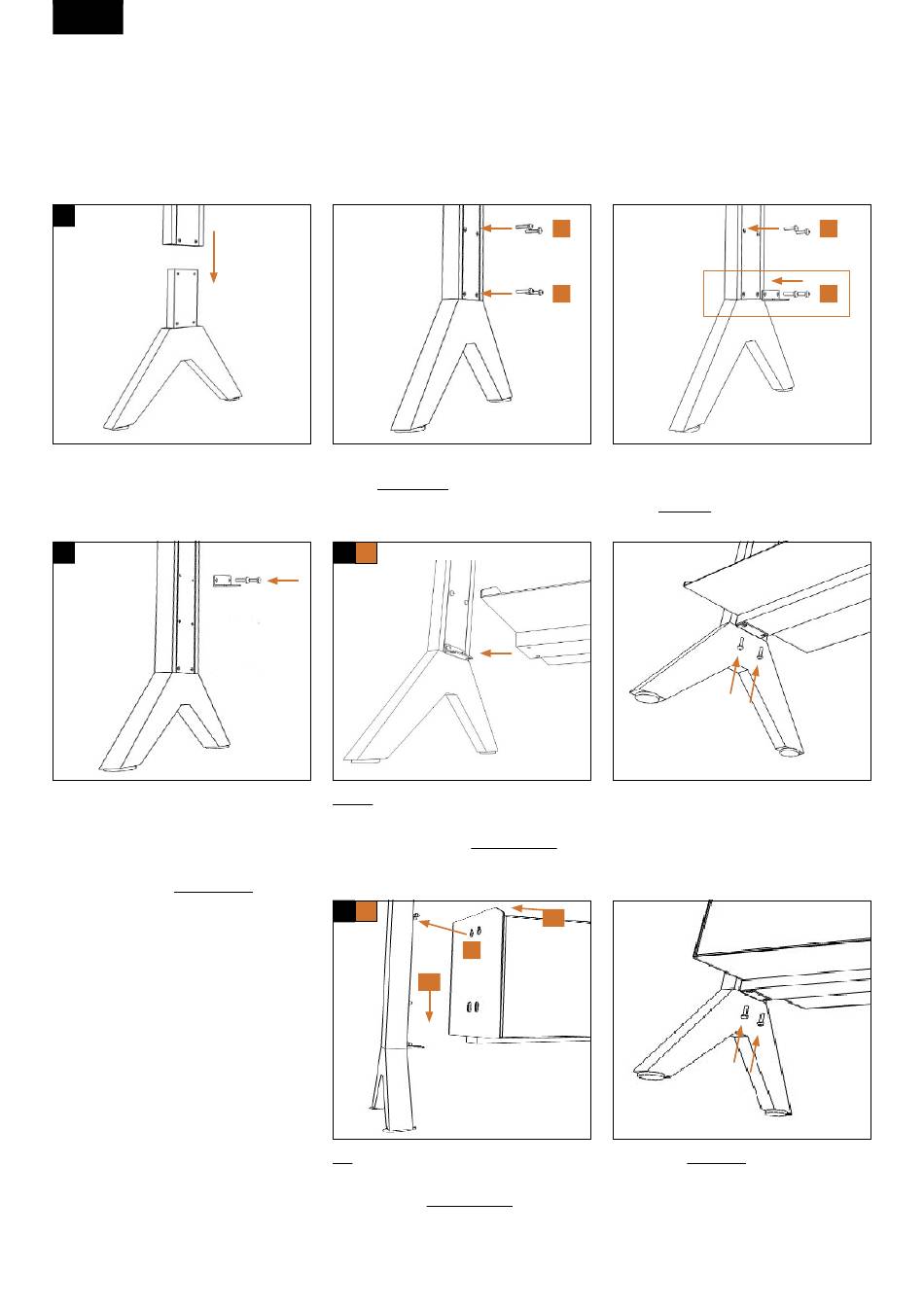

1.
Assembling Y-foot stand:
Insert the Y-foot stand into the sidebar.
Fix it with 4 screws.
2.
Mounting fixing brackets:
All fixing brackets are lacquered according to
the colour of the shelf/box. Screw the apro-
priate fixing bracket at the required position
onto the sidebar and tighten it firmly.
04
Attention:
box/shelf. For assembling SCALA the brackets have to be removed
first.
Tighten all 4 screws firmly (1) and (2), if
there is no shelf/box planned for the
2 lowest levels.
3 . A
Either:
Inserting first shelf
Screw the fixing bracket with loose fitting
from the bottom.
3. B
1
2 b
Or:
Inserting first box
1 . Screw 2 bolts with loose fitting
onto the sidebar.
2. Attach the box from above.
for transport the fixing brackets are mounted under the
1
2
Attention:
If a shelf or a box is planned at the
2 lowest levels, screw the apropriate fixing
bracket now firmly onto the sidebar (2).
2 a
Screw it with loose fitting from the bottom.
1
2
