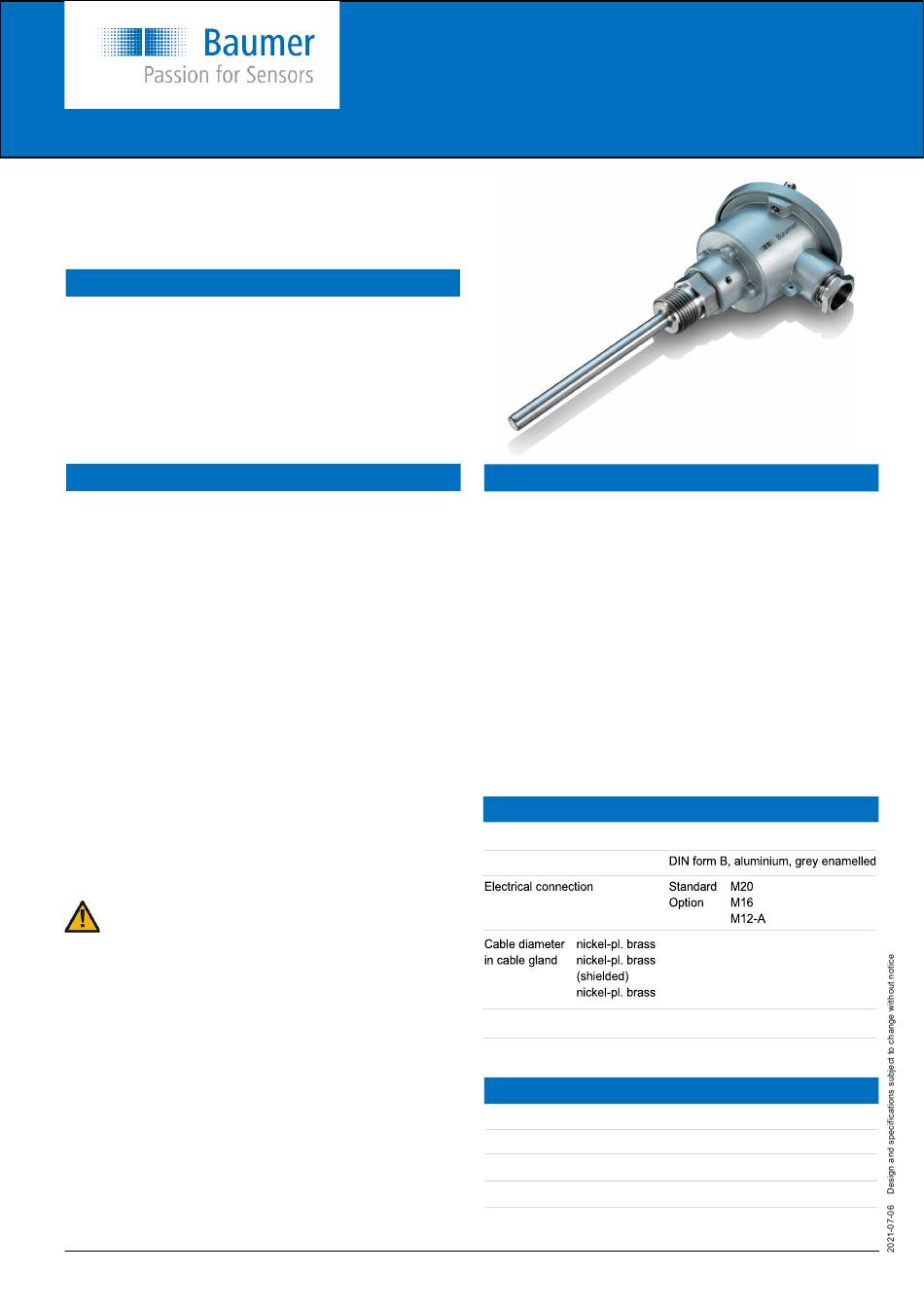

CombiTemp™ TCR6 is a temperature sensor, based on RTD technolo-
gy, which is designed and produced to meet the requirements in general
industry where threaded connections are used.
Description
CombiTemp™ TCR6 comprises a series of basic elements which can be
combined in various ways to a CombiTemp TCR6 temperature sensor.
The product offers great flexibility in respect to modification, service and
maintenance.
The sensor can be made to feature a RTD output signal or with a built in
FlexTop™ temperature transmitter types 2202, 2211, 2221 with 4-20 mA
output and the type 2231 with Profibus output (for documentation of
FlexTops, please see relevant data sheet or operating instructions).
Safety instructions
This instrument is built and tested according to the current EU-directives
and packed in technically safe conditions. In order to maintain this condi-
tion and to ensure safe operation, the user must follow the hints and
warnings given in this instruction.
During the installation the valid national rules have to be observed. Ig-
noring the warnings may lead to severe personal injury or substantial
damage of property.
The product must be operated by trained staff. Correct and safe opera-
tion of this equipment is dependent on proper transport, storage installa-
tion and operation.
All electrical wirings must conform to local standards. In order to prevent
stray electrical radiation, we recommend twisted and shielded input
cables and also to keep power supply cables separated from the input
cables. The connection must be made according to the connection dia-
grams.
Before switching on the power supply take care that other equipment is
not affected. Ensure that the power voltage and the conditions is the
environment comply with the specification of the device.
Before switching of the power supply voltage, check the possible effects
on other equipment and the processing system.
WARNING
For electrical installations and commissioning of the explosion protected
devices, the data given in the conformity certificate as also the local
regulations for installation of electrical apparatus within explosion pro-
tected areas must be considered. The intrinsically safe versions can be
mounted in the explosion hazarded area according to its specification
and only connected to a certified intrinsically safe supply loop with the
corresponding electrical values.
After mounting of the device - do check that the housing has a ground
potential.
The product contains not replaceable parts, except from insert and/or
FlexTop transmitter if selected. In case of malfunction the product must
be sent to Baumer for repair.
www.baumer.com
Operating instructions for temperature sensor
TCR6
Industrial temperature sensor
ATEX application - configuration
Valid for FlexTop™ 2202 / 2211 / 2221
The FlexProgrammer configuration unit must not be connected to the
FlexTop within the hazardous area.
Configuration procedure:
a. Disconnect mains from the 4...20 mA loop circuit
b. Disconnect the product from the circuitry within the hazardous area
c. Bring the product to the safe area
d. Connect the FlexProgrammer and perform the configuration
e. Reinstall the product in the hazardous area
f. Connect the power supply to the circuit
Valid for FlexTop™ 2221 only
Configuration for the FlexTop™ 2221 can be made within the hazardous
area by means of a handheld HART configurator, providing the precau-
tions and guidelines described in the product's manual are observed.
Technical specifications
Sensor and connection material Stainless steel, AISI 316L
Housing
Media temperature
Ambient temperature (cable)
Environment
Pressure
Humidity
Protection class
Vibrations
Operating instructions: 11119033 10
M16 3 ... 9 mm
M16 5 ... 9 -
M20 8 ... 13 -
-50...400°C on sensor tube tip
-50...160°C w. RTD output
-50...85°C w. transmitter
≤100 bar
<98% RH, condensing
IP65
GL, test 2 (sensor tube <200 mm)
