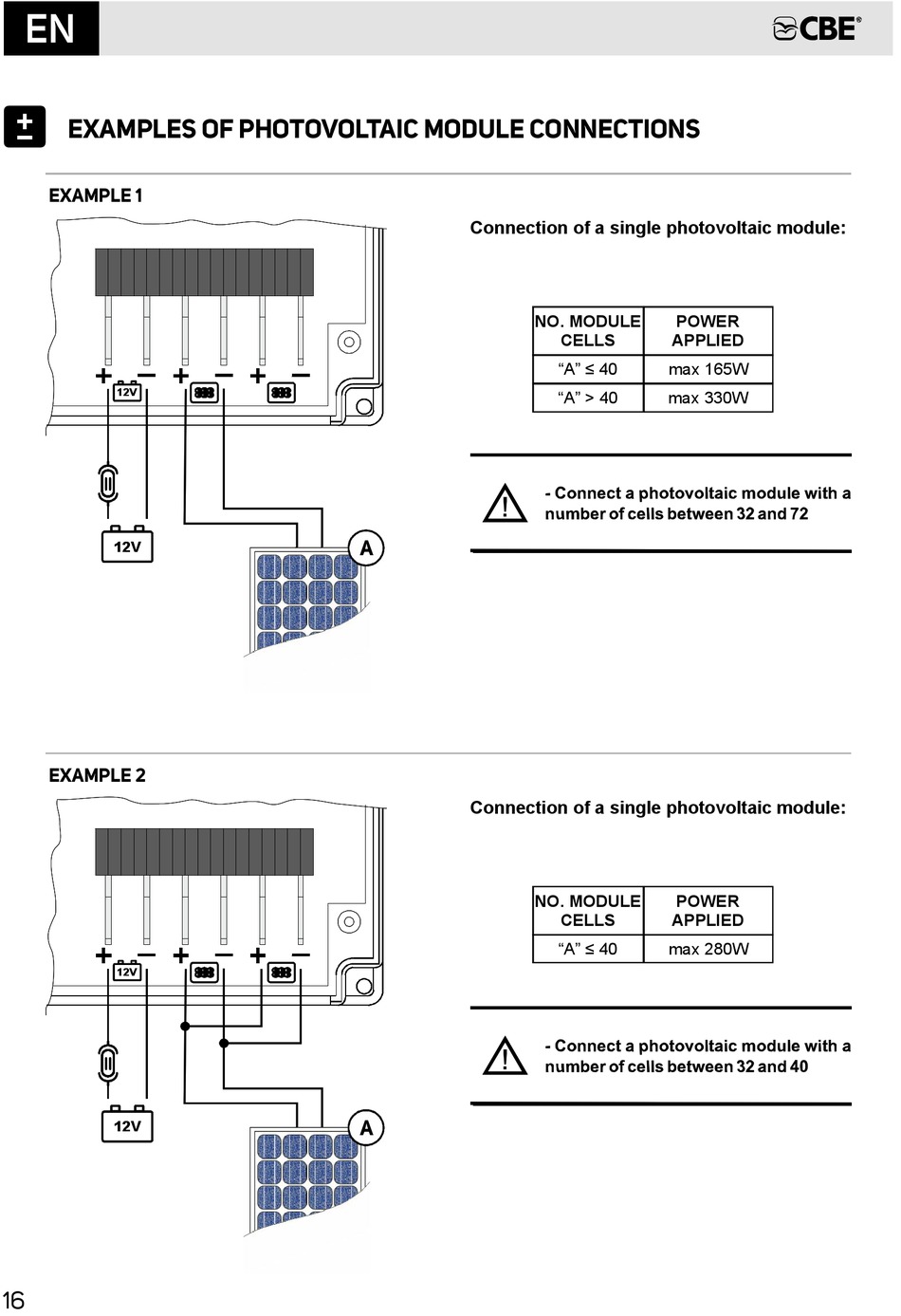

EXAMPLES OF PHOTOVOLTAIC MODULE CONNECTIONS

EX MPLE 1 A
12V 12V
12V 12V
EX MPLE 2 A
12V 12V
12V 12V
16
Connection of a single photovoltaic module:
A
Connection of a single photovoltaic module:
A
NO. MODULE POWER
CELLS APPLIED
"A" ≤ 40 max 165W
"A" > 40 max 330W
NO. MODULE POWER
CELLS APPLIED
"A" ≤ 40 max 280W
