OSRAM OPTOTRONIC OTi DALI 300/220-240/1A6 D NFC IND L Installations- Und Betriebshinweise

OPTOTRONIC

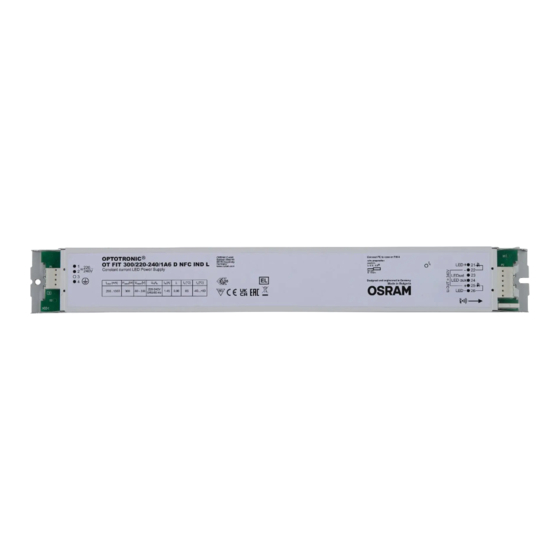

OTi DALI 300/220-240/1A6 D NFC IND L
1)
A
7)
Input
6)
C
l
out
1750
1500
1250
1000
750
500
250
0
0 5 10
R
set

Installing and operating information (non-isolated driver): Connect
only LED load type. LED module will be switched off when output
voltage drops below 60V or rises above 300V. Wiring information (see
fig. A, B): The light fixture maker is the final responsible for the prop-
er PE connection. Do not connect the outputs or LEDset interfaces
of two or more units. The DALI interface provides basic insulation
against mains. Output current adjustment = via LEDset interface (see
fig. C, e.g. by a basic insulated resistor), via software programming
using the DALI Interface or via Near Field Communication in mains
off mode only. Connect the unit to a DALI programmer (i.e. DALI
magic) and run at a PC the software Tuner4TRONIC - then follow the
instructions. www.osram.com/dali. For Near Field Communication
(NFC) please refer to Tuner4TRONIC. Unit is permanently damaged
if mains is applied to the terminals 21-26. Maximum whole length of
lines 21/26 (21/22–25/26) is less than 3 m exclusive modules unless
load cable (up to 5 m) is inside the closed luminaire. NOTE: the unit
delivers the programmed default current, only if the terminals 23 and
24 are shortened together, unless the LEDset2 interface is disabled
®
8)
Output
(R )
set
15 20
[kOhm]
LED Power Supply
B
Input
6)
( www. osram. com/ledset )
by the Tuner4TRONIC. Emergency Lighting: This LED power supply
complies with EN 61347-2-13 Annex J and is suitable for emergency
lighting fixtures according to EN 60598-2-22. Hereby, OSRAM GmbH
declares that the radio equipment type OTi DALI 300/220-240/1A6 D
NFC IND L is in compliance with Directive 2014/53/EU and the relevant
statutory instruments. The full text of the EU declaration of conform-
ity or the UK-declaration of conformity is available at the following
internet address: www.osram.com/ot-indoor-ce. Frequency range:
13 553 – 13 567 kHz. Technical support: www.osram.com, +49 (0)89-
6213-6000. 1) Constant current LED Power Supply; 2) t c point; 3) Con-
nect PE to case or PIN 4; wire preparation; push in; 4) Designed and
engineered in Germany; Made in Bulgaria; 5) picture only for reference,
valid print on product; 6) Mains; 7) Input; 8) Output; 9) Year; 10) Week
2) 3) 4)
picture only for reference, valid print on product 5)
7) 8)
Output
B16
B10
A
T
H
V AC
N
V DC
N
Year
11 x
7 x
≤ 6 A
4 ms
198 – 264 V
176 – 276 V
9) 10)
Week
