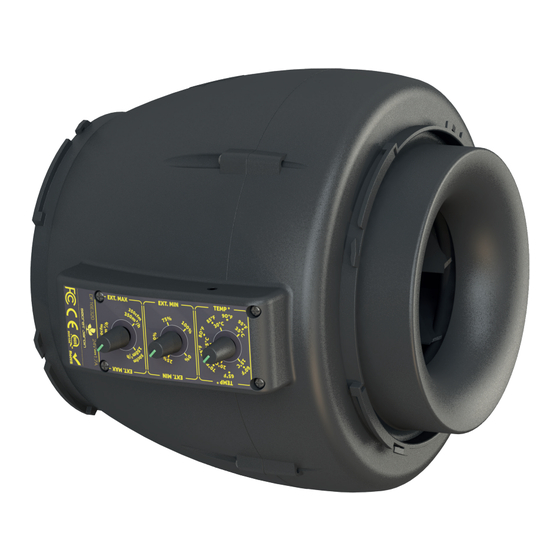

- Seite 1 I N S T R U C T I O N M A N U A L DF16 EXTRACTOR 1. Product setup - 2. User Interface - 3. Thermal Sensor 4. Technical data - 5. Safety guideline KIT CONTENT INCLUDED...
-
Seite 2: Product Set Up
PRODUCT SET UP EXTRACTOR INSIDE EXTRACTOR OUTSIDE INTAKE INSIDE INTAKE OUTSIDE 4 POSITIONS Extraction / Intake Inside / Outside... - Seite 3 PRODUCT SET UP /!\ For ease of installation, assemble your extractor to the Ducting Flange DF16 before connecting it to its 24volt power supply. /!\ Pour faciliter son installation, assembler votre extracteur à la Ducting Flange DF16 avant de le connecter à son alimentation 24volt.
-
Seite 4: User Interface
USER INTERFACE TEMP ° EXT. MIN EXT. MAX EXAMPLE Grow Space : DS120 EXT. MAX : 350m3/h - 90cfm TEMP° : 27°C - 80°F EXT. MIN : 20% > < 27°C/80°F 27°C/80°F T° T° (TARGET TEMPERATURE) (TARGET TEMPERATURE) 350m3/h 70m3/h 250cfm 41cfm (EXT. - Seite 5 USER INTERFACE 1. Choose your target temperature (TEMP°) The extractor will regulate the temperature with a delta of +/- 2°C (4°F) 2. Determine the minimum extractor speed (EXT. MIN) In order to continue to renew the air in case of low temperature. 3.
- Seite 6 THERMAL SENSOR Thermal sensor integrated & deported When the 2 thermal sensor is connected, the integrated sensor will be OFF. If you use the integrated thermal sensor, the extractor will run at 5% minimum speed. Capteur thermique intégré & déporté Lorsque le deuxième capteur thermique est connecté, le capteur intégré...
- Seite 7 THERMAL SENSOR CONFIGURATION 1 CONFIGURATION 2 INTEGRATED SENSOR THERMAL SENSOR...
-
Seite 8: Technical Data
TECHNICAL DATA ADVISED VALUE GROW ROOM TENT VOL. Advised MAX EXT. Advised FILTERS DS60 60x60x160cm 0.6m3 150m3/h DF16F150 DS90 90x90x180cm 1.4m3 250m3/h DF16F250 120x120x200cm DS120 2.9m3 350m3/h DF16F350 GROW ROOM TENT VOL. Advised MAX EXT. Advised FILTERS DS60 2x2x5¼ft 20ft3 90cfm DF16F150 DS90... - Seite 9 SAFETY Thank you for choosing to purchase a Secret Jardin product. Before using your device, please read this manual carefully. • Safety Guidelines Read the rating label (stuck on each device) make sure that the voltage conforms to your electricity supply •...
- Seite 10 Vielen Dank, dass Sie sich für den Kauf eines Secret Jardin-Produktes entschieden haben. Bitte lesen Sie dieses Handbuch sorgfältig durch, bevor Sie Ihr Gerät benutzen.
- Seite 11 SAFETY Bedankt voor uw keuze om een Secret Jardin product te kopen. Lees deze handleiding zorgvuldig door voordat u het apparaat in gebruik neemt. Veiligheidsinstructies Lees het evaluatie-etiket (dat op elk apparaat is aangebracht) en zorg ervoor dat de spanning overeenkomt met uw stroomvoorziening •...
- Seite 12 WE AGOMOON SRL, DRÈVE DE LA COURTE AU BOIS- 5, 7170 MANAGE, BELGIUM Declare under our sole responsability that the product(s) Product Name : Product Reference : // DF16 Extractor T° 150/250/350m3/h UE/UK/US // DF16E350 // DF16 Extractor T° 90/150/210cfm UE/UK/US // DF16E350...
