18 DVA2000

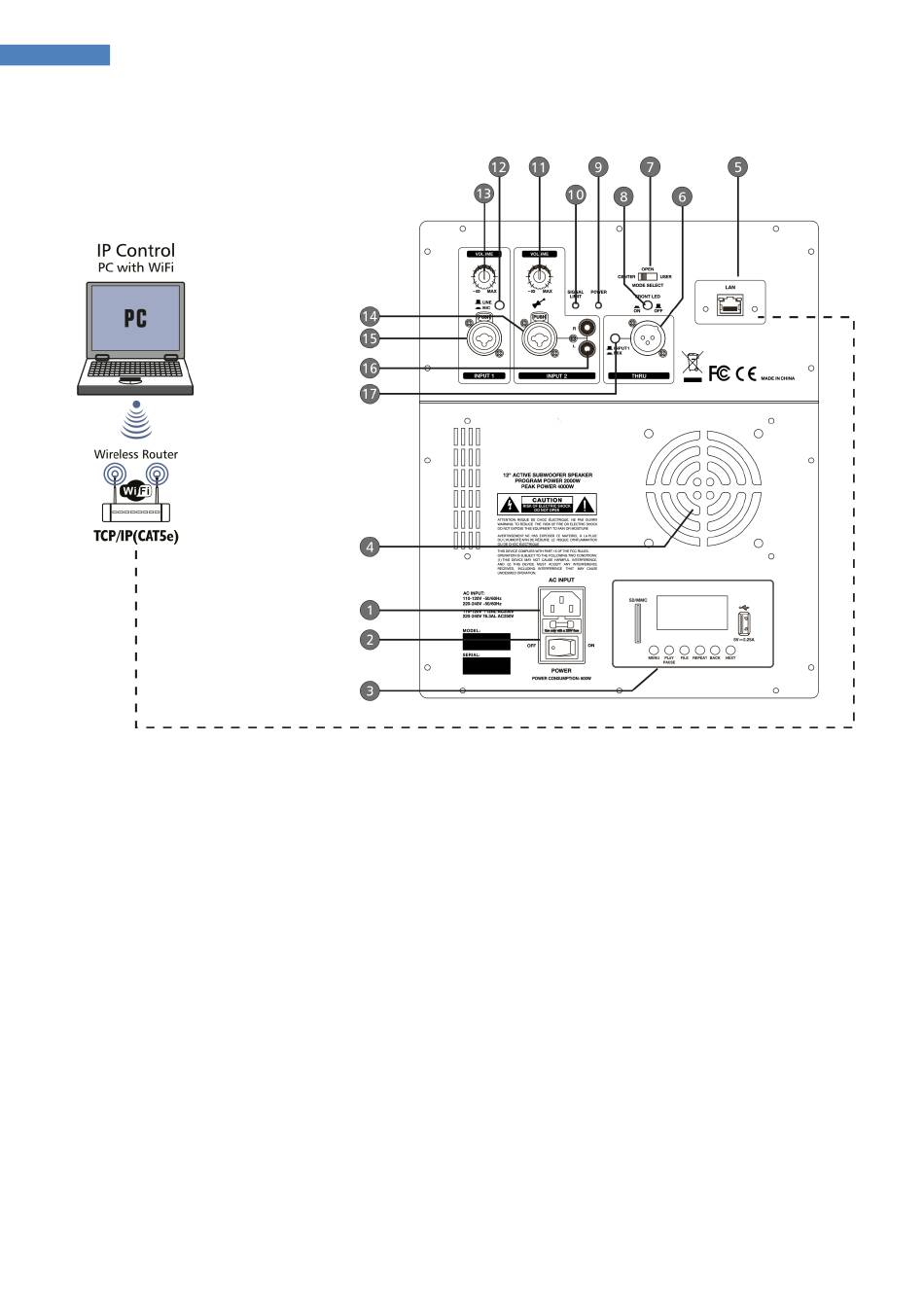

Part 3: Connections, operating and display elements:

Mains connection -
1.
Power switch
2.
USB/SD-Player, BLUETOOTH®
3.
Fan
4.
RJ45-Socket ETHERNET
5.
THRU-Out -
6. For connecting the amplifier of a monitor system or for active speakers or recording
devices.
Setting the sound picture –
7.
OPEN: Both column elements are each oriented 45 ° to the left and right
Switch for front LED
8.
Indicator ON -
9.
Indicator LIMIT -
10.
protect the speakers.
Insert the mains cable here.
CENTER: Both column elements are aligned straight.
Lights up when the device is connected to the mains and switched on.
Lights when the signal level is too high and the level limit is lowered to
