RC-DQ
DIGITAL REMOTE CONTROLLER
INTENDED USE
This wired remote controller is only designed for use in conjunction with the ESX devices D66SP, D68SP, QM66SP, QL810SP and QL812SP in order to
remotely control certain functions of the DSP.
1
Connect the remote controller to the ESX DSP at the REMOTE EXTENSION input using the included connection cable.
Lay before the connection cable through the vehicle.
If you want to use the control function for the volume of the subwoofer level, you must first set an subwoofer output via the DSP via software / app.
2
Multiple outputs can be set as subwoofer outputs, which can be controlled by the subwoofer level controller.

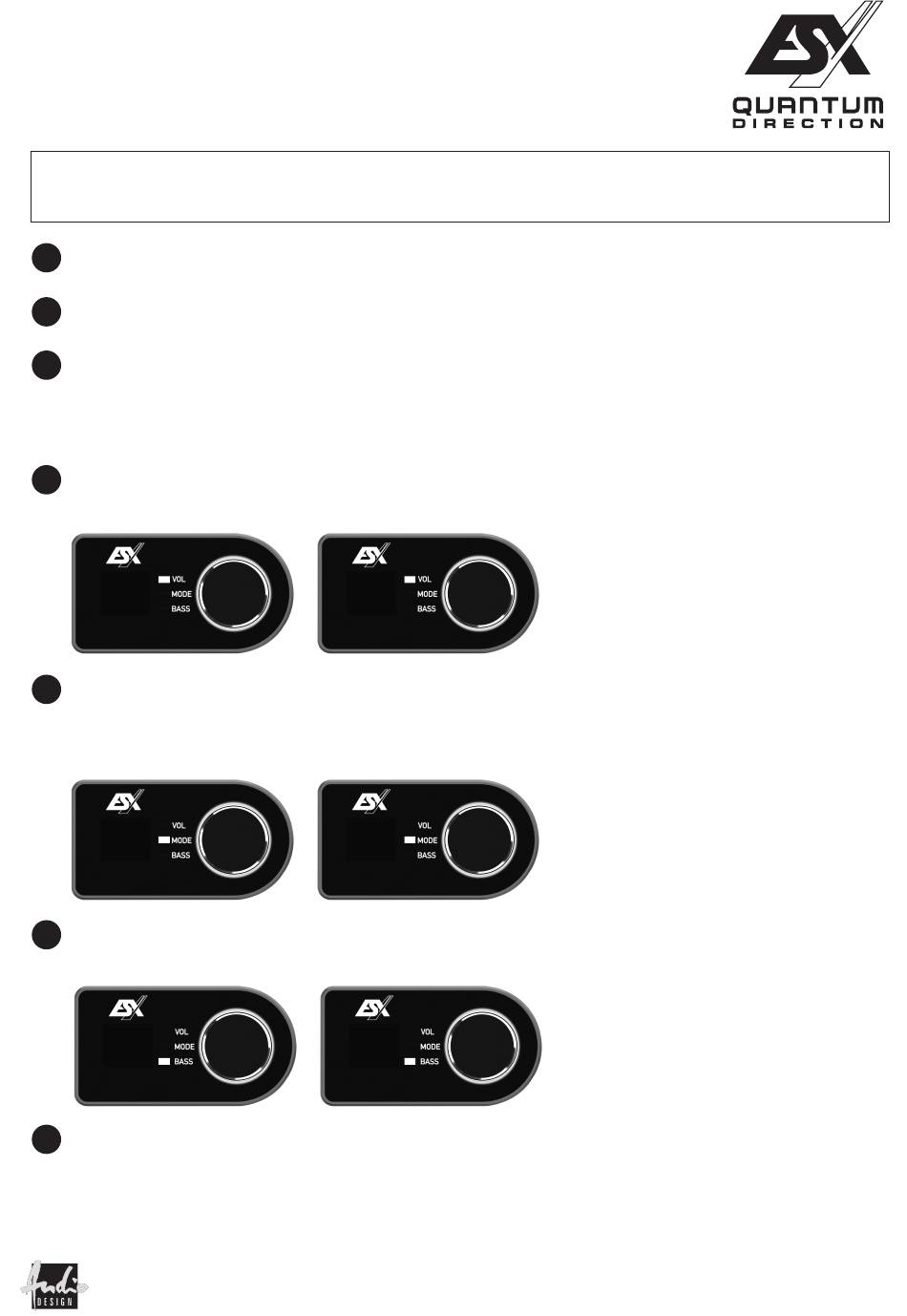

VOL - MODE - BASS
3
You can switch between the three functions of the remote control by pressing the rotary control.
If the LED at VOL lights up, the "Overall Volume" function is active.
If the LED at MODE lights up, the "Preset Selection" function is active.
If the LED at BASS lights up, the "Volume of the Subwoofer Level" function is active.
VOL - Overall Volume
4
If the remote controller is in the VOL function, the overall volume of the sound system can be regulated with the rotary control.
The control range is from 0 to 60.
0
MOD - Preset Selection
5
If the remote controller is in the MODE function, the desired preset can be selected with the rotary control. You can save up to eight presets on
the DSP. The control range is from 1 to 8. The flashing MODE LED signals that the selection is not the currently used preset. You can load
the currently selected preset by pressing the rotary control. You can only choose between the presets that are actually stored in the DSP.
After loading the display jumps back to the VOL function.
1
BASS - Volume of the Subwoofer Level
6
If the remote controller is in the BASS function, the volume of the subwoofer level can be adjusted with the rotary control. Please refer to the
information in section 2 above. The control range is from –9 to +9. The setting 0 corresponds to the level set in the DSP.
-9
7
NOTE
If the DSP is connected to a PC via USB or to the smartphone app via Bluetooth
