SET-UP

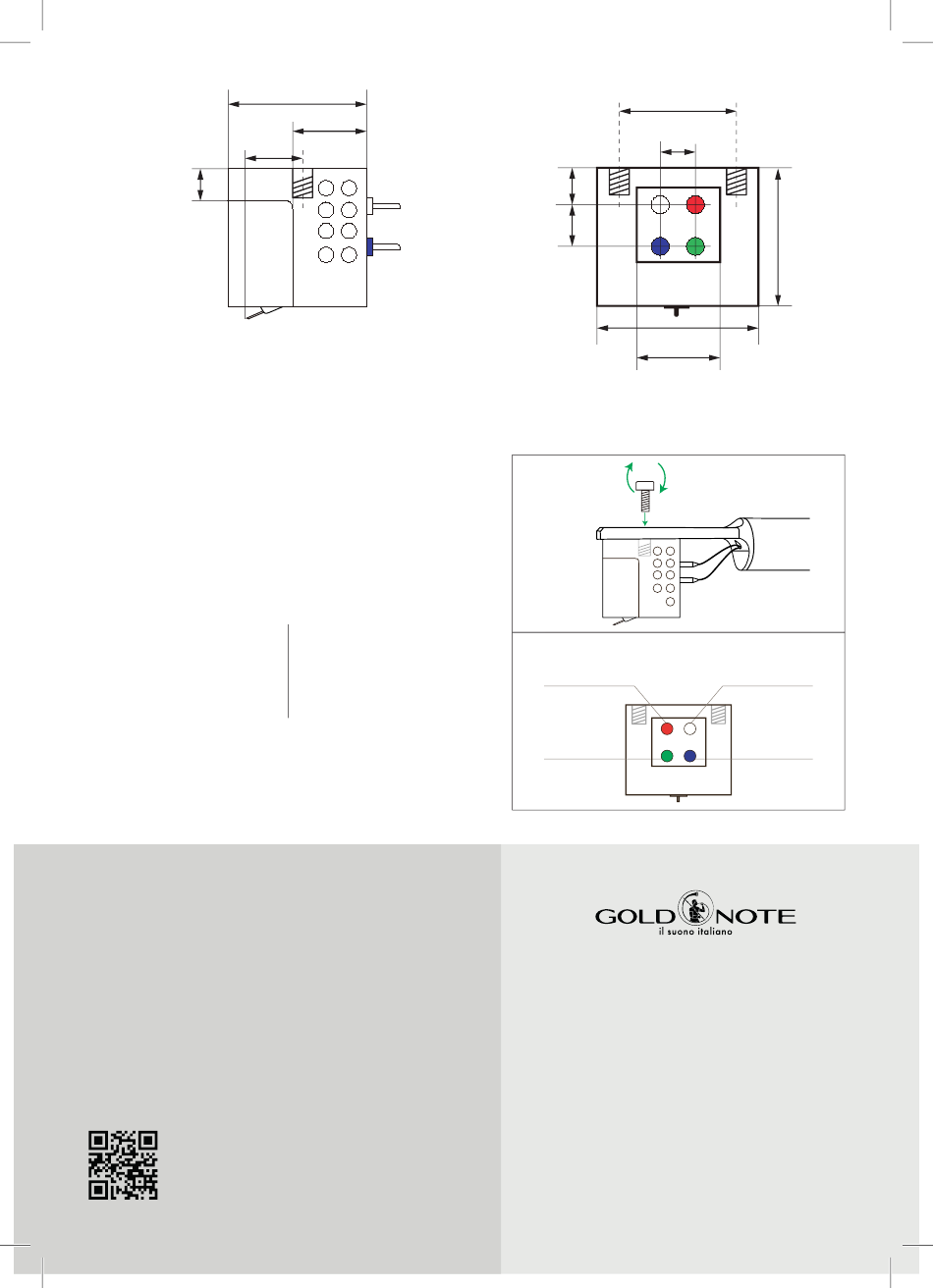

Mount the cartridge on the tonearm head-shell using
the supplied Allen Wrench and one set of the 2,5mm
screws. Adjust it to the stylus position suggested for
your turntable system (see Fig.1).
The output terminals are colour coded for ease of use
(see Fig.2). Please ensure to connect the terminals to
the colour matched head-shell lead of the tonearm.
TUSCANY GOLD
Suggested load
47Ω
Suggested tracking weight
1.8 to 2.1g
NOTE
Applying heat to the output terminals of the cartridge
will cause internal damage to the cartridge.
Designed and handmade
in Firenze, Italy
www.goldnote.it
service@goldnote.it
More info on
our website
11mm
TUSCANY RED
Suggested load
>200Ω
Suggested tracking weight
1.8 to 2.1g
