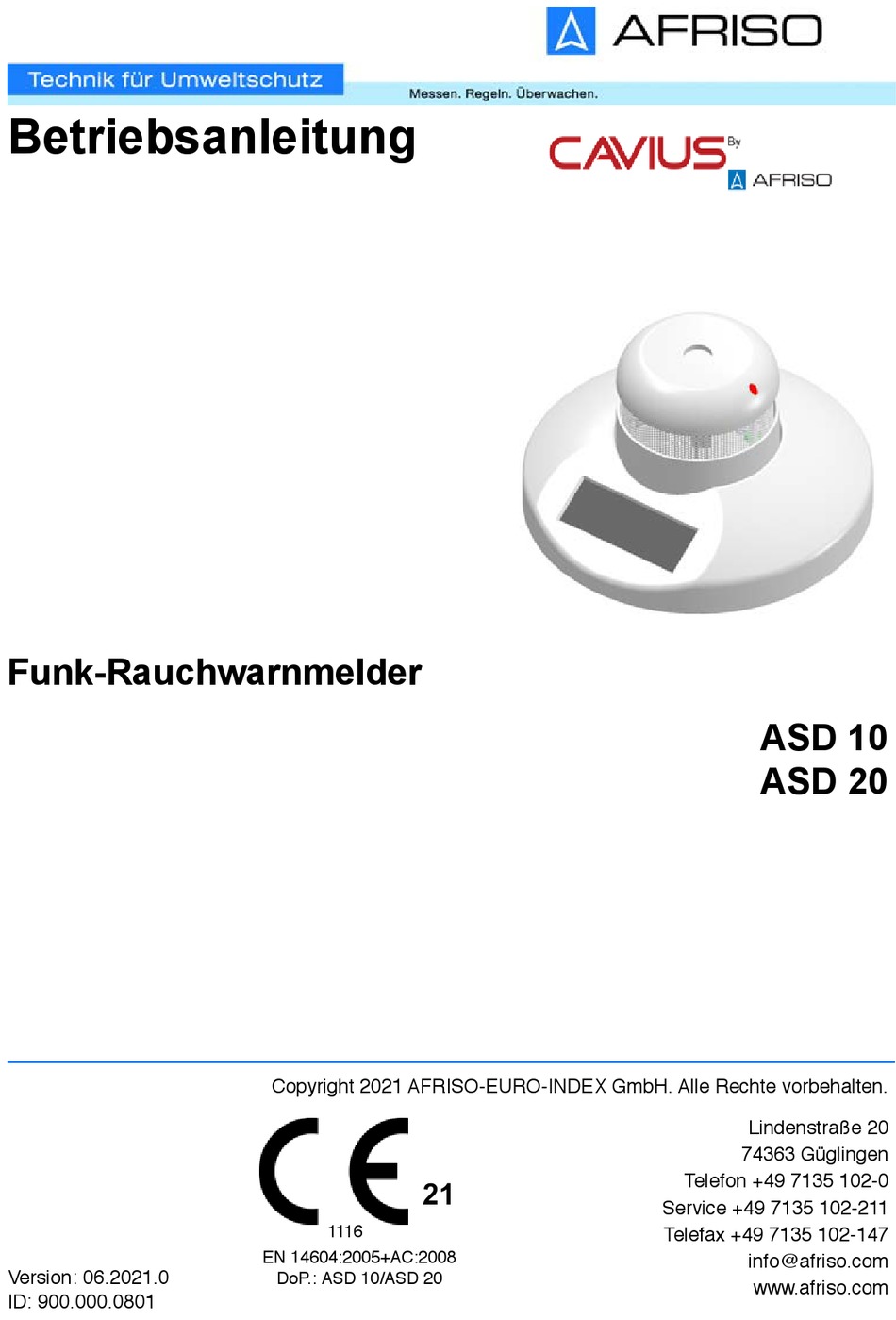

Betriebsanleitung Funk-Rauchwarnmelder ASD 10 ASD 20 Copyright 2021 AFRISO-EURO-INDEX GmbH. Alle Rechte vorbehalten. Lindenstraße 20 74363 Güglingen Telefon +49 7135 102-0 Service +49 7135 102-211 1116 Telefax +49 7135 102-147 EN 14604:2005+AC:2008 info@afriso.com Version: 06.2021.0 DoP.: ASD 10/ASD 20 www.afriso.com...
Seite 2
Über diese Betriebsanleitung Über diese Betriebsanleitung Diese Betriebsanleitung beschreibt den „Funk-Rauchwarnmelder ASD 10“ und den „Funk-Rauchwarnmelder ASD 20“ (im folgenden auch „Produkt“). Diese Betriebsanleitung ist Teil des Produkts. • Sie dürfen das Produkt erst benutzen, wenn Sie die Betriebsanleitung vollständig gelesen und verstanden haben.
VORSICHT macht auf eine möglicherweise gefährliche Situation aufmerk- sam, die bei Nichtbeachtung einen Unfall oder Sachschäden zur Folge haben kann. HINWEIS HINWEIS macht auf eine möglicherweise gefährliche Situation aufmerksam, die bei Nichtbeachtung Sachschäden zur Folge haben kann. Funk-Rauchwarnmelder ASD 10/ASD 20...
Das Produkt eignet sich ausschließlich zur Erkennung von Rauchentwick- lung durch Feuer für den privaten Gebrauch. Der Sensorkopf Rauchwarn- melder ASD kann nur zusammen mit dem Funk-Montagesockel ASD 10 oder ASD 20 betrieben werden. Eine andere Verwendung ist nicht bestimmungsgemäß und verursacht Gefahren.
Seite 5
Gefährdungen auftreten können, die nicht direkt vom Produkt ausge- hen. Veränderungen am Produkt Führen Sie ausschließlich solche Arbeiten an und mit dem Produkt durch, die in dieser Betriebsanleitung beschrieben sind. Nehmen Sie keine Verände- rungen vor, die in dieser Betriebsanleitung nicht beschrieben sind. Funk-Rauchwarnmelder ASD 10/ASD 20...
Benutzen Sie für den Transport die Originalverpackung. • Lagern Sie das Produkt nur in trockener, sauberer Umgebung. • Stellen Sie sicher, dass das Produkt bei Transport und Lagerung stoßge- schützt ist. Nichtbeachtung dieser Anweisungen kann zu Sachschäden führen. Funk-Rauchwarnmelder ASD 10/ASD 20...
Seite 7
Produktbeschreibung Produktbeschreibung Übersicht A. Sensorkopf Rauchwarn- melder ASD B. Druckknopftaster (Test- knopf) C. Rote LED D. Funk-Montagesockel ASD 10/ASD 20 E. Solarzelle F. Montagezubehör G. Abdeckung/Halter H. Befestigungslöcher Funk-Rauchwarnmelder ASD 10/ASD 20...
Produktbeschreibung I. LRN-Taste J. Antenne K. Batteriefach für optionale Lithium-Batterie (3,6 V ½ AA) Abmessungen Ø 40 mm Ø 86 mm Funk-Rauchwarnmelder ASD 10/ASD 20...
Funktion Der Sensorkopf Rauchwarnmelder ASD kann nur zusammen mit dem Funk- Montagesockel ASD 10 oder ASD 20 betrieben werden. Eine Solarzelle erzeugt die nötige Energie. Der Sensorkopf Rauchwarnmelder ASD wird bat- teriebetrieben und hat eine Lebensdauer von etwa 10 Jahren. Eine schwa- che Batteriekapazität wird optisch und akustisch signalisiert.
Produktbeschreibung Technische Daten 4.5.1 Funk-Montagesockel ASD 10/ASD 20 Parameter Wert Allgemeine Daten Abmessungen (Ø B x H) 86 x 22 mm Gewicht 38 g Werkstoff Gehäuse PC/ABS Farbe Weiß, ähnlich RAL 9003 Temperaturmessbereich 0 ... 40 °C, ±1 K Umgebungsbedingungen Umgebungstemperatur Betrieb 0 ...
Seite 11
Lithium, 3 V, 1,6 Ah Lebensdauer 10 Jahre bei normalem Gebrauch (1 Test pro Woche) Alarm Schalldruckpegel 85 dB Umgebungsbedingungen Umgebungstemperatur Betrieb 4 ... 38 °C Umgebungstemperatur Lagerung -20 ... 60 °C Maximale Luftfeuchtigkeit 90 % (nicht kondensierend) Funk-Rauchwarnmelder ASD 10/ASD 20...
Problem Mögliche Ursache Fehlerbehebung Kein Funksignal Der Funk-Montageso- Legen Sie den Funk- ckel ASD 10/ASD 20 ist Montagesockel ASD 10/ nicht aufgeladen ASD 20 für ungefähr 10 Minuten in die Sonne. Legen Sie eine Lithium- Batterie in den Funk- Montagesockel ASD 10/ ASD 20 ein.
Störungsbeseitigung Problem Mögliche Ursache Fehlerbehebung Energiespeicher des Keine ausreichende Sorgen Sie für eine Funk-Montagesockels Beleuchtung Lichtquelle. ASD 10/ASD 20 ist ent- Lithium-Batterie entla- Setzen Sie eine (neue) laden den. Lithium-Batterie ein (siehe "Produktbe- schreibung"). Reichweiteneinschrän- Metallgegenstände oder Halten Sie einen Min-...
Werfen Sie Batterien niemals ins Feuer. • Halten Sie die angegebenen Umgebungsbedingungen ("Technische Daten") ein. • Verwenden Sie keine beschädigten, verformten oder heißen Batterien. • Achten Sie darauf, dass Batterien nicht in die Hände von Kindern gelan- gen. Funk-Rauchwarnmelder ASD 10/ASD 20...
Vor einer Rücksendung Ihres Produkts müssen Sie sich mit uns in Verbin- dung setzen (service@afriso.de). Gewährleistung Informationen zur Gewährleistung finden Sie in unseren Allgemeinen Geschäftsbedingungen im Internet unter www.afriso.com oder in Ihrem Kauf- vertrag. Ersatzteile und Zubehör HINWEIS BESCHÄDIGUNG DURCH UNGEEIGNETE TEILE •...
Seite 24
• Funkstandard • Funktechnologie • AN001 • AN102 • AN103 • AN201 14.3 Möglichkeiten der EnOcean®-Technologie Unterlagen über EnOcean®-Technologien finden Sie im Internet unter www.afrisohome.de. Auf unserem YouTube-Channel finden Sie eine Reihe von Videos zu AFRISO-Produkten. Funk-Rauchwarnmelder ASD 10/ASD 20...
Seite 25
Anhang Anhang 15.1 Nachweis für Ihre jährliche Überprüfung Anbringungsort Datum (Beispiel: Flur EG) Funk-Rauchwarnmelder ASD 10/ASD 20...
Seite 26
Anhang 15.2 EU-Konformitätserklärung Funk-Rauchwarnmelder ASD 10/ASD 20...
CNPP reserves the right to use the information which result from the present document to include them in works of synthesis or general interest, the envisaged works which can be published by its care. www.cnpp.com Siège Social : CS 22265 - F 27950 SAINT-MARCEL N° formateur 23270036727 Funk-Rauchwarnmelder ASD 10/ASD 20...
Seite 28
Règlement (UE) 305/2011 – Règlement Produit de Construction Trame AT FE – EN 14604 – Version 6 Tests carried out in view of delivery of a certificate of constancy of performance according to the Regulation (EU) 305/2011 - Construction Product Regulation Funk-Rauchwarnmelder ASD 10/ASD 20...
Seite 30
Anhang Funk-Rauchwarnmelder ASD 10/ASD 20...
Seite 31
Operating instructions Wireless smoke alarm ASD 10 ASD 20 Copyright 2021 AFRISO-EURO-INDEX GmbH. All rights reserved. Lindenstraße 20 74363 Güglingen Telephone +49 7135 102-0 Service +49 7135 102-211 1116 Telefax +49 7135 102-147 EN 14604:2005+AC:2008 info@afriso.com Version: 06.2021.0 DoP.: ASD 10/ASD 20 www.afriso.com...
Seite 32
About these operating instructions About these operating instructions These operating instructions describe the "wireless smoke alarm ASD 10" and the "wireless smoke alarm ASD 20" (also referred to as "product" in these operating instructions). These operating instructions are part of the product.
Seite 33
This is the general safety alert symbol. It alerts to injury haz- ards or equipment damage. Comply with all safety instruc- tions in conjunction with this symbol to help avoid possible death, injury or equipment damage. Wireless smoke alarm ASD 10/ASD 20...
The product may only be used for private use for the detection of smoke caused by fire. The sensor head smoke alarm ASD can only be operated in conjunction with the wireless mounting base ASD 10 or ASD 20. Any use other than the application explicitly permitted in these operating instructions is not permitted and causes hazards.
Seite 35
Modifications to the product Only perform work on and with the product which is explicitly described in these operating instructions. Do not make any modifications to the product which are not described in these operating instructions. Wireless smoke alarm ASD 10/ASD 20...
Store the product in a clean and dry environment. • Verify that the product is protected against shocks and impact during trans- port and storage. Failure to follow these instructions can result in equipment damage. Wireless smoke alarm ASD 10/ASD 20...
Seite 37
Product description Product description Overview A. Sensor head smoke alarm B. Pushbutton (test button) C. Red LED D. Wireless mounting base ASD 10/ASD 20 E. Solar cell F. Mounting accessories G. Cover/holder H. Fixing holes Wireless smoke alarm ASD 10/ASD 20...
Product description I. LRN key J. Antenna K. Battery compartment for optional lithium battery (3.6 V ½ AA) Dimensions Ø 40 mm Ø 86 mm Wireless smoke alarm ASD 10/ASD 20...
Seite 39
Function The sensor head smoke alarm ASD can only be operated in conjunction with the wireless mounting base ASD 10 or ASD 20. A solar cell generates the required energy. The sensor head smoke alarm ASD is battery-operated and has a service life of approximately 10 years. A low battery condition is indi- cated by visual and audible signals.
Product description Technical data 4.5.1 Wireless mounting base ASD 10/ASD 20 Parameter Value General specifications Dimensions (Ø W x H) 86 x 22 mm Weight 38 g Housing material PC/ABS Colour White, similar to RAL 9003 Temperature measuring range 0 ... 40 °C, ±1 K...
Seite 41
10 years with normal operation (1 test per week) Sound pressure of alarm 85 dB Ambient conditions Ambient temperature operation 4 ... 38 °C Ambient temperature storage -20 ... 60 °C Maximum humidity 90 % (non-condensing) Wireless smoke alarm ASD 10/ASD 20...
Seite 42
Mounting Mounting DC 3.6 V ½ AA Wireless smoke alarm ASD 10/ASD 20...
Seite 43
Mounting A. LRN key LRNTEL Wireless smoke alarm ASD 10/ASD 20...
Seite 44
Mounting min. 50 cm Wireless smoke alarm ASD 10/ASD 20...
Seite 45
Mounting Wireless smoke alarm ASD 10/ASD 20...
Seite 46
Mounting Wireless smoke alarm ASD 10/ASD 20...
Seite 47
Commissioning Commissioning 85 dB Wireless smoke alarm ASD 10/ASD 20...
Seite 48
Alarm Alarm 10 min. Wireless smoke alarm ASD 10/ASD 20...
Maintenance and cleaning Maintenance and cleaning > 3 months 85 dB > 3 months Replacing the sensor head See "Mounting" Wireless smoke alarm ASD 10/ASD 20...
48 seconds at the When this acoustic sig- sensor head smoke nal starts, the smoke alarm ASD alarm ASD can be oper- ated for another 30 days or 4 minutes in the case of an alarm. Wireless smoke alarm ASD 10/ASD 20...
Seite 51
Reduced range of the Metal objects or materi- Keep a minimum dis- wireless signals als containing metal in tance of 50 cm from the vicinity objects or walls. Other malfunctions Contact the AFRISO service hotline Wireless smoke alarm ASD 10/ASD 20...
Do not subject batteries to mechanical stress. • Never throw batteries into fire. • Comply with the specified ambient conditions ("Technical data"). • Do not use damaged, deformed or hot batteries. • Keep batteries out of the reach of children. Wireless smoke alarm ASD 10/ASD 20...
Returning the device Returning the device Get in touch with us before returning your product (service@afriso.de). Warranty See our terms and conditions at www.afriso.com or your purchase contract for information on warranty. Spare parts and accessories NOTICE DAMAGE DUE TO UNSUITABLE PARTS •...
Seite 54
AN102 • AN103 • AN201 14.3 Features of the EnOcean® technology Visit www.afrisohome.de for documents on EnOcean® technologies. A variety of videos on AFRISO products can also be found on the AFRISO YouTube channel. Wireless smoke alarm ASD 10/ASD 20...
Seite 55
Appendix Appendix 15.1 Annual function test confirmation Installation site Date (example: Hallway ground floor) Wireless smoke alarm ASD 10/ASD 20...
Seite 56
Appendix 15.2 EU Declaration of Conformity Wireless smoke alarm ASD 10/ASD 20...
Seite 57
CNPP reserves the right to use the information which result from the present document to include them in works of synthesis or general interest, the envisaged works which can be published by its care. www.cnpp.com Siège Social : CS 22265 - F 27950 SAINT-MARCEL N° formateur 23270036727 Wireless smoke alarm ASD 10/ASD 20...
Seite 58
Règlement (UE) 305/2011 – Règlement Produit de Construction Trame AT FE – EN 14604 – Version 6 Tests carried out in view of delivery of a certificate of constancy of performance according to the Regulation (EU) 305/2011 - Construction Product Regulation Wireless smoke alarm ASD 10/ASD 20...
