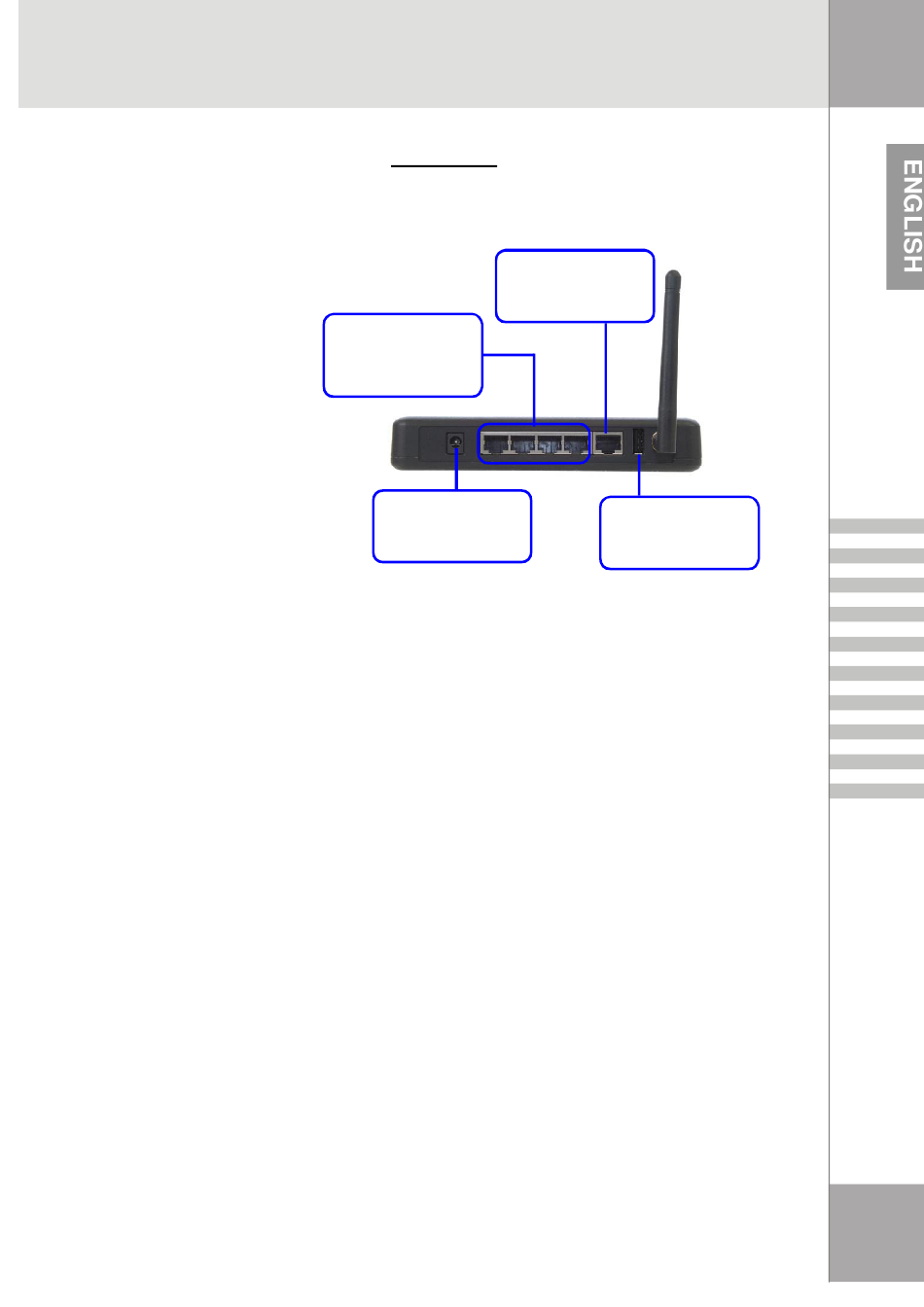

Back View
LAN Ports
The RG54GS2 provides four 10/
100Mbps RJ-45 ports, allowing
connection to computers and other
network devices.
Power Jack
Connect the enclosed power
adaper to provide power to the
RG54GS2.
Connecting Cables
1. To access to the Internet, connect one end of an
Ethernet cable to the W AN port of RG54GS2, and the
other end to your xDSL/Cable Modem.
2. For wired connection to the network devices, connect
one end of an Ethernet cable to the LAN port (1~4) of
RG54GS2, and the other end to your computers/
devices.
3. To connect the USB printer, connect one end of the
USB cable to the USB port of RG54GS2, and the other
end to your printer.
4. For wireless connection, install the wireless adapters
onto your computers, and you have to configure re
spective set tings on your computers (refer to your
wireless adapter's manual) to take full advantages of
the RG54GS2.
WAN Port
The 10/100Mbps Ethernet port
provides connection to your xDSL/
Cable Modem or Ethernet devices.
USB Printer Port
The USB 1.1 port is used to con-
nect the printer to provide print
server function.
