Induction loop kit AFIL-USB
With the AFIL-USB, an Intercom station can easily and quickly be equipped with an induction loop
amplifier module. For this, only a free USB port is required at the Intercom station. Thanks to its
compact size, the AFIL-USB fits easily into a flush or surface mounting box.

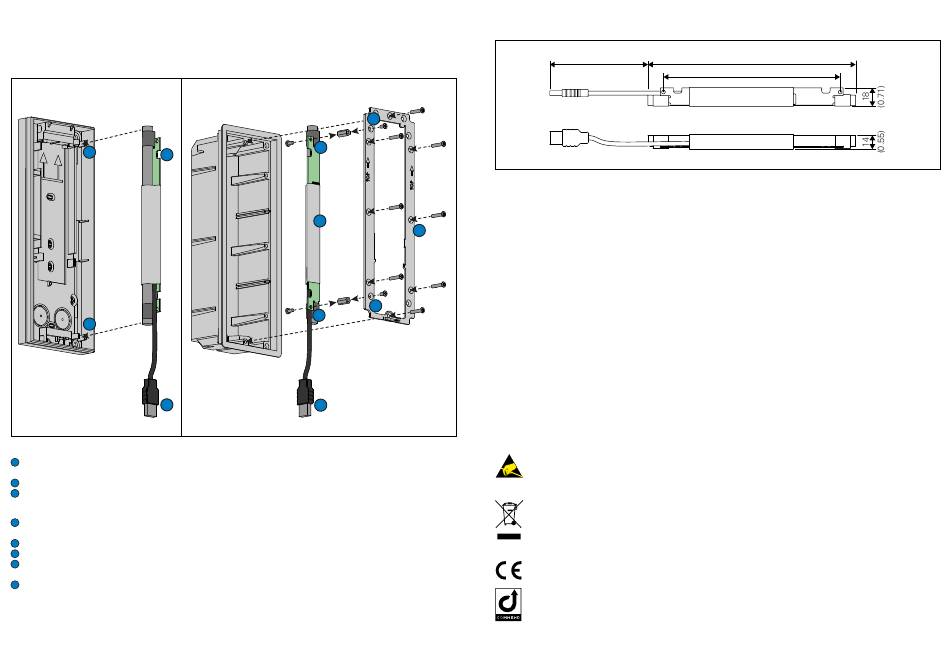

Mounting
Surface mount box ID5-SH
2
1
2
3
Mounting within the surface mount box ID5-SH
Make sure the AFIL-USB is in the correct position (USB cable is pointing down and the PCB is on the
1
right side).
Clip the AFIL-USB into the holder on the right-hand side within the surface mount box ID5-SH.
2
Connect the USB cable to a free USB port at the Intercom station.
3
Mounting within the flush mount box ID5-FB
Make sure the AFIL-USB is in the correct position (USB cable is pointing down and the PCB is
1
pointing at the mounting frame).
Fix the two spacer on the AFIL-USB using the two oval-head screws (both in extent of supply).
2
Fix the AFIL-USB on the mounting frame using the two countersunk screws (in extent of supply).
3
Mount the mounting frame to the flush mount box ID5-FB as described in the short reference
4
" D-BZ-ID5-FB" .
Connect the USB cable to a free USB port at the Intercom station.
5
Flush mount box ID5-FB
3
2
1
4
3
2
5
Dimensions
Measuring units in mm (in), not to scale!
approx. 95 (3.74)
Extent of supply
• AFIL module
• 2 spacer, 5.5 x 12 mm (0.22 x 0.47 in), M3 thread
• 2 oval-head screws, M3x6, hexalobular socket
• 2 Torx screws, KA 3 x 8 mm (0.12 x 0.32 in), hexalobular socket
• 2 countersunk screws, M3x6, hexalobular socket
• Short reference
Safety warnings
• This device shall be installed or replaced by trained and qualified personnel only.
• Only use recommended tools when installing the device.
• Due to the brittle ferrite material, there is an increased risk of breakage at the antenna rod.
• Do not place the device in areas where it may become wet or damp, and avoid dusty, humid and
high temperature environments.
• Metal structures significantly affect the performance of the induction loop system. The magnetic
field generated by an induction loop system induces a current in any closed path of a metal struc-
ture placed in the vicinity of the induction coil. These induced currents tend to weaken the magnetic
field and cause loss.
• Do not make any unauthorised modifications to the device.
Handling
Use the original packaging when transporting the device to prevent damage.
Observe the precautions for handling of electrostatic sensitive devices.
Disposal and recycling
Equipment with this symbol shall not be disposed of together with household or commercial
waste.
The directive 2012/19/EU on waste electrical and electronical equipment (WEEE) is applicable
in the European Union member states.
Manufacturer's reference
This device complies with the European directives listed below by fulfilling corresponding
standards:
• Electromagnetic compatibility (directive 2014/30/EU)
• The restriction of the use of certain hazardous substances in electrical and electronic
equipment (directive 2011/65/EU)
For technical specifications, see the respective data sheet.
For the latest software and documentation, visit: www.commend.com
Keep this description in safe custody.
Type: D-BZ-AFIL-USB, Version: 1.0/0717 Commend International GmbH, Saalachstraße 51, A-5020 Salzburg – www.commend.com
200 (7 .87)
170 (6.69)
