Alphacool International GmbH

Assembly Eisbecher 2 Aurora Glas

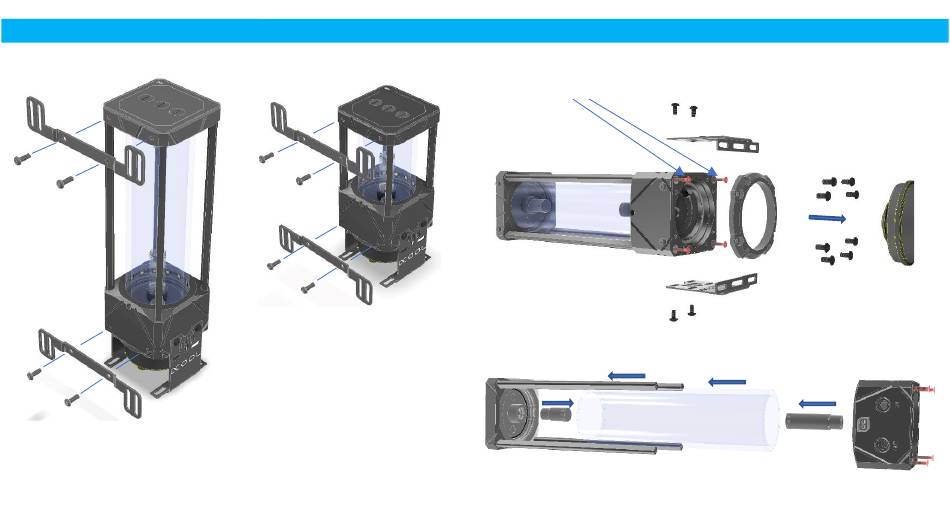

Bracket assembly:
Eisbecher 2 Aurora Glas
To mount the expansion tank, first screw
the brackets to the mounting clamps with
the four M4x12 screws. Then you can
mount the system at any 120mm or
140mm fan and radiator location.
Rising pipe positions:
Remove the pump and stand bracket, unscrew the screws marked in red.
Carefully pull out the lid with linkage and then the glass tube. Replace the riser tube
with your desired length.
English
11
