Behringer 962 Bedienelemente

Quick Start Guide
962 SEQUENTIAL SWITCH
Legendary Analog CV Multiplexer
Module for Eurorack

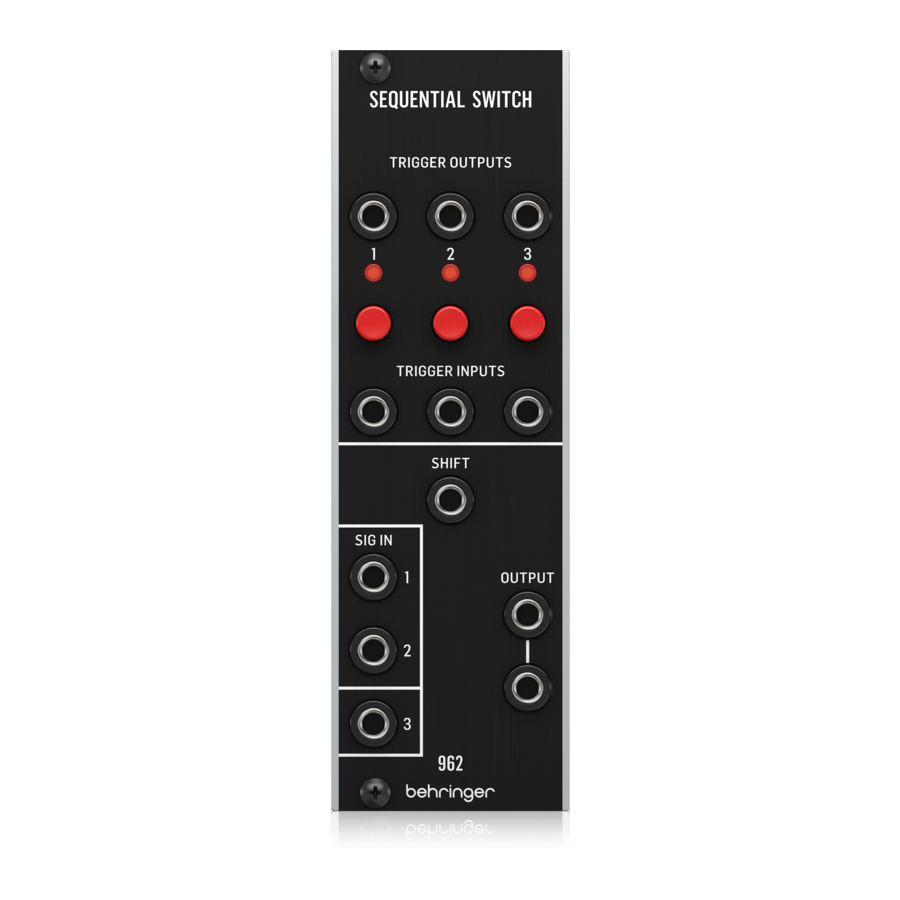

(EN) Controls
(1)
(2)
(3)
(4)
(5)
TRIGGER OUTPUTS – Sends a trigger output via 3.5 mm
(1)
TS cable whenever the respective stage is active.
The adjacent LED will light to indicate an active stage.
TRIGGER BUTTON – Allows a stage to be
(2)
manually selected.
TRIGGER INPUTS – Triggers from other modules can be
(3)
connected via 3.5 mm TS cable to activate specific stages.
SHIFT – A trigger can be connected via 3.5 mm TS cable
(4)
to activate the next stage in the sequence. When using
the 962 to create a 16 or 24-step sequencer with the 960,
this jack is usually connected to the OUT jack of the 960's
first stage.
SIG IN – One of the inputs is routed to the OUTPUT jacks
(5)
depending on which stage is active. If all 3 inputs are used,
the module will shift in 3 stages. If only the first
2 inputs are used, the shift will alternate between stages
1 and 2. These inputs are usually connected to the 960's
output section.
OUTPUT – Send the output to another module via
(6)
3.5 mm TS cable.
V 2.0
Power Connection
The module comes with the required power cable for connecting
to a standard Eurorack power supply system. Follow these
steps to connect power to the module. It is easier to make these
connections before the module has been mounted into a
rack case.
1. Turn the power supply or rack case power off and
disconnect the power cable.
2. Insert the 16-pin connector on the power cable into the
socket on the power supply or rack case. The connector has
a tab that will align with the gap in the socket, so it cannot
be inserted incorrectly. If the power supply does not have
a keyed socket, be sure to orient pin 1 (-12 V) with the red
stripe on the cable.
3. Insert the 10-pin connector into the socket on the back of
the module. The connector has a tab that will align with the
socket for correct orientation.
(6)
4. After both ends of the power cable have been securely
attached, you may mount the module in a case and
turn on the power supply.
Installation
The necessary screws are included with the module for mounting
in a Eurorack case. Connect the power cable before mounting.
Depending on the rack case, there may be a series of fixed holes
spaced 2 HP apart along the length of the case, or a track that
allows individual threaded plates to slide along the length of the
case. The free-moving threaded plates allow precise positioning
of the module, but each plate should be positioned in the
approximate relation to the mounting holes in your module
before attaching the screws.
Hold the module against the Eurorack rails so that each of the
mounting holes are aligned with a threaded rail or threaded
plate. Attach the screws part way to start, which will allow small
adjustments to the positioning while you get them all aligned.
After the final position has been established, tighten the
screws down.
