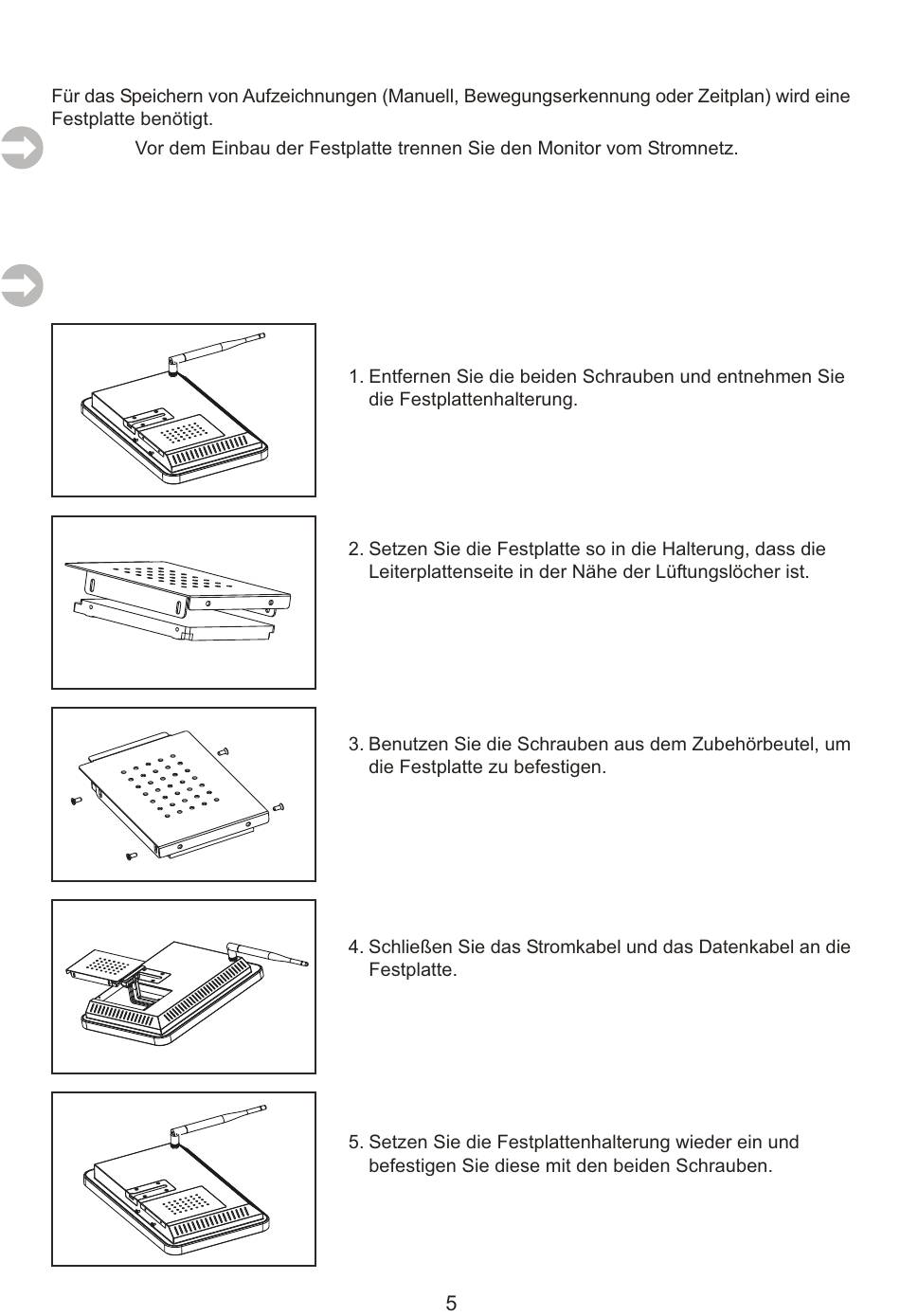

Installation einer Festplatte

Die Festplatte ist nicht im Lieferumfang enthalten.
Hinweis:
Installation of a hard disk
A hard disk is required for saving recordings (manual, motion detection or schedule).
The hard disk is not included.
Note: Before installing the hard disk, disconnect the monitor from the power supply.
(2.5“ SATA Festplatte, max. 8TB)
(2.5" SATA hard disk, max. 8TB)
1. Remove the two screws and take out the hard disk bracket.
2. place the hard disk in the holder so that the PCB side is
near the ventilation holes.
3. use the screws from the accessory bag to fix the hard disk.
4. Connect the power cable and the data cable to the hard
disk.
5. Replace the HDD bracket and secure it with the two screws.
