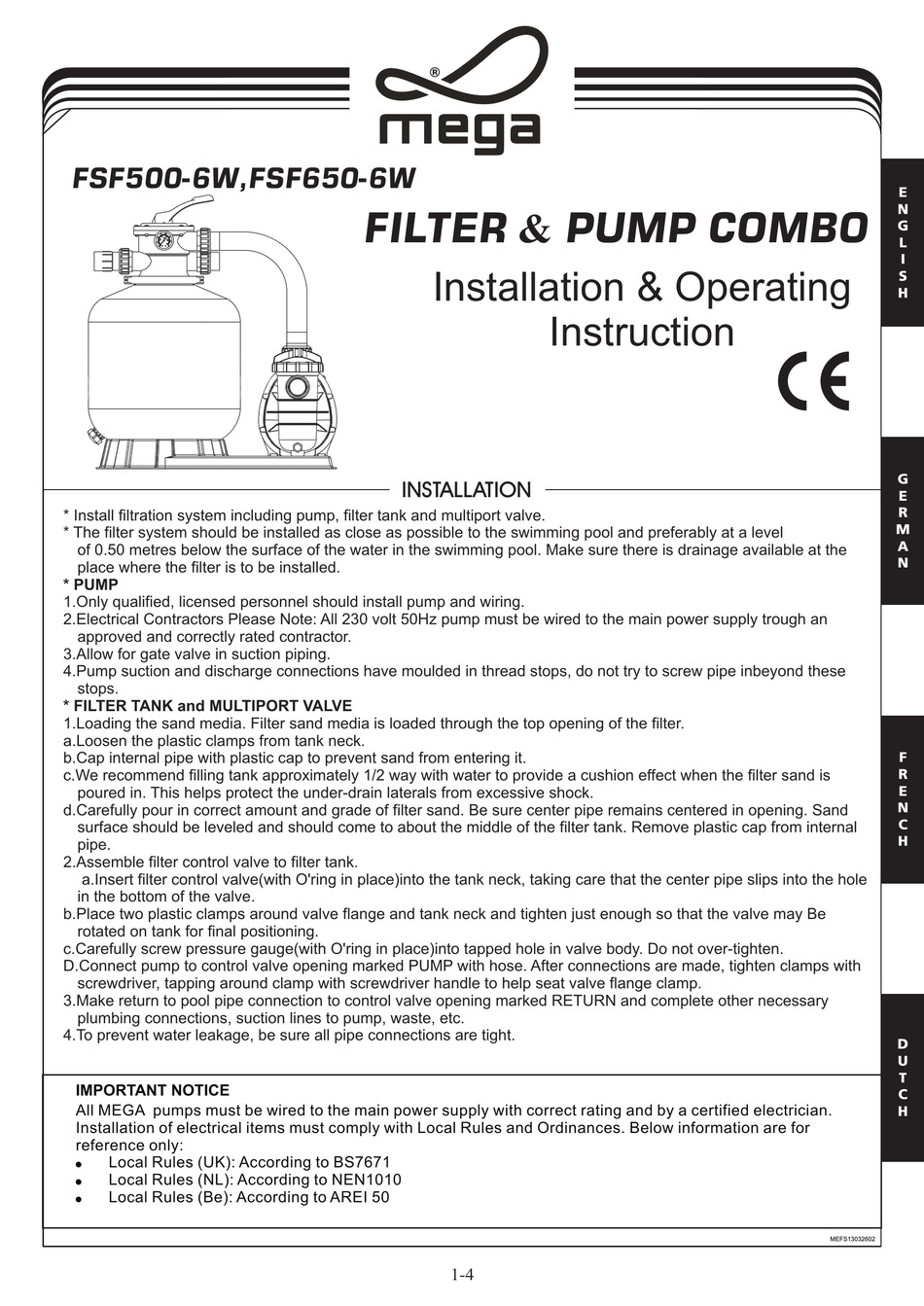

FSF500-6W,FSF650-6W
* Install filtration system including pump, filter tank and multiport valve.
* The filter system should be installed as close as possible to the swimming pool and preferably at a level
of 0.50 metres below the surface of the water in the swimming pool. Make sure there is drainage available at the
place where the filter is to be installed.
* PUMP
1.Only qualified, licensed personnel should install pump and wiring.
2.Electrical Contractors Please Note: All 230 volt 50Hz pump must be wired to the main power supply trough an
approved and correctly rated contractor.
3.Allow for gate valve in suction piping.
4.Pump suction and discharge connections have moulded in thread stops, do not try to screw pipe inbeyond these
stops.
* FILTER TANK and MULTIPORT VALVE
1.Loading the sand media. Filter sand media is loaded through the top opening of the filter.
a.Loosen the plastic clamps from tank neck.
b.Cap internal pipe with plastic cap to prevent sand from entering it.
c.We recommend filling tank approximately 1/2 way with water to provide a cushion effect when the filter sand is
poured in. This helps protect the under-drain laterals from excessive shock.
d.Carefully pour in correct amount and grade of filter sand. Be sure center pipe remains centered in opening. Sand
surface should be leveled and should come to about the middle of the filter tank. Remove plastic cap from internal
pipe.
2.Assemble filter control valve to filter tank.
a.Insert filter control valve(with O'ring in place)into the tank neck, taking care that the center pipe slips into the hole
in the bottom of the valve.
b.Place two plastic clamps around valve flange and tank neck and tighten just enough so that the valve may Be
rotated on tank for final positioning.
c.Carefully screw pressure gauge(with O'ring in place)into tapped hole in valve body. Do not over-tighten.
D.Connect pump to control valve opening marked PUMP with hose. After connections are made, tighten clamps with
screwdriver, tapping around clamp with screwdriver handle to help seat valve flange clamp.
3.Make return to pool pipe connection to control valve opening marked RETURN and complete other necessary
plumbing connections, suction lines to pump, waste, etc.
4.To prevent water leakage, be sure all pipe connections are tight.
IMPORTANT NOTICE
All MEGA pumps must be wired to the
Installation of electrical items must comply with Local Rules and Ordinances. Below information are for
reference only:
Local Rules (UK): According to BS7671
!
Local Rules (NL): According to NEN1010
!
Local Rules (Be): According to AREI 50
!
FILTER & PUMP COMBO
Installation & Operating
INSTALLATION
main power supply with correct rating and by a certified electrician.
1-4
Instruction
E
N
G
L
I
S
H
G
E
R
M
A
N
F
R
E
N
C
H
D
U
T
C
H
MEFS13032602
loading

Inhaltszusammenfassung für Mega FSF500-6W

  • Seite 5: Installation

    4. Um Wasserlecks zu verhindern, stellen Sie sicher, dass alle Rohranschlüsse dicht sind. WICHTIGER HINWEIS Alle MEGA-Pumpen müssen durch einen zertifizierten Elektriker mit der Hauptstromversorgung mit korrekten Nennwerten verbunden werden. Die Installation der elektrischen Geräte muss den örtlichen Regeln und Verordnungen entsprechen.
  • Seite 6 88280105 1,5“ seitlich montiertes Ventil 89280101 1,5" Verbindung mit Sichtscheibe, O-Ring 06011029 Öldruckmesser mit O-Ring (40 Psi) 01111048 Anschluss für Druckmesser/Stopfen 89280102 1,5" Verbindungssatz mit O-Ring 89032302 FSF500-6W-Plastikschlauch mit Mutter 89032402 FSF650-6W-Plastikschlauch mit Mutter 02011104 O-Ring für Pumpe 08030003 FSF500-6W-Pumpe (SC100) 08030004 FSF650-6W-Pumpe (SC150) 89032001 Pumpenmontageschraube 01181052 Befestigung für Filterbasis...
  • Seite 7 SC Pumpenersatzteile Schlüssel Schlüssel Teil-Nr. Produktbeschreibung Teil-Nr. Produktbeschreibung -Nr. -Nr. 01041023 TransparenterDeckel 04015001 3/4"mechanische Dichtung 02011077 O-Ring für Deckel 02011089 O-Ring für Flansch 89021701 Korb mit Griff 01111008 SC-Pumpenflansch 89021702 1,5“-Verbindung 01021014 Überwurfmutter für Pumpenmotor 89021703 Ablaufstopfen mit O-Ring 02011096 Motorschlinge 01111006 SC Pump Body 89021705 Motor SC050(230V/50HZ) 02011105 O-Ring für Diffusor...
  • Seite 8 EM-MV40B VENTILERSATZTEILE Ventilposition Funktion FILTER (FILTER) Normale Filterung und Absaugung BACKWASH (RÜCKSPÜLEN) Reinigung des Filters durch Umkehrung des Flusses RINSE (SPÜLEN) Wird nach dem Rückspülen verwendet, um Verunreinigungen aus dem Ventil zu spülen WASTE (ABWASSER) Umgeht den Filter, wird zum Absaugen ins Abwasser oder Senken des Wasserpegels verwendet RECIRCULATE Umgeht den Filter, um Wasser im Kreislauf an den Pool zu leiten (REZIRKULIEREN)
