CMS 1201SW
Introduction
Thank you for purchasing this Tannoy product. The CMS 1201SW is a powerful large format in-ceiling subwoofer loudspeaker device conceived, designed and built
to complement Tannoy's existing class-leading CMS range, or any full range system requiring extended bass response. Intended for systems utilizing an external
active crossover and separate amplifier channel for the subwoofers, the CMS 1201SW features a high power handling 12" (300 mm) bass driver featuring a 3" copper
sandwich voice coil for low power compression and triple aluminium demodulating rings for ultra-low distortion.
The custom-engineered powder coated steel back-can has been designed to cater for all conceivable installation possibilities, making the CMS 1201SW
extremely versatile. The internally-dampened 79 litre (2.8 cubic feet) back-can provides exceptional LF performance on a par with conventional wooden
enclosure loudspeakers. Steel mounting lugs allow for fitting to a Unistrut roof rail system or for suspension via 4 top-mounted eye bolts. Alternatively, the design
caters for a single point hang via M10 or 3/8 UNC screwed rod. Connection is simple via terminal barrier strips inside the can, easily accessible via 20 mm and 29 mm
conduit knockouts on all 5 sides of the can.
Unpacking and Visual Checks
Every Tannoy product and accessory is carefully inspected before packing. After unpacking, please inspect your product to make sure no damage has
occurred in transit. In the unlikely event of any damage, would you please notify your dealer immediately and retain your shipping carton, as your dealer may
ask you to return the faulty unit to him for inspection.
Product Overview
The CMS 1201SW comprises three discrete components that are ordered separately under different part numbers.
• A loudspeaker assembly that includes a drive unit mounted on a ported steel baffle
• A steel back-can with multiple mounting points
• A grille assembly with its moulded bevel cover
Installation Guide
Back-can
The custom engineered powder coated steel back-can has been designed to cater for all conceivable installation possibilities making the CMS 1201SW
extremely versatile. Internally dampened with particle board, the addition of the back-can provides exceptional low frequency performance.

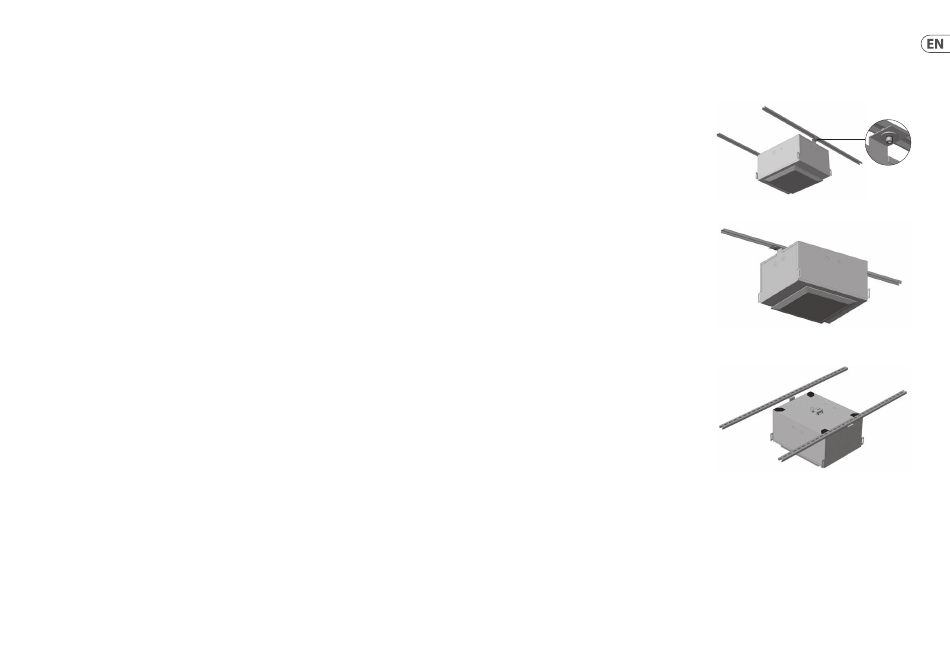

Mounted using Unistrut roof rail system
Steel mounting lugs allow for fitting to a Unistrut oof rail system in a variety of
configurations both diectly or via secondary prefixed coss struts.
Screw at fixing point should use a large series washer to help spead the load.
13
Quick Start Guide
Speaker mounted to a single rail
Back-can mounted between rails
