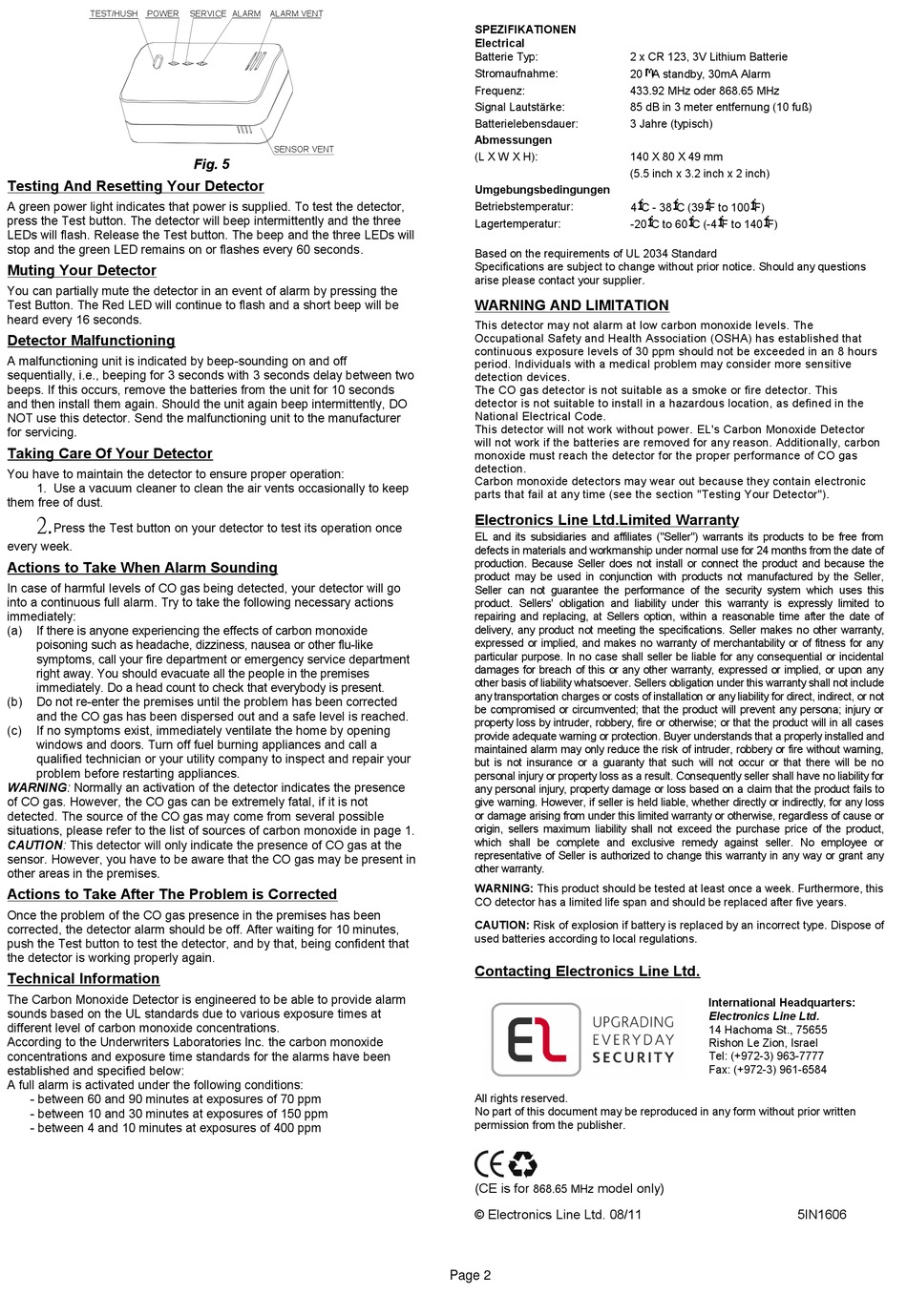

Electronics Line EL-4764 Technische Daten Seite 2

TEST/HUSH POWER
Testing And Resetting Your Detector
A green power light indicates that power is supplied. To test the detector,
press the Test button. The detector will beep intermittently and the three
LEDs will flash. Release the Test button. The beep and the three LEDs will
stop and the green LED remains on or flashes every 60 seconds.
Muting Your Detector
You can partially mute the detector in an event of alarm by pressing the
Test Button. The Red LED will continue to flash and a short beep will be
heard every 16 seconds.
Detector Malfunctioning
A malfunctioning unit is indicated by beep-sounding on and off
sequentially, i.e., beeping for 3 seconds with 3 seconds delay between two
beeps. If this occurs, remove the batteries from the unit for 10 seconds
and then install them again. Should the unit again beep intermittently, DO
NOT use this detector. Send the malfunctioning unit to the manufacturer
for servicing.
Taking Care Of Your Detector
You have to maintain the detector to ensure proper operation:
1. Use a vacuum cleaner to clean the air vents occasionally to keep
them free of dust.
2.
Press the Test button on your detector to test its operation once
every week.
Actions to Take When Alarm Sounding
In case of harmful levels of CO gas being detected, your detector will go
into a continuous full alarm. Try to take the following necessary actions
immediately:
(a) If there is anyone experiencing the effects of carbon monoxide
poisoning such as headache, dizziness, nausea or other flu-like
symptoms, call your fire department or emergency service department
right away. You should evacuate all the people in the premises
immediately. Do a head count to check that everybody is present.
(b) Do not re-enter the premises until the problem has been corrected
and the CO gas has been dispersed out and a safe level is reached.
(c) If no symptoms exist, immediately ventilate the home by opening
windows and doors. Turn off fuel burning appliances and call a
qualified technician or your utility company to inspect and repair your
problem before restarting appliances.
WARNING: Normally an activation of the detector indicates the presence
of CO gas. However, the CO gas can be extremely fatal, if it is not
detected. The source of the CO gas may come from several possible
situations, please refer to the list of sources of carbon monoxide in page 1.
CAUTION: This detector will only indicate the presence of CO gas at the
sensor. However, you have to be aware that the CO gas may be present in
other areas in the premises.
Actions to Take After The Problem is Corrected
Once the problem of the CO gas presence in the premises has been
corrected, the detector alarm should be off. After waiting for 10 minutes,
push the Test button to test the detector, and by that, being confident that
the detector is working properly again.
Technical Information
The Carbon Monoxide Detector is engineered to be able to provide alarm
sounds based on the UL standards due to various exposure times at
different level of carbon monoxide concentrations.
According to the Underwriters Laboratories Inc. the carbon monoxide
concentrations and exposure time standards for the alarms have been
established and specified below:
A full alarm is activated under the following conditions:
- between 60 and 90 minutes at exposures of 70 ppm
- between 10 and 30 minutes at exposures of 150 ppm
- between 4 and 10 minutes at exposures of 400 ppm
SERVICE ALARM ALARM VENT
SENSOR VENT
Fig. 5
SPEZIFIKATIONEN
Electrical
Batterie Typ:
Stromaufnahme:
Frequenz:
Signal Lautstärke:
Batterielebensdauer:
Abmessungen
(L X W X H):
Umgebungsbedingungen
Betriebstemperatur:
Lagertemperatur:
Based on the requirements of UL 2034 Standard
Specifications are subject to change without prior notice. Should any questions
arise please contact your supplier.
WARNING AND LIMITATION
This detector may not alarm at low carbon monoxide levels. The
Occupational Safety and Health Association (OSHA) has established that
continuous exposure levels of 30 ppm should not be exceeded in an 8 hours
period. Individuals with a medical problem may consider more sensitive
detection devices.
The CO gas detector is not suitable as a smoke or fire detector. This
detector is not suitable to install in a hazardous location, as defined in the
National Electrical Code.
This detector will not work without power. EL's Carbon Monoxide Detector
will not work if the batteries are removed for any reason. Additionally, carbon
monoxide must reach the detector for the proper performance of CO gas
detection.
Carbon monoxide detectors may wear out because they contain electronic
parts that fail at any time (see the section "Testing Your Detector").
Electronics Line Ltd.Limited Warranty
EL and its subsidiaries and affiliates ("Seller") warrants its products to be free from
defects in materials and workmanship under normal use for 24 months from the date of
production. Because Seller does not install or connect the product and because the
product may be used in conjunction with products not manufactured by the Seller,
Seller can not guarantee the performance of the security system which uses this
product. Sellers' obligation and liability under this warranty is expressly limited to
repairing and replacing, at Sellers option, within a reasonable time after the date of
delivery, any product not meeting the specifications. Seller makes no other warranty,
expressed or implied, and makes no warranty of merchantability or of fitness for any
particular purpose. In no case shall seller be liable for any consequential or incidental
damages for breach of this or any other warranty, expressed or implied, or upon any
other basis of liability whatsoever. Sellers obligation under this warranty shall not include
any transportation charges or costs of installation or any liability for direct, indirect, or not
be compromised or circumvented; that the product will prevent any persona; injury or
property loss by intruder, robbery, fire or otherwise; or that the product will in all cases
provide adequate warning or protection. Buyer understands that a properly installed and
maintained alarm may only reduce the risk of intruder, robbery or fire without warning,
but is not insurance or a guaranty that such will not occur or that there will be no
personal injury or property loss as a result. Consequently seller shall have no liability for
any personal injury, property damage or loss based on a claim that the product fails to
give warning. However, if seller is held liable, whether directly or indirectly, for any loss
or damage arising from under this limited warranty or otherwise, regardless of cause or
origin, sellers maximum liability shall not exceed the purchase price of the product,
which shall be complete and exclusive remedy against seller. No employee or
representative of Seller is authorized to change this warranty in any way or grant any
other warranty.
WARNING: This product should be tested at least once a week. Furthermore, this
CO detector has a limited life span and should be replaced after five years.
CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of
used batteries according to local regulations.
Contacting Electronics Line Ltd.
All rights reserved.
No part of this document may be reproduced in any form without prior written
permission from the publisher.
(CE is for model only)
868.65 MHz
© Electronics Line Ltd. 08/11
Page 2
2 x CR 123, 3V Lithium Batterie
20  A standby, 30mA Alarm
433.92 MHz oder 868.65 MHz
85 dB in 3 meter entfernung (10 fuß)
3 Jahre (typisch)
140 X 80 X 49 mm
(5.5 inch x 3.2 inch x 2 inch)
4 C - 38 C (39 F to 100 F)
-20 C to 60 C (-4 F to 140 F)
International Headquarters:
Electronics Line Ltd.
14 Hachoma St., 75655
Rishon Le Zion, Israel
Tel: (+972-3) 963-7777
Fax: (+972-3) 961-6584
5IN1606
