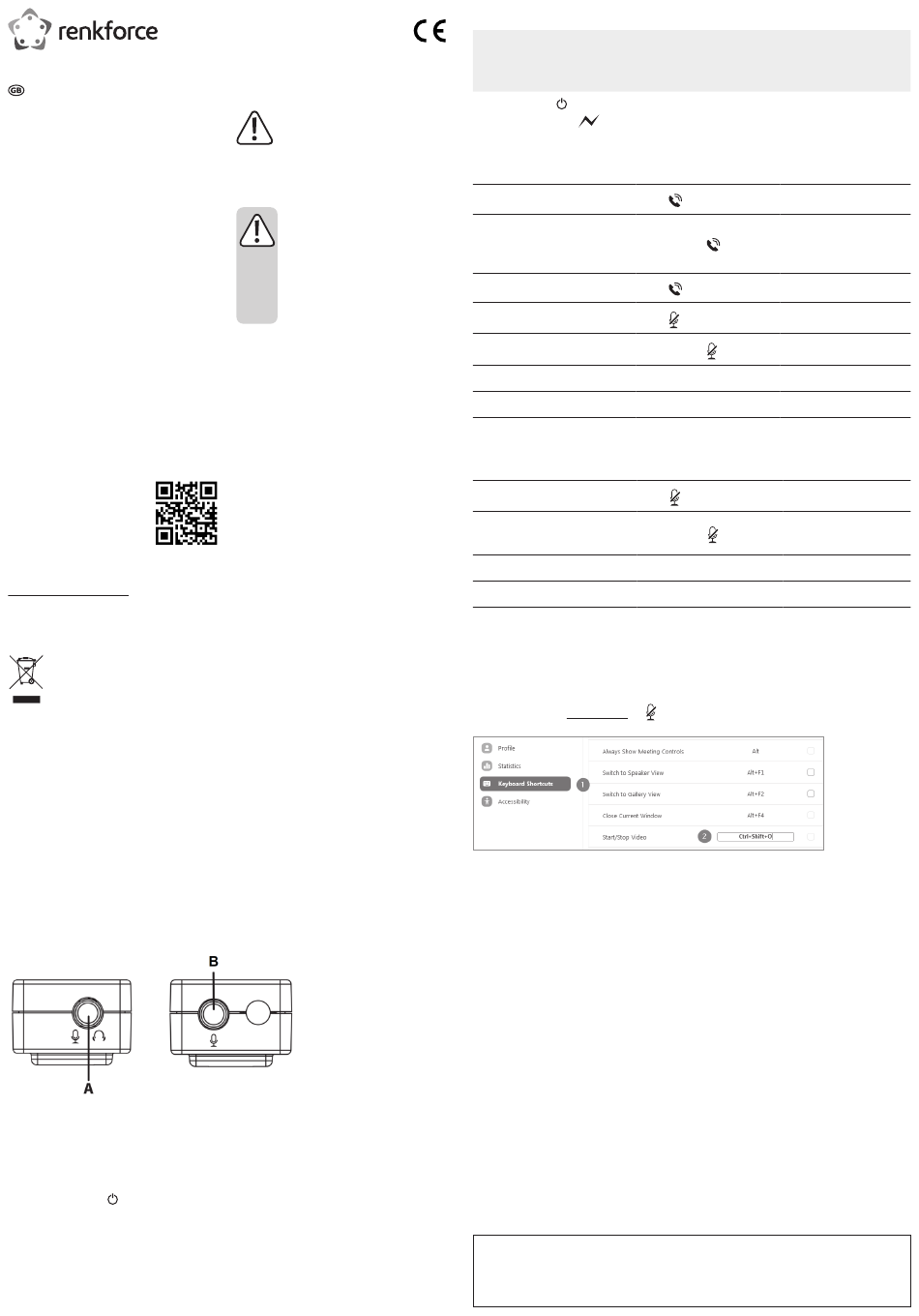

Operating Instructions
RF-HSA-200
Headset Digital Adapter
Item No. 2290789
Intended use
Use the product to control Microsoft Teams,
Skype for Business and Zoom video calls on the
Windows operating system.
®
It is intended for indoor use only. Do not use it out-
doors.
Contact with moisture must be avoided under all
circumstances.
For safety and approval purposes, you must not
rebuild and/or modify this product. If you use the
product for purposes other than those described
above, the product may be damaged. In addition,
improper use can result in hazards.
Read the instructions carefully and store them in
a safe place. Make this product available to third
parties only together with its operating instructions.
This product complies with the statutory national
and European requirements. All company names
and product names are trademarks of their respec-
tive owners. All rights reserved.
Delivery content
• Adapter
• Operating instructions
Up-to-date operating instructions
Download the latest operating instructions at
www.conrad.com/downloads or scan the QR code
shown. Follow the instructions on the website.
Disposal
Electronic devices are recyclable
waste and must not be disposed of in
the household waste. At the end of its
service life, dispose of the product in
accordance with applicable regulatory
guidelines.
You thus fulfill your statutory obligations and con-
tribute to the protection of the environment.
Care and cleaning
• Disconnect the product from the power supply
before each cleaning.
• Do not use any aggressive cleaning agents,
rubbing alcohol or other chemical solutions as
they can cause damage to the housing and
malfunctioning.
• Clean the product with a dry, fibre-free cloth.
Setup
1. Connect headphone and microphone:
- Headphone with integrated microphone: connect to port [ A ].
- Microphone only: connect to port [ B ] (mono only).
- Headphone only: connect to port [ A ].
2. Connect the USB-A plug to a USB socket on your computer.
The power indicator lights up when the computer is turned on.
Explanation of symbols
The symbol with the exclamation mark
in the triangle is used to indicate impor-
tant information in these operating in-
structions. Always read this information
carefully.
Safety instructions
Read the operating instructions
carefully and especially observe the
safety information. If you do not fol-
low the safety instructions and infor-
mation on proper handling in this
manual, we assume no liability for
any resulting personal injury or
damage to property. Such cases will
invalidate the warranty/guarantee.
a) General information
• The device is not a toy. Keep it out of the reach
of children and pets.
• Do not leave packaging material lying around
carelessly. This may become dangerous playing
material for children.
• Protect the appliance from extreme tempera-
tures, direct sunlight, strong jolts, high humidity,
moisture, flammable gases, steam and solvents.
• Do not place the product under any mechani-
cal stress.
• Please handle the product carefully. Jolts, im-
pacts or a fall even from a low height can dam-
age the product.
• Maintenance, modifications and repairs must
only be completed by a technician or an author-
ised repair centre.
• If you have questions which remain unanswered
by these operating instructions, contact our
technical support service or other technical
personnel.
b) Sound
• Do not listen to excessively loud sound over an
extended period of time. This may damage your
hearing.
c) Connected devices
• Also observe the safety and operating instruc-
tions of any other devices which are connected
to the product.
Operation
Important:
Depending on your system setup, system configuration and hardware availability, your setup may
not support all functions.
The power indicator lights up when the computer is turned on.
When there is activity the lights up (red/blue).
a) Microsoft Teams and Skype for Business
Function Operation
Accept/end a call
Press
Hold/resume a call
Press and hold
(when holding, microphone and
camera are off)
Reject an incoming call
Press
Turn microphone on/off
Press
Turn webcam on/off
Press and hold
Press +
Increase volume
Decrease volume Press –
b) Zoom
Function Operation
Turn microphone on/off
Press
Turn webcam on/off
Press and hold
(Enable in Zoom settings, see (*))
Increase volume Press +
Decrease volume Press –
(*) To use the webcam on/off function, enable it in the Zoom settings:
1. Ensure the adapter is connected to your computer.
2. Take note of the below screenshot and enable the webcam function:
- Open the Zoom settings menu and go to the Keyboard Shortcuts tab (1).
- Under Start/Stop Video, click on the Shortcut field (2).
- On the adapter, press and hold the
function is enabled.
Technical data
Input voltage / current ........................... 5 V/DC, 500 mA via USB
System requirements ............................ Windows
Headphone/microphone jack ................ 3.5 mm
Operating conditions ............................. 0 to +70 ºC, 10 – 90 % RH (non-condensing)
Storage conditions ................................ -20 to +85 ºC, 10 – 90 % RH (non-condensing)
Dimensions ........................................... 21.2 x 50 x 13 mm (W x H x D )
Weight .................................................. approx. 20.5 g
This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com). All rights in-
cluding translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in electronic data
processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited. This publication
represent the technical status at the time of printing.
Copyright 2020 by Conrad Electronic SE.
Indicator light
2x
Off: red / On: green
key
key
Indicator light
Off: red / On: green
key
key
key. Wait for the shortcut to change into Ctrl + Shift + O. The
7 and higher
®
