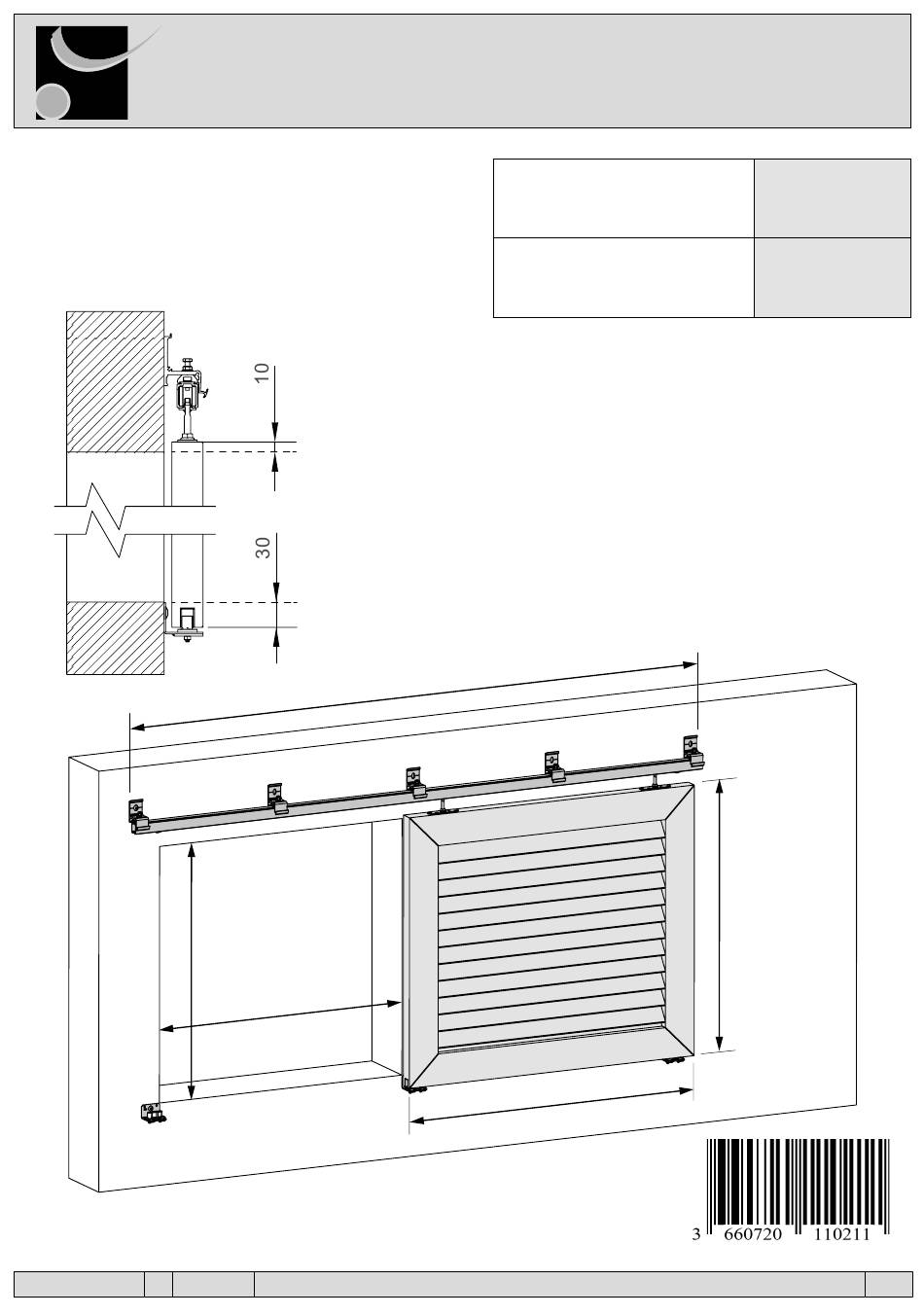

Mantion WINSLIDE R Montageanleitung
INSTRUCTIONS DE MONTAGE
MONTAGEANLEITUNG
INSTRUCTIONS FOR ASSEMBLY
INSTRUCCIONES DE MONTAJE
VOLETS COULISSANTS MANUELS : 1 PANNEAU
SCHIEBEFENSTERLÄDEN : 1 FLÜGEL
SLIDING SHUTTERS – 1 PANEL
MALLORQUINAS CORREDERAS : 1 HOJA
NM_WINSL_032 A 04-2019 MANTION SAS
Hb
Lb
WINSLIDE R
Poids maximal des panneaux
Maximales Gewicht
Maximum weight
Peso máximo por hoja
Epaisseur des panneaux
Ladendicke
Shutter thickness
Espesor de las hojas
Lr = 2 x Lb + 270 mm
Hp = Hb + 40 mm
Lp = Lb + 140 mm
Lb maxi = 0.86 m
Lr
Lp
- 25000 Besançon - Tel +33 3 81 50 56 77 - Fax +33 3 81 85 38 79 - www.mantion.com
NM_WINSL_032
Hp
80 Kg
20 - 40 mm
1/6
