dallmeier VMC Inbetriebnahme

Commissioning

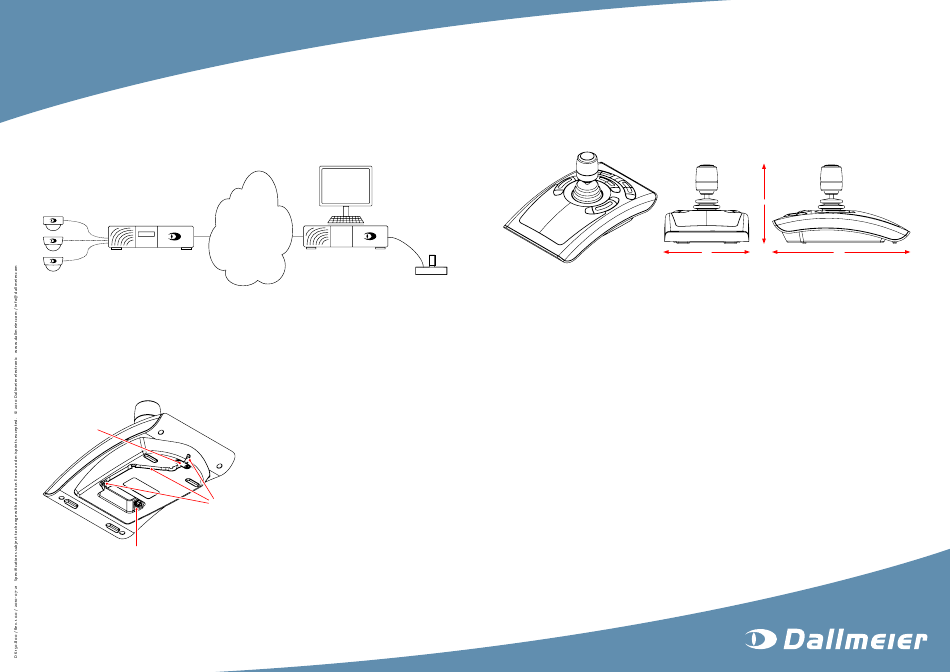

Application example
Analogue cameras
IP cameras
Recorder
Connection and Commissioning
A
B
LAN
Workstation / PView 7
Connection
►
Open the cable interlock (A).
►
Connect the USB cable to the USB socket (B).
►
Insert the USB cable into the cable conduit (C).
►
Close the cable interlock (A).
The VMC Joystick is ready for commissioning.
Commissioning
►
Connect the VMC Joystick to the PC / workstation
C
(hot-plug).
The operating system detects the new device automatically.
►
Note the messages from the operating system.
►
Follow the instructions given by the operating system.
►
Finish the installation of the USB driver.
The VMC Joystick is ready for operation with PView 7.
Note the corresponding PView 7 and VMC Joystick documen-
tations.
Dimensions
USB
Joystick
Unit in mm
Technical Data
The following technical data was valid at the time of the document compilation.
Refer to www.dallmeier.com for possible updates.
Type
Control protocols
Baud rate
Interface
Power supply
Power consumption
Operating temperature
Humidity
Dimensions (W / H / D)
Weight
Approvals
Certifications
Safety instructions
►
Observe the ratings!
►
Do not open the device!
►
Avoid the intrusion of dirt and liquids!
VMC Joystick
128
138
Tri-axial
DCCP, Pelco D, Pelco P
2.4 up to 57.6 kbps
USB 2.0, type B
5 V DC (via USB)
Max. 2.5 W
+5 °C to +35 °C
10 – 70 % RH, non-condensing
Approx. 138 mm × 128 mm × 224 mm
Approx. 900 g
CE
DIN EN 50130-4
PTZ Control
224
