RESI-RC-CU1
-MB-R-T
RESI Informatik & Automation GmbH, Altenmarkt 29, A-8551 Wies, Austria, Tel: +43-316-262062-0, Fax: +43-316-262062-66, Email: help@RESI.cc URL: www.RESI.cc
IMPORTANT: Before you start with the installation of the product, read the attached IMPORTANT SECURITY NOTES very carefully and follow all the herein given information very accurate!
DIP SWITCH:
BUS:
Use all four DIP switches to change the bus settings for the
RS485 interface (1=ON, 0=OFF)
DIP 1+2+3+4 UnitID
0-0-0-0:
255
1-0-0-0:
1
0-1-0-0:
2
1-1-0-0:
3
0-0-1-0:
4
1-0-1-0:
5
0-1-1-0:
6
1-1-1-0:
7
0-0-0-1:
8
1-0-0-1:
9
0-1-0-1:
10
1-1-0-1:
11
0-0-1-1:
12
1-0-1-1:
13
0-1-1-1:
14
1-1-1-1:
UnitID, baud rate, parity and stop bits
from internal EEPROM configuration.
All other DIP switch positions:
9600Bd, no parity, 8 data bits, 1 stop bit
NOTE:
After changing the DIP switch, the device reboots automatically.
So there is no voltage off/voltage on cycle necessary.
After the restart, all LEDs are briefly on to indicate the restart sequence.
CLAMPS:
L+,A+,B-,M-
Power supply+RS485 ASCII or MODBUS/RTU interface:
L+: 12-48 V=
A+: RS485 DATA+ signal
B-: RS485 DATA- signal
M-: ground+RS485 ground

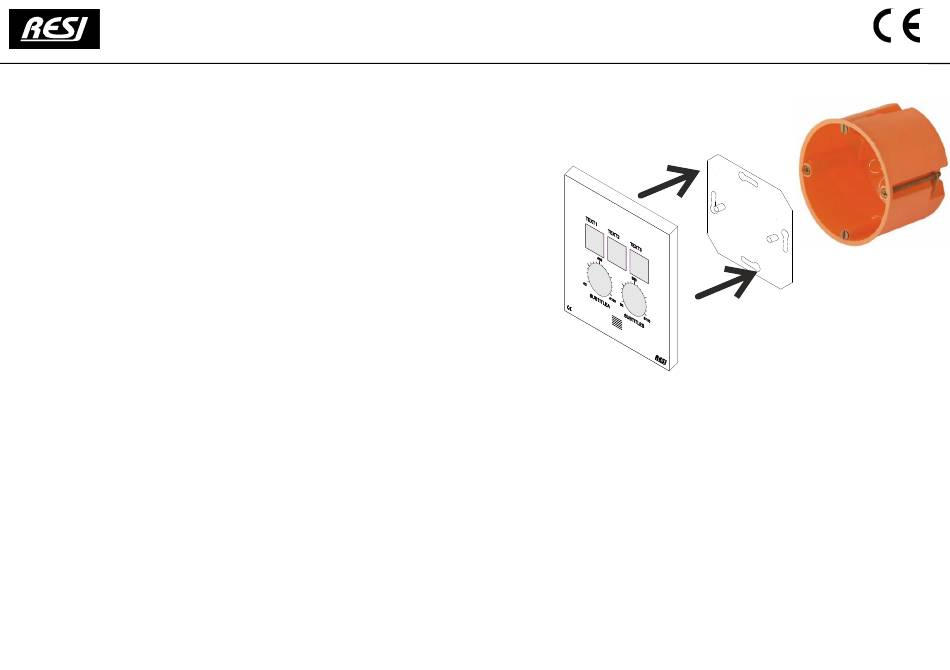

Assembly Instructions
1. Clamp your cables to the removable plugs
2. Insert the plugs into the electronics at the back
3. First screw the electronics into the flush-mounted box with the two screws on the side
4. Set the correct bus address using the DIP switch
5. CAREFULLY fasten the magnetically holding cover of the room controller!
6. DONE
Technical Information
Operating temperature
Storage temperature
Humidity
Power supply:
Power consumption:
Terminals
Dimensions (LxWxH)
Weight:
Housing:
Mounting:
Certification:
TARIC number:
EN
0..+60°C
-20..+80°C
25..90%r.H. not condensing
12-48V=
2.0W
Terminal type RM3.5
Cable cross section: max. 1.5 mm², max. 16AWG
Screw: M2
Tightening torque: max. 0.2Nm, max. 1.77 Lb-in
71x71x35
93g
Wall mounting
Installation into a 55mm flush-mounted socket
CE
8538 90 91
