Resi RC-CU2-MB-R-T Anleitung Seite 5

RESI-RC-CU2
-MB-R-T
RESI Informatik & Automation GmbH, Altenmarkt 29, A-8551 Wies, Austria, Tel: +43-316-262062-0, Fax: +43-316-262062-66, Email: help@RESI.cc URL: www.RESI.cc
IMPORTANT: Before you start with the installation of the product, read the attached IMPORTANT SECURITY NOTES very carefully and follow all the herein given information very accurate!
Description:
Active room control unit with 6 buttons with integrated LEDs, LED colors per button individually selectable: WHITE, RED, YELLOW, GREEN, BLUE, serial RS485 interface, MODBUS/RTU slave+ASCII text protocol,
integrated temperature sensor, DIP switch for configuration, individual design, flush-mounted socket, configuration and test of the module via our free LIBRE OFFICE (R) based configurator software, Size
(LxBxH):71x71x35, Weight:93g, Power supply:12-48V=, Power consumption:2.0W, Housing:Wall mounting, Mounting: Installation into a 55mm flush-mounted socket, Terminals:Terminal type RM3.5 , Cable cross
section: max. 1.5 mm², max. 16AWG, Screw: M2, Tightening torque: max. 0.2Nm, max. 1.77 Lb-in, Certification:CE, TARIC number:8538 90 91

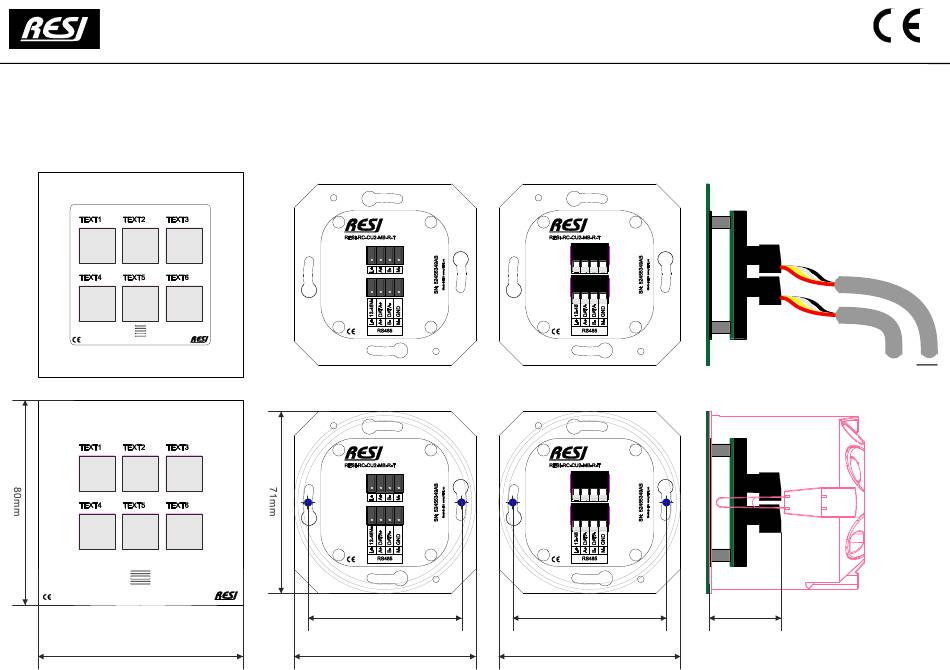

80mm
60mm
Ø 3mm
71mm
60mm 32mm
Ø 3mm
71mm
