260
(10 15/64")
1
2
3
100
100
(3 15/16")
(3 15/16")
Ø40
Ø40
(Ø1 37/64")
(Ø1 37/64")
UCS25
L. 1500 mm
(L. 4' - 11 1/16")
ROTAZIONE DELLA MANIGLIA
HANDLE ROTATION
1
Ø30
(Ø1 3/16")
MIL116
Ø18
(Ø45/64")
4
(5/32")
PRODOTTI CORRELATI / RELATED PRODUCTS
FRE74 - FRE202 - MIL91
MANUTENZIONE / MAINTENANCE
STOP
2
Questi disegni sono proprietà di CEADESIGN SRL s.u. pertanto non potranno
essere utilizzati e/o comunicati a terzi, anche in forma parziale, senza preventiva
autorizzazione. CEADESIGN SRL s.u. si riserva il diritto di apportare modifiche ai
disegni al fine di migliorare il prodotto.
3
CEADESIGN SRL s.u. has the property rights on these drawings, therefore they
cannot be used and/or transferred to third party, even in partial form, without any
prior authorization. Furthermore CEADESIGN SRL s.u. reserves the right to apply
any change to these drawings in order to upgrade the product.
_ REV10
CEA DESIGN STUDIO
MIL116/MILO360
AISI 316/L STAINLESS STEEL

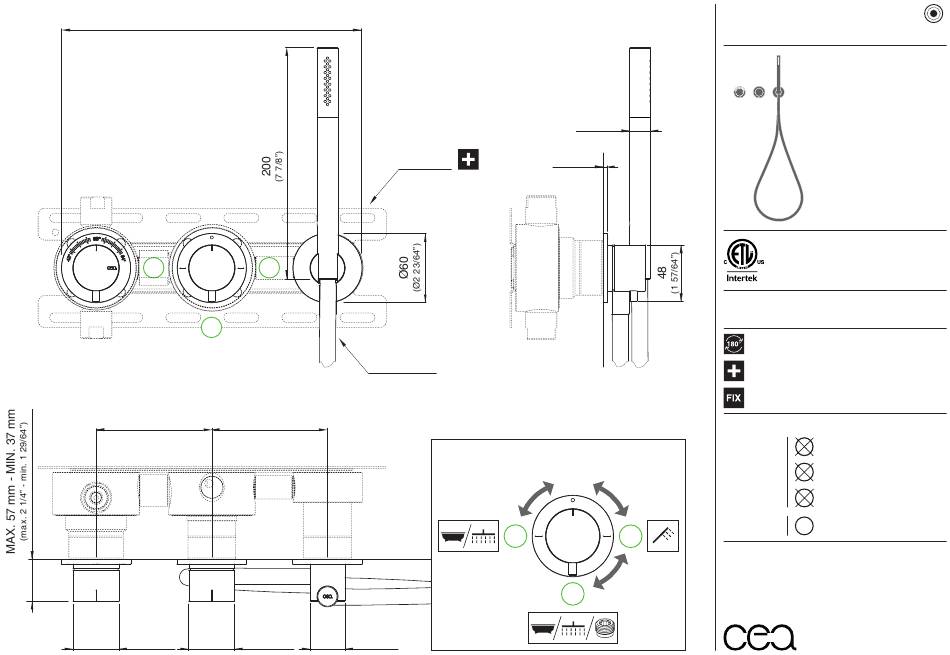

Gruppo miscelatore termostatico
a parete per vasca/doccia
con Acqua Stop System,
deviatore 2/3 vie e doccetta
Wall mounted thermostatic
mixer set for bathtub/shower
with Acqua Stop System, 2/3 way
diverter and hand shower
Possibilità di installazione a 180°
Installation possibility at 180°
Prodotto che necessita di parte incasso
Product that needs built-in part
Staffa ausiliaria per cartongesso / fibrogesso
Auxiliary bracket for plasterboard / fiber-board structures
acido clorico e muriatico
HCl
cloric and muriatic acid
acido fluoridrico
NON UTILIZZARE
HFl
DO NOT USE
hydrofluoric acid
ipoclorito di sodio
NaClO
chlorine bleach
sapone a PH neutro
UTILIZZARE
PH
7
TO USE
neutral PH soap
UCS
SYSTEM
