Inhaltszusammenfassung für UNION Instruments PURY250 S
Seite 1

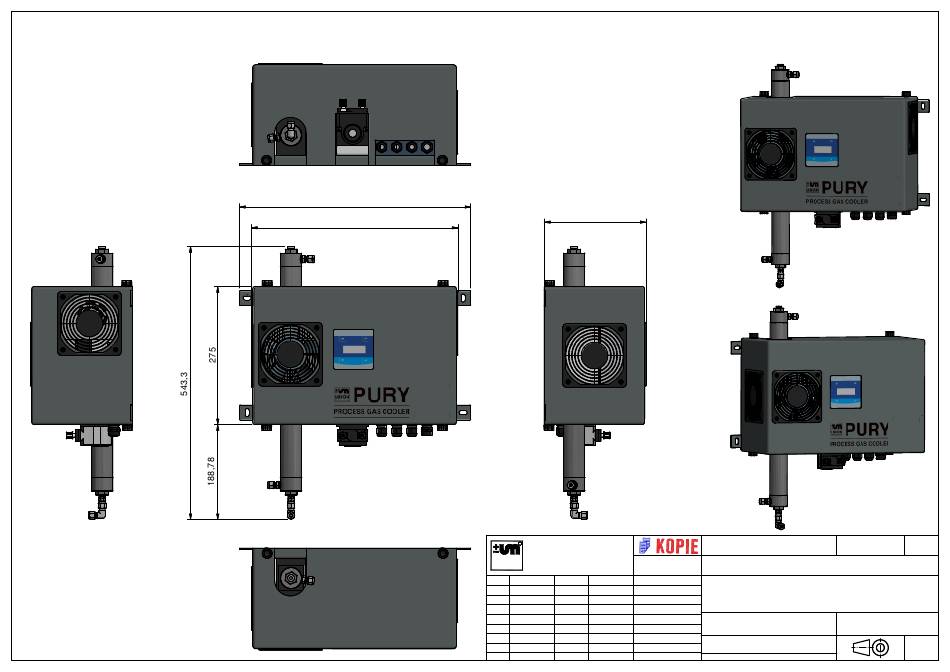

UNION Instruments GmbH Form type / Dokumententyp Material / Werkstoff Instruments Germany Gesamtzg. Description / Beschreibung Gas Cooler PURY250 S Gaskühler PURY250 S Part no. / Artikelnummer Tolerances / Freimaße: ISO 2768 - mK 03100199997 Workpiece edges / Werkstückkanten: ISO 13715 Spare part no.
Seite 2
UNION Instruments GmbH Form type / Dokumententyp Material / Werkstoff Instruments Germany Gesamtzg. Description / Beschreibung Gas Cooler PURY250 S Gaskühler PURY250 S Part no. / Artikelnummer Tolerances / Freimaße: ISO 2768 - mK 03100199997 Workpiece edges / Werkstückkanten: ISO 13715 Spare part no.
Seite 3
Form type / Dokumententyp Material / Werkstoff An allen Befestigungspunkten an einer Wand fixieren. Instruments Germany Gesamtzg. Description / Beschreibung Gas Cooler PURY250 S Gaskühler PURY250 S Part no. / Artikelnummer Tolerances / Freimaße: ISO 2768 - mK 03100199997 Workpiece edges / Werkstückkanten: ISO 13715 Spare part no.
Seite 4
View Z / Ansicht Z Description Connection type Description / Beschreibung Beschreibung Anschlusstyp Gas Cooler PURY250 S INPUT - Process Gas - Pressure: max. 0,75 bar 6 mm Stainless Steel Tube Fitting I1.1 Gaskühler PURY250 S EINGANG - Prozessgas - Druck: max. 0,75 bar...
Seite 5
UNION Instruments GmbH Form type / Dokumententyp Material / Werkstoff Instruments Germany Gesamtzg. Relay Contacts / Relaiskontakte Description / Beschreibung View Z / Ansicht Z Gas Cooler PURY250 S Conf. Description Range Connection Type Gaskühler PURY250 S Konf. Beschreibung Bereich Anschlusstyp X42.K1.11...
Seite 6
Compression Fitting - Step 1 Description / Beschreibung Klemmringverschraubung - Schritt 1 Gas Cooler PURY250 S Gaskühler PURY250 S * Top and Bottom Connector can be unscrewed to needed installation position up to 1 complete rotation (max. 360° ) Part no. / Artikelnummer Tolerances / Freimaße:...
