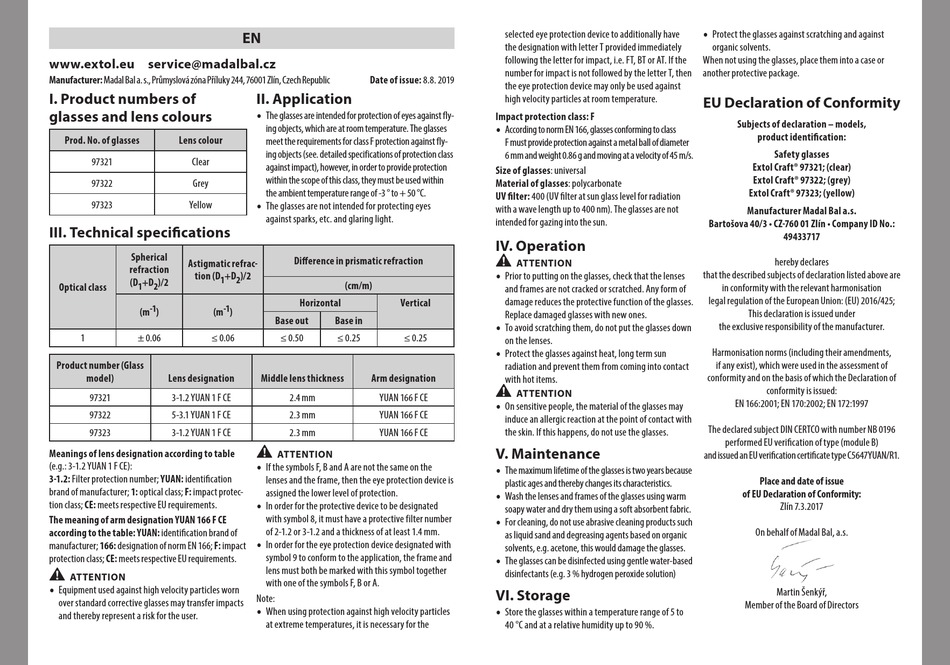

www.extol.eu service@madalbal.cz
Manufacturer: Madal Bal a. s., Průmyslová zóna Příluky 244, 76001 Zlín, Czech Republic
I. Product numbers of
glasses and lens colours
Prod. No. of glasses Lens colour
97321 Clear
97322 Grey
97323 Yellow
III. Technical specifications
Spherical
Astigmatic refrac-
refraction
tion (D +D
1
(D +D )/2
Optical class 1 2
-1 -1
(m ) (m
1 ± 0.06 ≤ 0.06
Product number (Glass
model) Lens designation
97321 3-1.2 YUAN 1 F CE
97322 5-3.1 YUAN 1 F CE
97323 3-1.2 YUAN 1 F CE
Meanings of lens designation according to table
(e.g.: 3-1.2 YUAN 1 F CE):
3-1.2: Filter protection number; YUAN: identification
brand of manufacturer; 1: optical class; F: impact protec-
tion class; CE: meets respective EU requirements.
The meaning of arm designation YUAN 166 F CE
according to the table: YUAN: identification brand of
manufacturer; 166: designation of norm EN 166; F: impact
protection class; CE: meets respective EU requirements.
•
ATTENTION
• Equipment used against high velocity particles worn
over standard corrective glasses may transfer impacts
and thereby represent a risk for the user.
EN
Date of issue: 8.8. 2019
II. Application
• The glasses are intended for protection of eyes against fly-
ing objects, which are at room temperature. The glasses
meet the requirements for class F protection against fly-
ing objects (see. detailed specifications of protection class
against impact), however, in order to provide protection
within the scope of this class, they must be used within
the ambient temperature range of -3 ° to + 50 °C.
• The glasses are not intended for protecting eyes
against sparks, etc. and glaring light.
Difference in prismatic refraction
)/2
2
(cm/m)
Horizontal Vertical
)
Base out Base in
≤ 0.50 ≤ 0.25 ≤ 0.25
Middle lens thickness Arm designation
2.4 mm YUAN 166 F CE
2.3 mm YUAN 166 F CE
2.3 mm YUAN 166 F CE
•
ATTENTION
• If the symbols F, B and A are not the same on the
lenses and the frame, then the eye protection device is
assigned the lower level of protection.
• In order for the protective device to be designated
with symbol 8, it must have a protective filter number
of 2-1.2 or 3-1.2 and a thickness of at least 1.4 mm.
• In order for the eye protection device designated with
symbol 9 to conform to the application, the frame and
lens must both be marked with this symbol together
with one of the symbols F, B or A.
Note:
• When using protection against high velocity particles
at extreme temperatures, it is necessary for the
selected eye protection device to additionally have
the designation with letter T provided immediately
following the letter for impact, i.e. FT, BT or AT. If the
number for impact is not followed by the letter T, then
the eye protection device may only be used against
high velocity particles at room temperature.
Impact protection class: F
• According to norm EN 166, glasses conforming to class
F must provide protection against a metal ball of diameter
6 mm and weight 0.86 g and moving at a velocity of 45 m/s.
Size of glasses: universal
Material of glasses: polycarbonate
UV filter: 400 (UV filter at sun glass level for radiation
with a wave length up to 400 nm). The glasses are not
intended for gazing into the sun.
IV. Operation
•
ATTENTION
• Prior to putting on the glasses, check that the lenses
and frames are not cracked or scratched. Any form of
damage reduces the protective function of the glasses.
Replace damaged glasses with new ones.
• To avoid scratching them, do not put the glasses down
on the lenses.
• Protect the glasses against heat, long term sun
radiation and prevent them from coming into contact
with hot items.
•
ATTENTION
• On sensitive people, the material of the glasses may
induce an allergic reaction at the point of contact with
the skin. If this happens, do not use the glasses.
V. Maintenance
• The maximum lifetime of the glasses is two years because
plastic ages and thereby changes its characteristics.
• Wash the lenses and frames of the glasses using warm
soapy water and dry them using a soft absorbent fabric.
• For cleaning, do not use abrasive cleaning products such
as liquid sand and degreasing agents based on organic
solvents, e.g. acetone, this would damage the glasses.
• The glasses can be disinfected using gentle water-based
disinfectants (e.g. 3 % hydrogen peroxide solution)
VI. Storage
• Store the glasses within a temperature range of 5 to
40 °C and at a relative humidity up to 90 %.
• Protect the glasses against scratching and against
organic solvents.
When not using the glasses, place them into a case or
another protective package.
EU Declaration of Conformity
Subjects of declaration – models,
product identification:
Safety glasses
Extol Craft® 97321; (clear)
Extol Craft® 97322; (grey)
Extol Craft® 97323; (yellow)
Manufacturer Madal Bal a.s.
Bartošova 40/3 • CZ-760 01 Zlín • Company ID No.:
49433717
hereby declares
that the described subjects of declaration listed above are
in conformity with the relevant harmonisation
legal regulation of the European Union: (EU) 2016/425;
This declaration is issued under
the exclusive responsibility of the manufacturer.
Harmonisation norms (including their amendments,
if any exist), which were used in the assessment of
conformity and on the basis of which the Declaration of
conformity is issued:
EN 166:2001; EN 170:2002; EN 172:1997
The declared subject DIN CERTCO with number NB 0196
performed EU verification of type (module B)
and issued an EU verification certificate type C5647YUAN/R1.
Place and date of issue
of EU Declaration of Conformity:
Zlín 7.3.2017
On behalf of Madal Bal, a.s.
Martin Šenkýř,
Member of the Board of Directors
