DC-DC Wandler 400 / 600 W
DC/DC Converter 400 / 600 W
Caution: Danger of Electric Shock
When operating the DC/DC converter, certain components of the device are dangerously energised. Therefore, it is mandatory to
de-energise the converter and protect it against switch-on before working with the converter. If these procedures are disregarded,
touching the electrical parts could result in death or serious injury.
Operating Hints and Installation
The installation of the power supply has to be executed by qualified personnel only and under consideration of the latest country-
specific standards and regulations.
The DC/DC converter is a built-in device and thus shall only be operated in a protecting cover which ensures the requirements as
regards touch protection and fire safety. The converter's input and output have to be connected via the prescribed connectors. The
DC/DC converter has to be mounted with 4 M3 screws. The device has to be switched-off via a suitable means outside of the power
supply. The DC/DC converter is maintenance-free and does not contain components which can be changed by the user. The user
has to respect the technical data and prescribed ambient temperatures.
Caution: Burn Hazard!
Depending on the ambient temperature and load condition of the converter, the case temperature can be very high, even after being
set to switch-off mode!
Fuse Protection
Due the complete encapsulation, the converter does not contain an internal fuse. Therefore, the prescribed fuses are mandatory for
device and line safety. Only fuses or circuit breakers respectively rated for DC current are allowed.
Cooling
The converter has to be mounted on a heat-dissipating surface. The mentioned temperature at the reference point on the base plate
shall not be exceeded and the mentioned necessary thermic resistance of the heat-dissipating surface has to be considered resp.;
see data sheet.
EMC
The converter has to be integrated into the EMC concept of the whole system via functional ground.
The functional ground can be connected on the determined fastening point.
In case of further questions or information, please do not hesitate contact us.
MTM Power
Tel.: +49-(0)36705-688 0 · Fax: +49-(0)36705-61049 · www.mtm-power.com · info@mtm-power.com

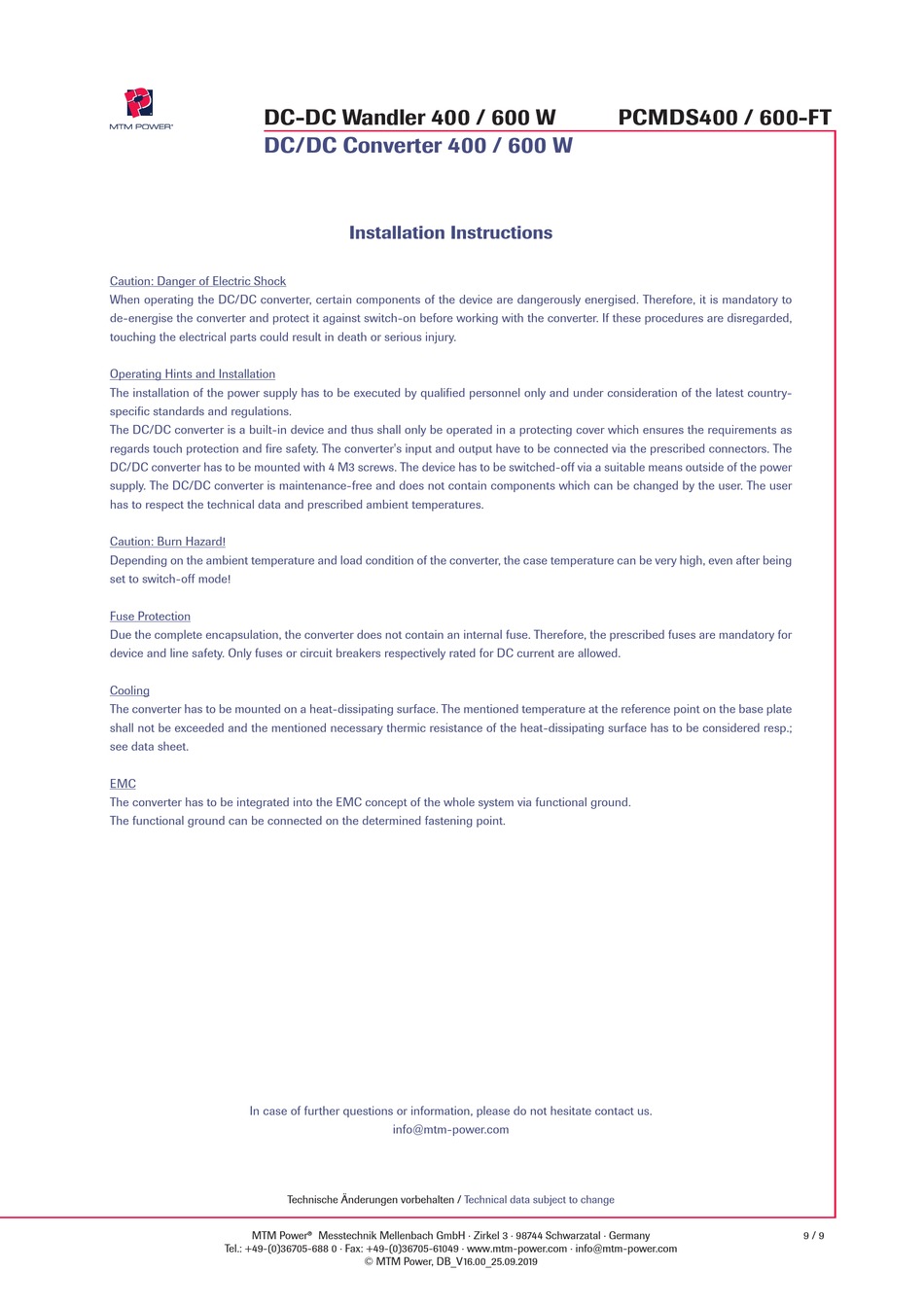

Installation Instructions
info@mtm-power.com
Technische Änderungen vorbehalten /
Messtechnik Mellenbach GmbH · Zirkel 3 · 98744 Schwarzatal · Germany
© MTM Power, DB_V16.00_25.09.2019
PCMDS400 / 600-FT
Technical data subject to change
9 / 9
